Country of Origin:
India
-
Depth:
117.6 mm
-
Dielectric Strength:
1500 V, 2000 V, 3000 V
-
Enclosure Material:
Metal
-
Height:
123.6 mm
-
Input Voltage:
...240 V, ...375 V
-
Net Weight:
0.8 kg
-
Output Voltage:
48 V
-
Weight:
0.8 kg
-
Width:
60 mm

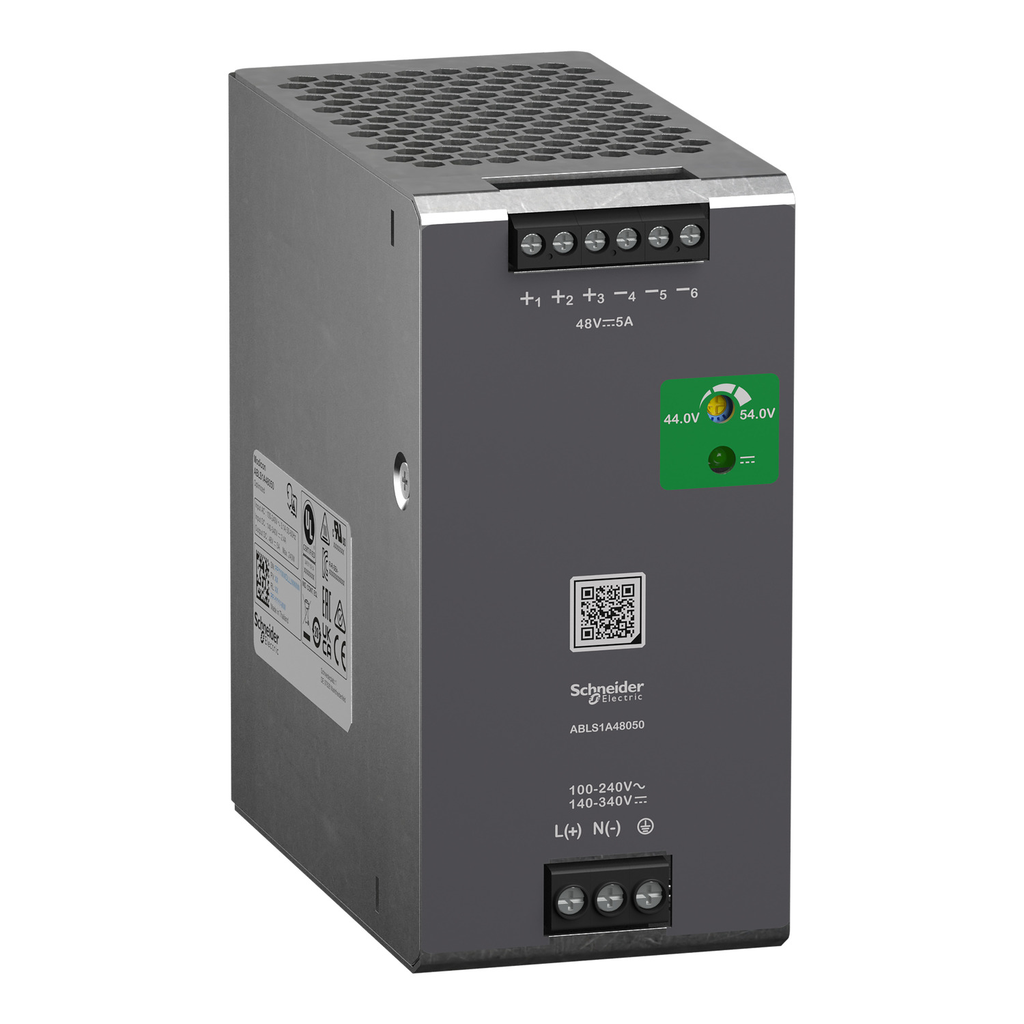

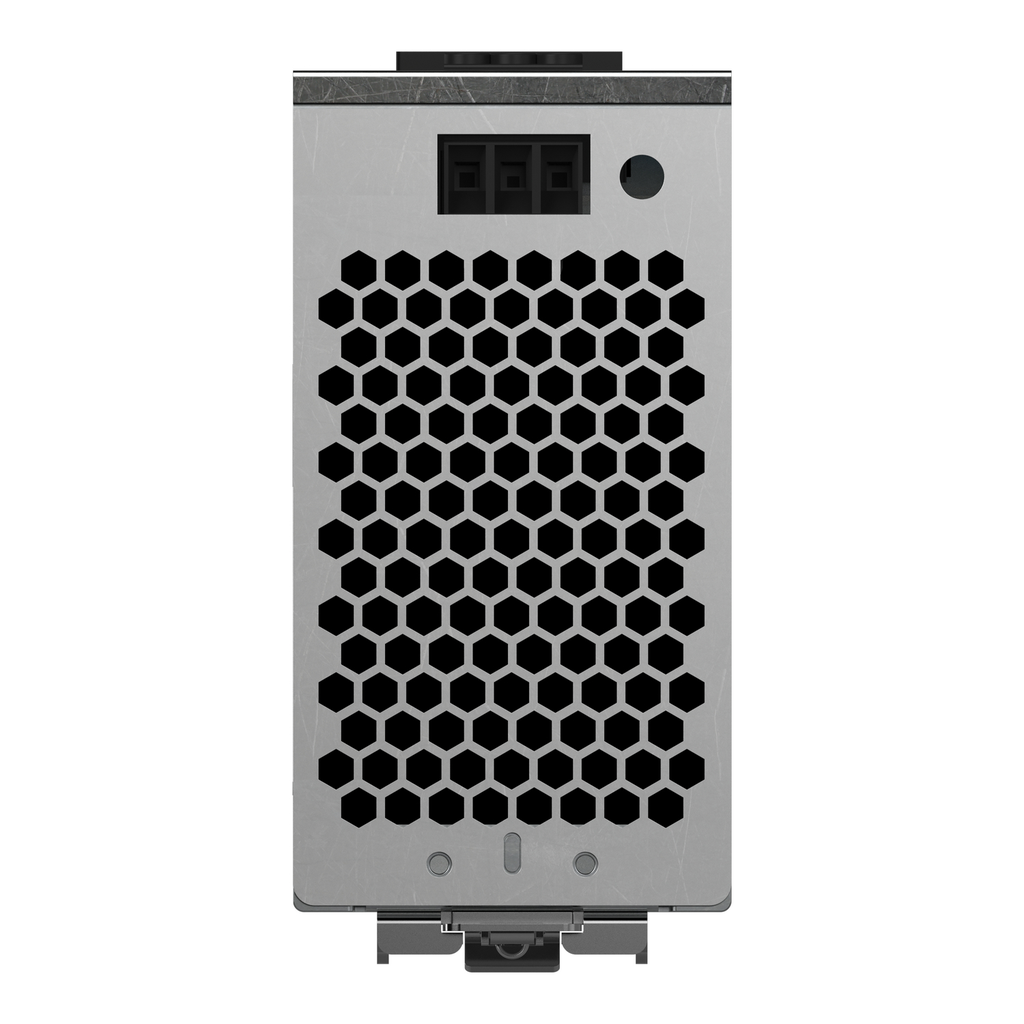

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 5A at 48V DC and a rated power output of 240W. It supplies control circuits in industrial applications. This power supply has a protection against overload and short-circuit. It operates from minus 25degrees celcius to plus 70degrees celcius, and from 0meter to 2000meters or 5000meters with derating. It measures 123.6mm high, 60mm wide, and 117.6mm deep. It weighs 0.8kg. It is a power supply for industrial use. It conforms to CE, CB Scheme, cULus Listed, cURus Recognized, RCM, EAC, UKCA, KC certifications, to IEC/EN 62368-1, IEC/EN 61010-1/2, UL/CSA61010-1/2 standards. Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. Type of protection is 6 A, B or C curve. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
