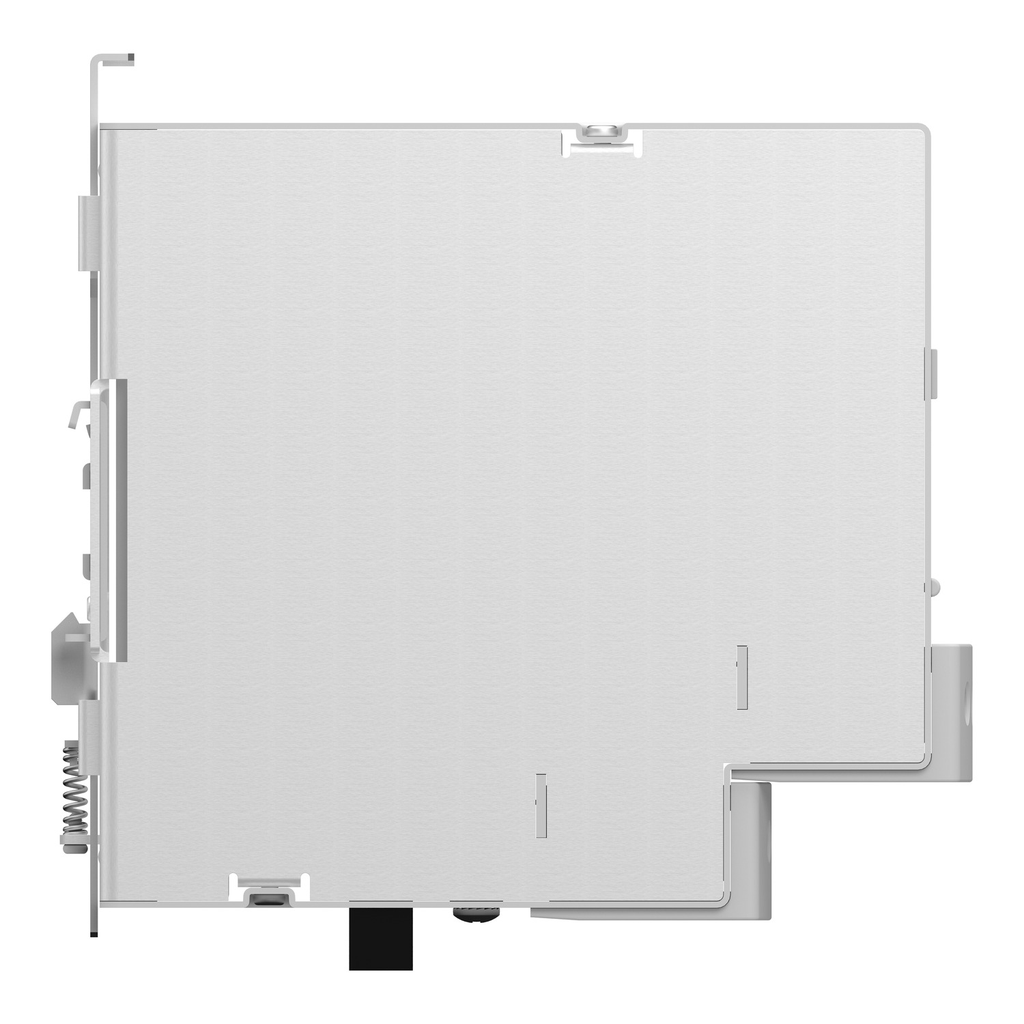

This ABL8 redundancy solution supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A. This redundancy solution is designed to bring continuity to auxiliary power even during failure of one out of 2 power s

• Connections Terminals
• for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
• for output connection: screw type terminals, conne
• Overvoltage Category
• class II conforming to VDE 0106-1
• Mtbf Reliability
• 2488391 H at 24 V DC with UTE C80-810 calculation method
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• CSA C22.2 No 60950-1
• UL 508
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Output Protection Type
• against overload, protection technology: external protection by power supply
• against short-circuits, protection technology: external protection by power supply
• against short-cir
• Fixing Mode
• by clips 35 mm symmetrical DIN rail horizontal
• by clips 35 mm symmetrical DIN rail vertical
• by clips 35 mm symmetri
• Vibration Resistance
• 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
• 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2
• 3.5 mm (f= 3-1
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Environmental Characteristic
• EMC conforming to IEC 61000-6-3
• EMC conforming to IEC 61000-6-2
• safety conforming to IEC 60950-1
• safety conforming to EN/IEC 61204
• safety conforming to EN/IE
• Relative Humidity
• 0-90 % during operation
• 0-95 % during storage
• Persona Type Ids
• EU
• OM
• OM8
• Input Voltage
• 24...28.8 V DC
• Dielectric Strength
• 500 V between input and ground
• 500 V between output and ground
• Local Signalling
• 1 LED per input (green) for power supply status
• 1 relay for power supply status
• Product Certifications
• EAC
• RCM
• Name Of Test
• electrostatic discharges IEC 61000-4-2
• emission IEC 61000-6-3
• induced electromagnetic field IEC 61000-4-6 level 3
• induced electromagnetic fi
• Output Voltage
• (Uin-0.2) V DC

• Complementary Attributes
• Maximum Output Current : 40 A
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• ETIM 10 : EC002540
• Html Descr : Phaseo Redundancy ModuleMaximum Output Current: 40Afor Regulated SMPSNumber of Output Channels: 1Connections-Terminals: Screw Type Terminals
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1848
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Compatibility Code : ABL8R
• Marking : CE
• Package Weight Lbs : 630.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : redundancy module
• Range Of Product : Phaseo
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• Accessories : LAD90
• General Attributes
• Product Or Component Type : redundancy module
• Range Of Product : Phaseo
• Output Attributes
• Maximum Output Current : 40 A
• Number Of Output Channels : 1
• Output Coupling : parallel
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=1452719&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-60 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Current : 20 A
• Input Voltage Limits : 22...30 V
• Specifications
• Country of Origin : Philippines
