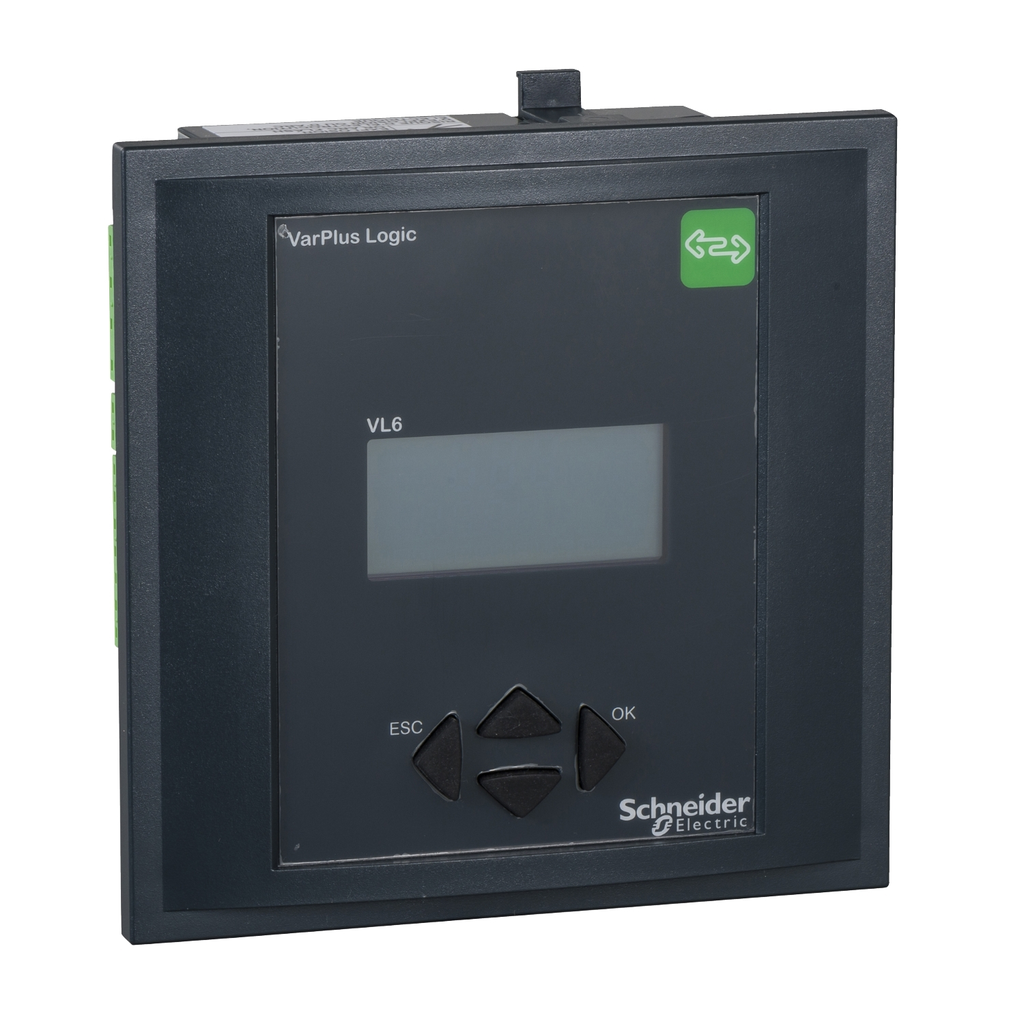

VarPlus logic is a simple and efficient Power Controller for a automatic power factor correction equipment to maintain the power factor. It is a simple and intelligent relay which measures,monitor and Controls the reactive energy. It comes with Easy Commisioning , Step Size detection and monitoring along with the variour alarms. VPL06 can be used for 6 steps in a PFC equippment

• Communications & Management Attributes
• Type Of Alarms : step power loss < 75 %)message and alarm contact + step blocked, step faultymessage and alarm contact + step blocked, high current > 6 A CT)message and alarm contact, hunting (unstable regulation)message and alarm contact + step blocked, low current < 15 mA CT)message and alarm contact, overcompensationmessage and alarm contact, capacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched off, Over Temperature 50 °C)message and alarm contact + step switched off, Over Temperature 30 °C)fan switch, Over Voltage +/- 10 %)message and alarm contact + control stopped, total harmonic distortion > 7 %)message and alarm contact + step switched off
• Physical Attributes
• Display Size : 56 x 25 mm
• Conformance Attributes
• Product Certifications : EAC, NRTL, cNRTL, CE
• Standards : IEC 61000-6-2, EN 61010-1, IEC 61000-6-4, IEC 61326-1, UL 61010-1
• Complementary Attributes
• Us Rated Supply Voltage : <= 999 kV AC with external VT, <= 999 kV AC with external VT, <= 999 kV AC with external VT, 90...550 V AC, <= 999 kV AC with external VT, <= 999 kV AC with external VT
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Function Available : automatic detection, advanced programming (expert), manual programming, any step sequence, automatic initialisation
• Information Displayed : number of switching cycles per step, remaining step capacity in %, individual step size in kVAr
• Measurement Accuracy : voltage +/- 1 %, current +/- 1 %, frequency +/- 1 %, energy (P,Q,S) +/- 2 %, cos φ +/- 2 %, total voltage harmonic distortion THD (U) +/- 2 %, individual voltage harmonic +/- 3 %, Temperature +/- 3 °C
• Metering Type : power factor and displacement PF (signed, four quadrant), total current harmonic distortion THD (I), power factor average over lifetime, temperature maximum, phase current I1, I2, I3 RMS on load, active power P, P1, P2, P3 on load, reactive power Q, Q1, Q2, Q3 on load, apparent power S, S1, S2, S3 on load, voltage U21, U32, U13, V1, V2, V3 on load
• Settings Operating Mode : manual, automatic
• Time Delay Range : 1...6500 s on reconnection), 1...6500 s on response)
• Type Of Measurement : ambient temperature inside the cubicle, tan φ, individual voltage harmonic, cos φ, operating time, power factor, capacitor current overload Irms/I1
• Type Of Setting : choice of stepping programs auto, choice of stepping programs LIFO, choice of stepping programs linear, delay between 2 successive switch on the same step 5...1200 s, step configuration programming auto, step configuration programming off, step configuration programming fixed, target cos phi 0.7 inductive...0.7 capacitive, target cos phi dual cos φ
• Carbon Footprint Of The Distribution Phase A4 : 0.2006307, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9 kg CO2 eq., 0.8787
• Carbon Footprint Of The Installation Phase A5 : 0.3001674, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 71 kg CO2 eq., 71.00331
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 155 kg CO2 eq., 154.82
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-19
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Service Catalog Item : Spare part
• Use Carbon Footprint : 154.82
• End Of Life Carbon Footprint : 0.8787
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1509016_V1
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2514
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : VPL 6
• Current Of Common : 10 A
• Cut Out Dimensions : 138 x 138 mm
• Data Recording : 5 alarms
• Device Connection : communication Modbus RS485
• Device Short Name : VPL6
• Display Type : Backlit LCD
• Energy Efficiency Optimized : False
• Measurement Current : 0-5 A
• Measurement Voltage : 90-550 V AC 50/60 Hz
• Mechanical Durability : 65000 cycles without maintenance
• Mounting Location : in cabinet
• Mounting Mode : flush-mounted
• Mounting Support : panel 1-3 mm
• Number Of Quadrant Operation For Generator Application : 4
• Operating Mode : manual or automatic
• Product Availability : Stock - Normally stocked in distribution facility
• Product Name : PowerLogic PFC Controller
• Product Or Component Type : power factor controller
• Provided Equipment : User Manual
• Range : PowerLogic
• Returnability : No
• Service Life In Hours : 100000 h without maintenance
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 227 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP1509016EN
• Database Version : 2022-01
• Pep Verification Date : 2023-05-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Power factor controllers manages reactive energy and provide accurate measurements with an intelligent relay function to ensure maximum efficiency during 10 years.& 10& 10In addition. it adheres to LV and environmental standards. such as IEC 61010-1. IEC 61000 6-2. IEC 61000 6-4. IEC 61326-1 and UL 61010
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Product Weight In G2 : 696
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 351.9768
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential In 2 : 20
• Offer Owner Code : 190781
• Height Nominal : 144 mm
• Width Nominal : 144 mm
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2 : 154.64
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 2 : 154.82
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 2 : 0.8787
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2 : 978.75
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 3760.5
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 1046.349
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2 : 1802.7
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 2 : 259.4775
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 109.8723
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 3.0804
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 2 : 287.1957
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 2 : 202.96
• Materials For Recycling Kg Installation A5 2 : 0.0522
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 22.778
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 2 : 1.475
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 978.75
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 3760.5
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 1021.728
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 4447.5
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 42.978
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 687.07
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 971.964
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 3760.5
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -0.9396
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 687.07
• Environment Attributes Main
• Ip Degree Of Protection : front face IP41, rear face IP20
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 227.2028081
• Ambient Air Temperature For Operation : -20-60 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI1509016_V1
• Environmental Disclosure : ENVPEP1509016EN
• Eu Rohs Directive : Compliant By Exemption
• Operating Altitude : <= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1509016EN
• Pep Verification Date : 2023-05-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power factor controller
• Provided Equipment : User Manual
• ETIM
• ETIM 8 : EC002758
• ETIM 9 : EC002758
• Output Attributes
• Output Type : fan 1 A 48 V DC, alarm relay 1 A 48 V DC, control relay 0.2 A 110 V DC, control relay 1 A 48 V DC, control relay 2 A 400 V AC 50/60 Hz, control relay 1 A 24 V DC, control relay 5 A 250 V AC 50/60 Hz, control relay 5 A 120 V AC 50/60 Hz, fan 5 A 250 V AC 50/60 Hz, alarm relay 5 A 250 V AC 50/60 Hz
• Number Of Step Output Contacts : 6
• Input Attributes
• Input Type : insensitive to phase rotation polarity, insensitive to CT polarity, phase to neutral, current input CT...X/5 A and X/1 A, phase to phase
• Input Function : switch 1 x dry contact
• Specifications
• Country of Origin : Finland, France, India, United States
• Depth : 58 mm
