Square D - PowerLogic Energy Meter, Basic 100A, 0.518"X1.28" ID, 3CT's

BASIC ENERGY METER

SQDEMB3010 EMB3010 785901539346
966.00 / EA
http://schema.org/OutOfStock

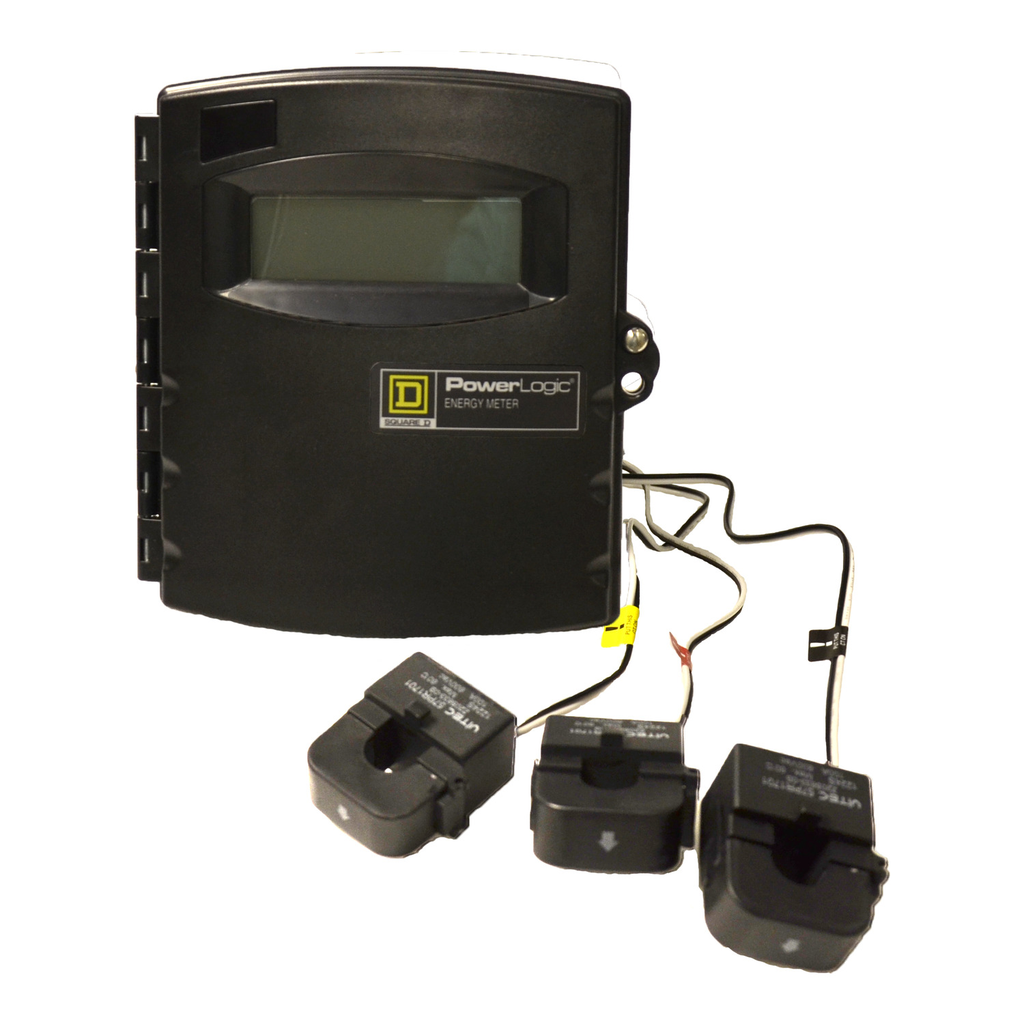

Mayer-DDS-Square D - PowerLogic Energy Meter, Basic 100A, 0.518"X1.28" ID, 3CT's-1
  • Depth: 0 in
  • Warranty Length: 18 mth
Accurate energy metering and simple installation
QTY
  • Features
  • Specifications
  • US Rated Supply Voltage
    • 120 V AC - 25...10 %
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Provided Equipment
    • 3 x current transformer
  • Type Of Measurement
    • energy consumption
    • power
    • peak demand power
    • reactive power
    • power factor
    • voltage
    • current
  • Relative Humidity
    • 0-95 % non-condensing
  • Measurement Voltage
    • 120-120 V AC between phase and neutral
    • 240-240 V AC between phases
  • Information Displayed
    • energy consumption
    • power
    • power maximum)
    • reactive power
    • power factor
    • voltage
    • current
  • Product Certifications
    • UL conforming to UL 3111-1
    • cUL
  • Physical Attributes
    • Display Size : 1.2 x 3.8 inch
  • Conformance Attributes
    • Standards : ANSI C12.1
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : PowerLogic Energy MeterBasic (120/240 V to 208Y/120 V)100A0.518"x1.28" ID3 Current Transformers
    • Manufacturer : Schneider Electric
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2136
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Isolation Voltage : 2500-2500 V
    • Measurement Accuracy : +/- 1 %
    • Package Weight Lbs : 2.223 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : energy meter
    • Range : PowerLogic
    • Returnability : Yes
    • Sustainable Packaging : No
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : energy meter
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=55916785&lang=en-us
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 0-50 °C
    • EU ROHS Directive : Compliant with Exemptions
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 0 in
