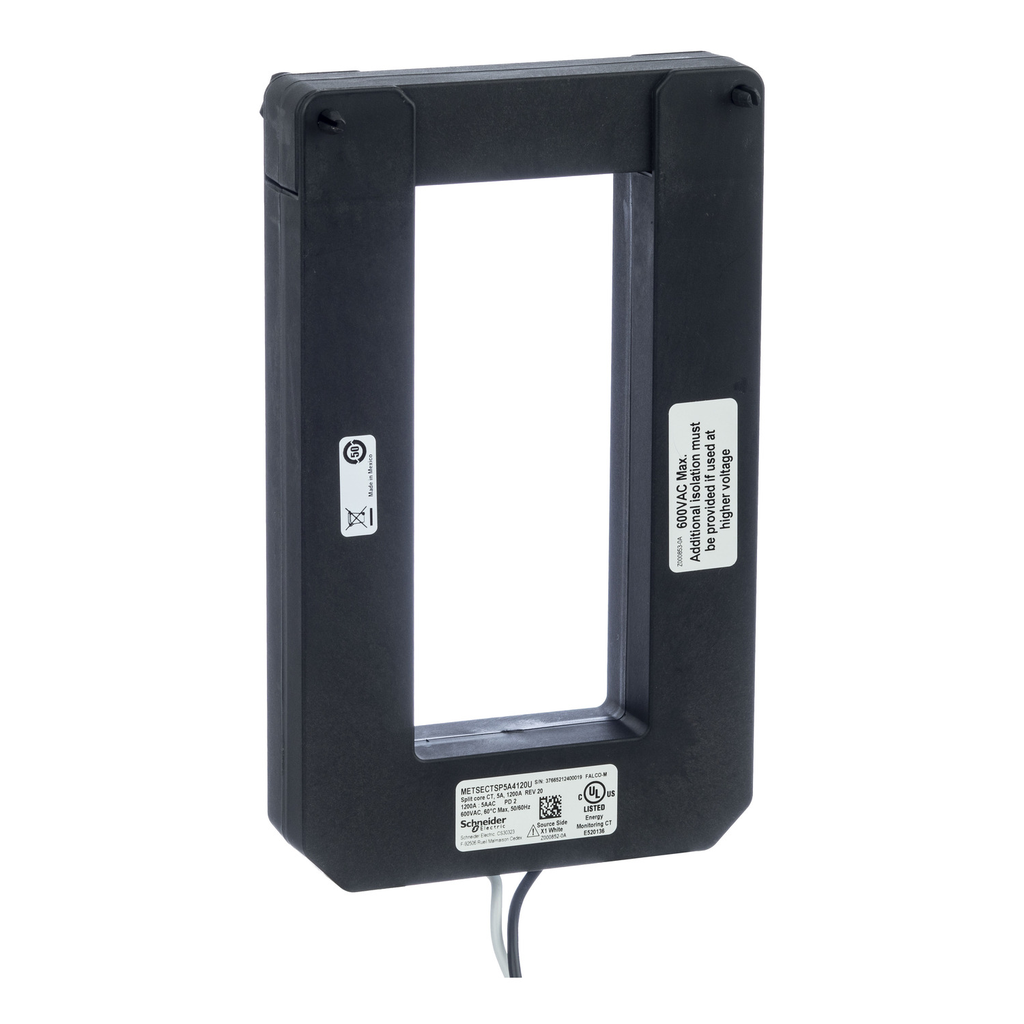

This current transformer, standard for busbar, has a line rated current of 2000 A and a secondary current rating of 5 A. This current transformer do have a 146 mm x 63 mm opening. Compliant with the safety / standard UL2808.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Electrical Connection : 8 ft AWG 16 flying lead
• Insulation : basic insulation 600 V AC, reinforced insulation 300 V AC
• Measurement Accuracy : 1 %
• Network Frequency : 50 Hz, 60 Hz
• Carbon Footprint Of The Distribution Phase A4 : 0.7386845403078701, 0.7 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.8329902197722525
• Carbon Footprint Of The Installation Phase A5 : 0.02014922050434157, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 8.60571413616295
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 463 kg CO2 eq., 463.44653257452967
• Certificate Agency : UL
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2511020_V1-EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2508
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Current Transformer Ratio : 2000/5
• Current Transformer Type : split core
• Energy Efficiency Optimized : False
• Installation Category : III
• Mounting Location : indoor use only
• Network Type : AC
• Primary Operational Current : 2000 A
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : current transformer
• Range : PowerLogic
• Returnability : Yes
• Secondary Current : 5 A
• Software Version : v6.2.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 475 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory Separate Part Category : measurement accessory
• Warranty In Months : 18
• Pep Code : ENVPEP2511020_V1-EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 963.6
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 67
• Offer Owner Code : 190781
• Pn : 1
• Height Nominal : internal: 5.73 in
• Height Useful : total: 8.12 in
• Width Nominal : internal: 2.47 in
• Width Real : total: 4.91 in
• Environment Attributes Main
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
• Relative Humidity : 0-95 % non condensing
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 474.6440706912771
• Ambient Air Temperature For Operation : -15-60 °C-15-60 °C
• Circularity Profile : ENVEOLI2511020_V1-EN
• Environmental Disclosure : ENVPEP2511020_V1-EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2511020_V1-EN
• Pep Verification Date : 2025-12-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : current transformer
• ETIM
• ETIM 8 : EC002048
• ETIM 9 : EC002048
• Specifications
• Country of Origin : Mexico, United States
• Height : 8.12 in
• Width : 4.91 in
• Depth : |1.16 in
