SQUARE D

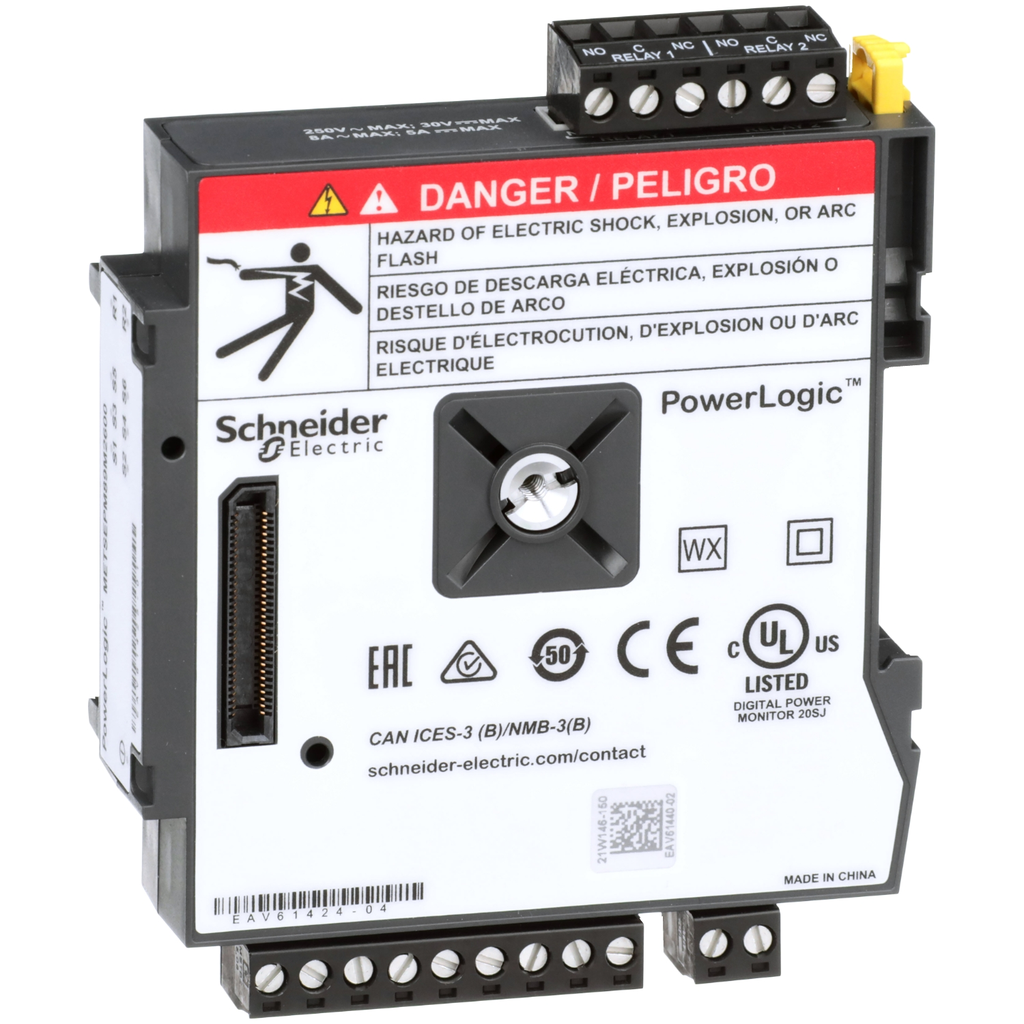

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

PM8000-DIGITAL-I/O-MOD -2R-OUT

SQDMETSEPM89M2600 METSEPM89M2600 3606480701993
1688.02 / EA
http://schema.org/OutOfStock

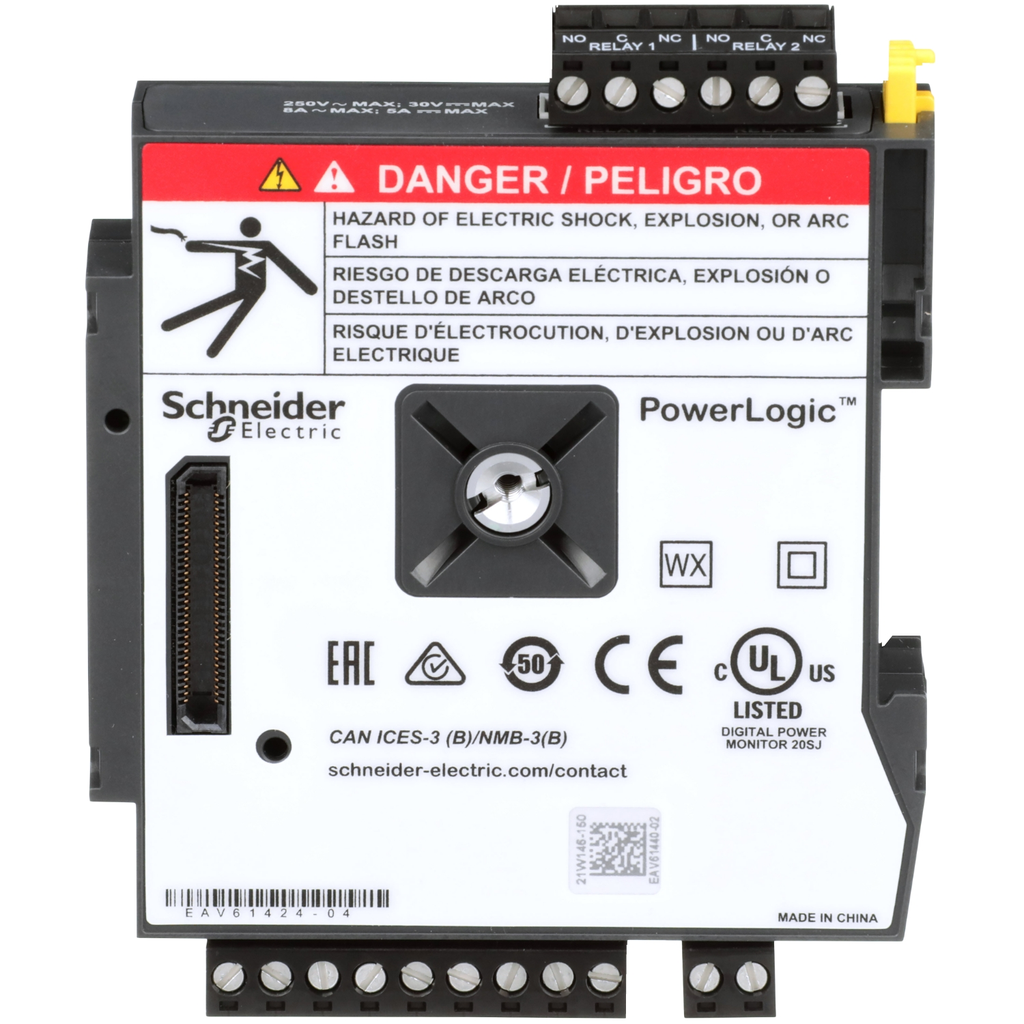

Mayer-DDS-PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs-2
  • Depth: 90.5 mm
  • Height: 90.5 mm
  • Net Weight: 140 g
  • Number of Outputs: 2
  • Storage Temperature: -40-85 °C
  • Width: 22 mm
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
QTY
  • Product Description
  • Specifications
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406023EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1406023EN
    • Eu Rohs Directive : Compliant with Exemptions
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP30 conforming to IEC 60529
  • Complementary
    • Height : 90.5 mm
    • Number Of Outputs : 2 form C relay output
    • Net Weight : 140 g
    • Number Of Inputs : 6 digital
    • Width : 22 mm
    • Depth : 90.5 mm
  • Specifications
    • Range Compatibility : PowerLogic PowerLogic PM8000 || PowerLogic PowerLogic ION7400 || PowerLogic PowerLogic ION9000
    • Product Or Component Type : I/O module
    • Range : PowerLogic
    • Device Application : optional expansion module
