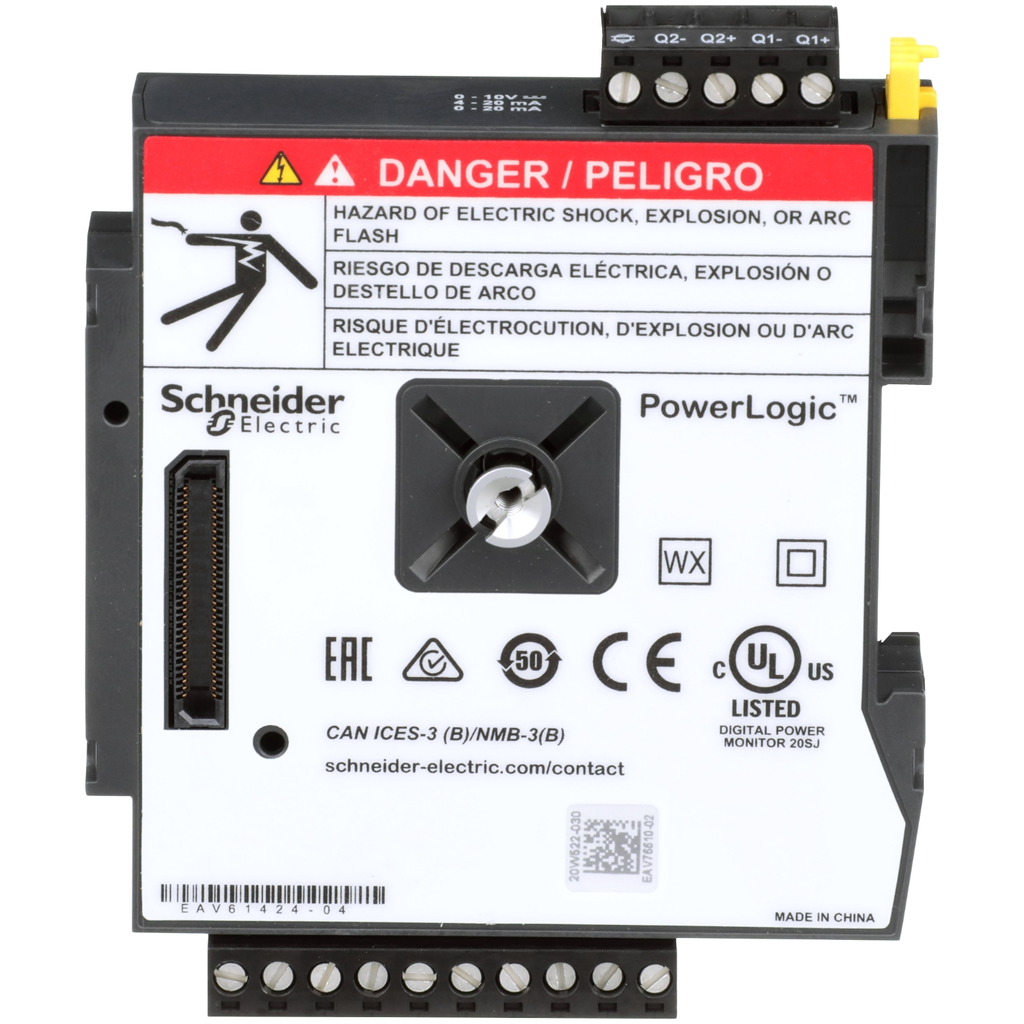

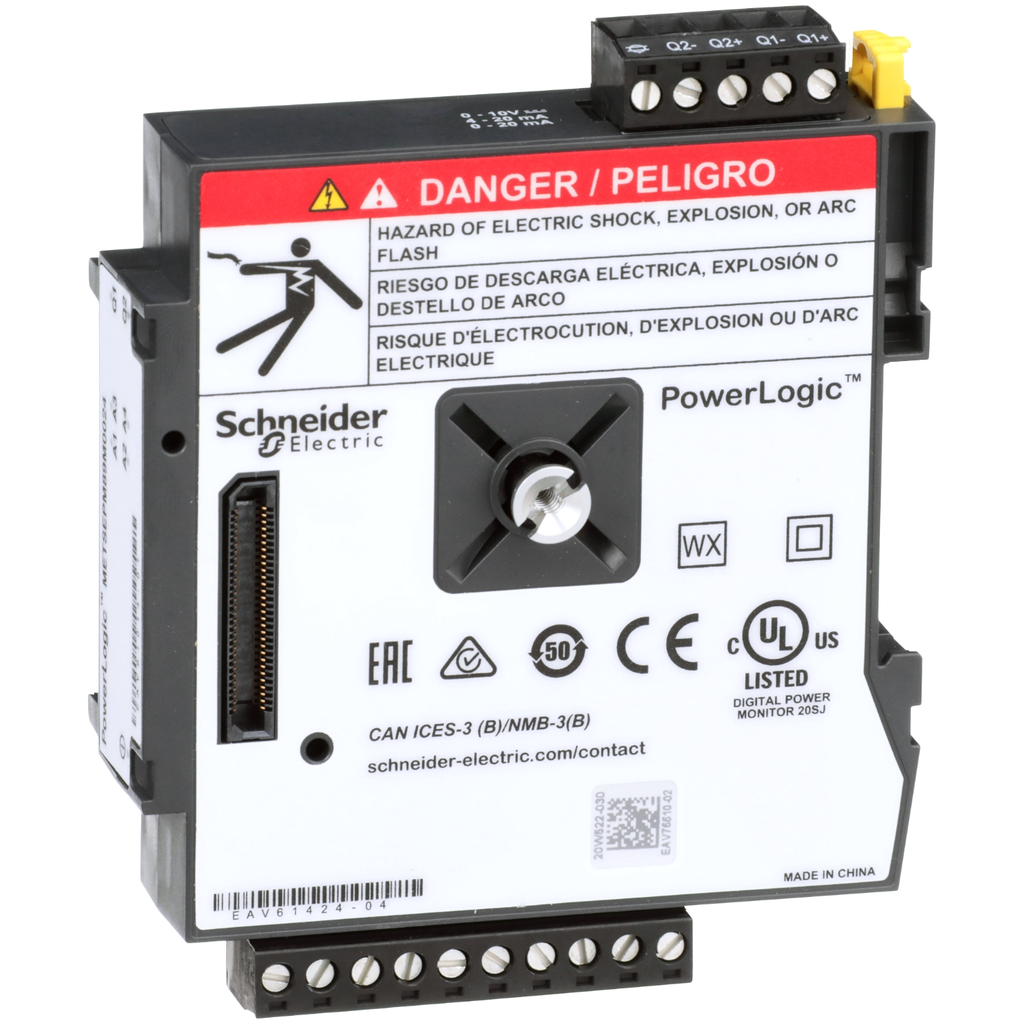

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.09543393160764603, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.4124141249524221
• Carbon Footprint Of The Installation Phase A5 : 0.002451090575130264, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 17.28250082342847
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 42 kg CO2 eq., 42.13150296132088
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310106EN&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
• Local Data Status : Publishable
• Local Publishable Date : 2025-06-18
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506057EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2045
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : optional expansion module
• Energy Efficiency Optimized : False
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : I/O module
• Range : PowerLogic
• Returnability : Yes
• Software Version : v6.2.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 60 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2506057EN
• Database Version : 2024-01
• Pep Verification Date : 2025-09-15
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Technical data:& 10Digital input& 10• Type: Externally excited& 10• Reference voltage: 40 V& 10• Maximum voltage: 30 V AC / 60 V DC& 10• ON state: 11-30 V AC / 11-60 V DC& 10• OFF state: 0-5 V AC / 0-5 V DC& 10Whetting source& 10• Output voltage: 16 V DC& 10• Output current: 20 mA& 10Digital output& 10• Type: Form C mechanical& 10• Maximum voltage: 250 V AC / 30 V DC& 10• Maximum current: 8 A at 250 V AC or& 105 A at 24 V DC, 20k cycles (resistive)& 10Environment& 10• −25 to 70 °C (−13 to 158 °F) operating& 10• Ingress Protection: IP30
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 87.6
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; China, CN
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 28
• Offer Owner Code : 190781
• Pn : 1
• Height Nominal : 90.5 mm
• Width Nominal : 22 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Ip Degree Of Protection : IP30 conforming to IEC 60529
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 59.92430293188454
• Circularity Profile : ENVEOLI2506057EN
• Environmental Disclosure : ENVPEP2506057EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506057EN
• Pep Verification Date : 2025-09-15
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : I/O module
• ETIM
• ETIM 8 : EC001420
• ETIM 9 : EC001420
• Output Attributes
• Number Of Outputs : 2 analog, 0-20 mA or 4-20 mA 0...10 V
• Input Attributes
• Number Of Inputs : 4 analog 0...20 mA/4...20 mA 0...30 V
• Specifications
• Country of Origin : Brazil, Canada, China, France, Mexico, Sweden, United States, ZZ
• Depth : 90.5 mm
