PowerLogic PM8000 - Communication Module - RS-485 4-wire module

POWERLOGIC PM8000 - COMMUNICAT

SQDMETSEPMRS4854W METSEPMRS4854W SQDMETSEPMRS4854W
1013.65 / EA
http://schema.org/OutOfStock

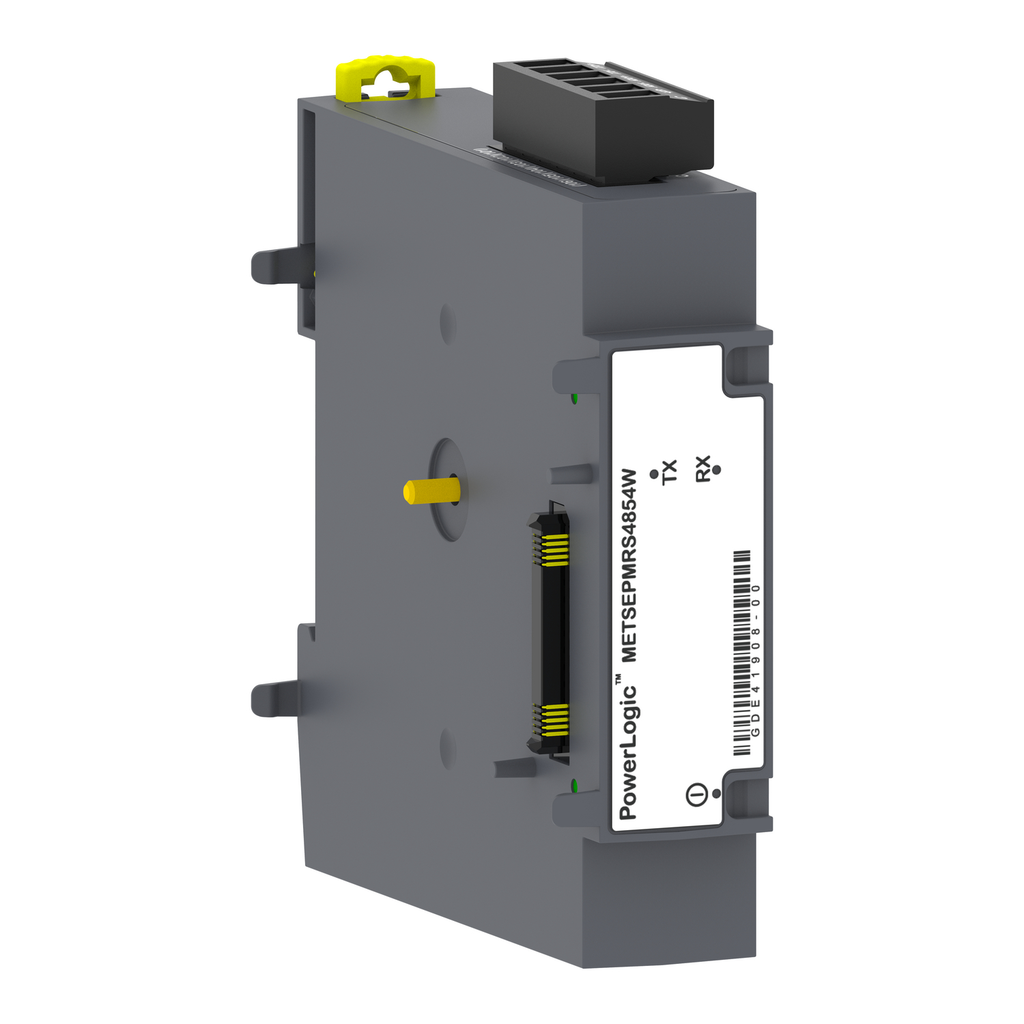

Mayer-DDS-PowerLogic PM8000 - Communication Module - RS-485 4-wire module-1
  • Depth: 90.5 mm
This device is an optional module for advanced meter that provide 4-wire RS-485 connectivity, converted from the onboard 2-wire RS-485 port. The 4-wire RS-485 makes the replacement and retrofitting of legacy 4-wire systems convenient by adding a 4-wire RS-485 serial port to our Advanced Meters. The module is directly powered from the base meter. This module converts onboard 2-wire port to 4-wire serial port, thus offer more options to connect device to serial networks. It supports pluggable screw terminal connector input. Once the option module is installed on the meter, the on board 2-wire serial port is disabled for the compatible meter. Only 1 4-wire RS-485 module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 90.5 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 92.65 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one 4-wire RS-485 module plus 3 other options. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).
QTY
  • Product Description
  • Features
  • Specifications
This device is an optional module for advanced meter that provide 4-wire RS-485 connectivity, converted from the onboard 2-wire RS-485 port. The 4-wire RS-485 makes the replacement and retrofitting of legacy 4-wire systems convenient by adding a 4-wire RS-485 serial port to our Advanced Meters. The module is directly powered from the base meter. This module converts onboard 2-wire port to 4-wire serial port, thus offer more options to connect device to serial networks. It supports pluggable screw terminal connector input. Once the option module is installed on the meter, the on board 2-wire serial port is disabled for the compatible meter. Only 1 4-wire RS-485 module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 90.5 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 92.65 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one 4-wire RS-485 module plus 3 other options. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Support : screw terminal block RS485
    • Communication Port Protocol : Modbus
  • Important Information Attributes
    • Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310106EN&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-05
    • Pre Comm Announcement Date : 2021-09-14
    • Pre Comm Date : 2021-09-14
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2110011_V1
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2146
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Product Kit Identifier : N
    • Device Application : optional expansion module
    • Energy Efficiency Optimized : False
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : communication module
    • Range : PowerLogic
    • Range Of Product : PowerLogic
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2110011EN
    • Offer Owner Code : 190781
    • Pn : 1
    • Height Nominal : 90.5 mm
    • Width Nominal : 22 mm
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2110011_V1
    • Environmental Disclosure : ENVPEP2110011EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2110011EN
  • General Attributes
    • Product Or Component Type : communication module
    • Range Of Product : PowerLogic
  • ETIM
    • ETIM 8 : EC002295
    • ETIM 9 : EC002295
  • Specifications
    • Country of Origin : Brazil, Canada, France, Mexico, United States
    • Depth : 90.5 mm
