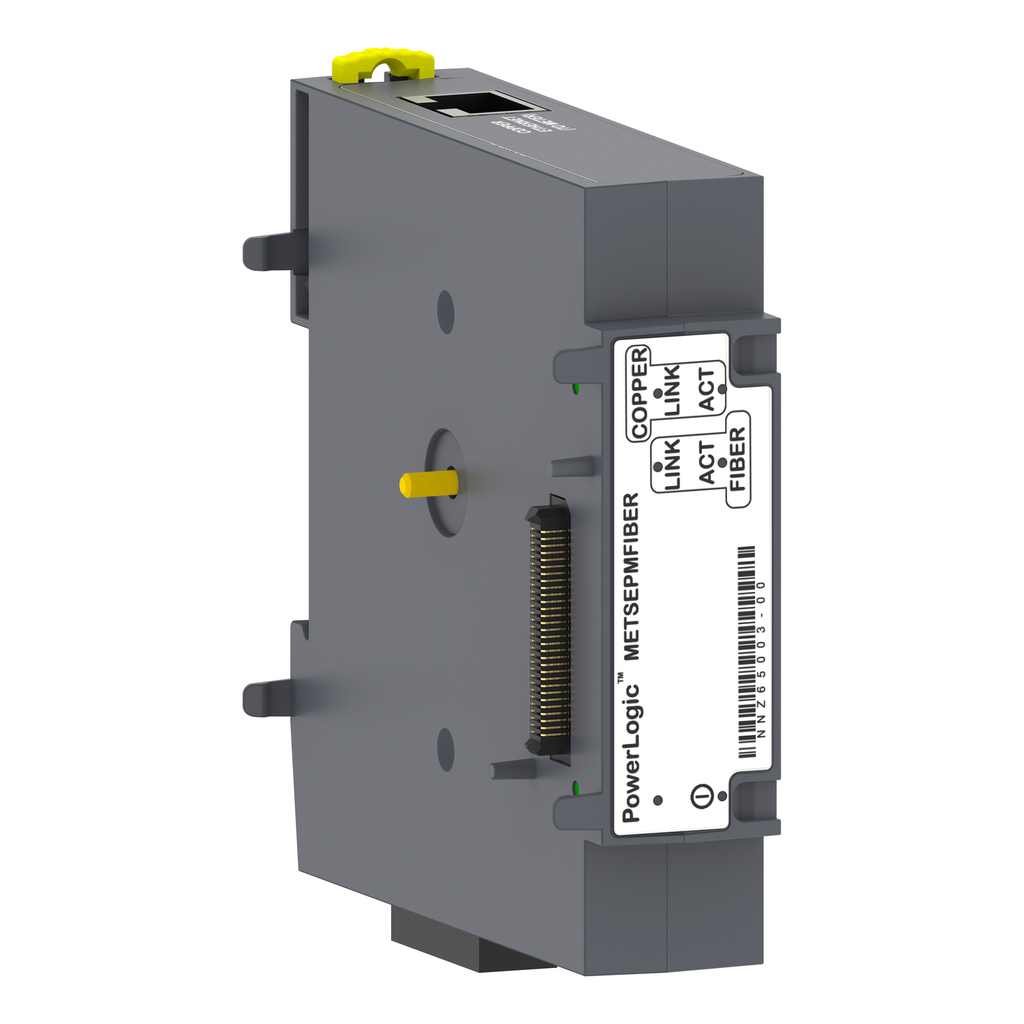

This device is an optional module for advanced meter that provide fiber optic SC-duplex connectivity, converted from the onboard Ethernet port. The Fiber-Ethernet option module can further increase our Advanced Meters flexibility by adding an additional communication port. Provides isolated data transmission through fiber optics up to the length of 2000 m. The module is directly powered from the base meter. This module enables data transfer through fiber optics medium, and offer reliable, and insulated data transmission. It supports multi-mode 100BASE-FX technology and requires SC duplex connector input. Only 1 Fiber-Ethernet module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 100.2 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 102.33 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one fiber-Ethernet module plus 3 other options. It is connected to the base meter with the help of Ethernet patch cable which is included in the module packaging. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Port Protocol : Modbus, ION, DNP3, DLMS, IEC 61850
• Communication Port Support : SC fiber optic
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Carbon Footprint Of The Distribution Phase [A4] : 0.007370376712328768, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.1 kg CO2 eq., 0.1169427148194272
• Carbon Footprint Of The Installation Phase [A5] : 0.002901011830635119, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 5 kg CO2 eq., 5.07510896637609
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 34 kg CO2 eq., 34.25940000000001
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310106EN&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-19
• Pre Comm Announcement Date : 2021-09-14
• Pre Comm Date : 2021-09-14
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Serviceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2110011_V1
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2146
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : optional expansion module
• Energy Efficiency Optimized : False
• Port Ethernet : 100BASE-FX
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range : PowerLogic
• Range Of Product : PowerLogic
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 39 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP2110011EN
• Database Version : 2016-11
• Pep Verification Date : 2021-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Optional port provides a 4-wire RS-485 interface / Comm with Baud rates of 2400 to 115200, pluggable screw terminal connector.& 10Maximum of 4 option modules in total can be connected to the meter.The Energy consumption is 1.9W power in active mode,1.68W in standby and 1.68W in Sleep mode . A typical lifetime is 10 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 61.32
• Energy Model - Manufacturing [A1-a3] : Energy model used: Mexico
• Energy Model - Installation [A5] : Electricity Mix; AC; 1kV - 60kV; EU-27
• Energy Model - Use [B6] : Electricity Mix; AC; 1kV - 60kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; AC; 1kV - 60kV; EU-27
• Height Nominal : 100.2 mm
• Width Nominal : 22 mm
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 174.69 g
• Take-back : No
• Warranty (In Months) : 18
• Air Pollution (M3) Operational Energy Use [B6] : 1446.2
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 352.835
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 127.4945
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 645.19
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 695.065
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 645.19
• Water Pollution (M3) Operational Energy Use [B6] : 1439.48
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 39.46172306973849
• Circularity Profile : ENVEOLI2110011_V1
• Environmental Disclosure : ENVPEP2110011EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2110011EN
• Pep Verification Date : 2021-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : PowerLogic
• ETIM
• ETIM 8 : EC002295
• ETIM 9 : EC002295
• Specifications
• Country of Origin : Brazil, Canada, France, Mexico, United States
• Depth : 90.5 mm
