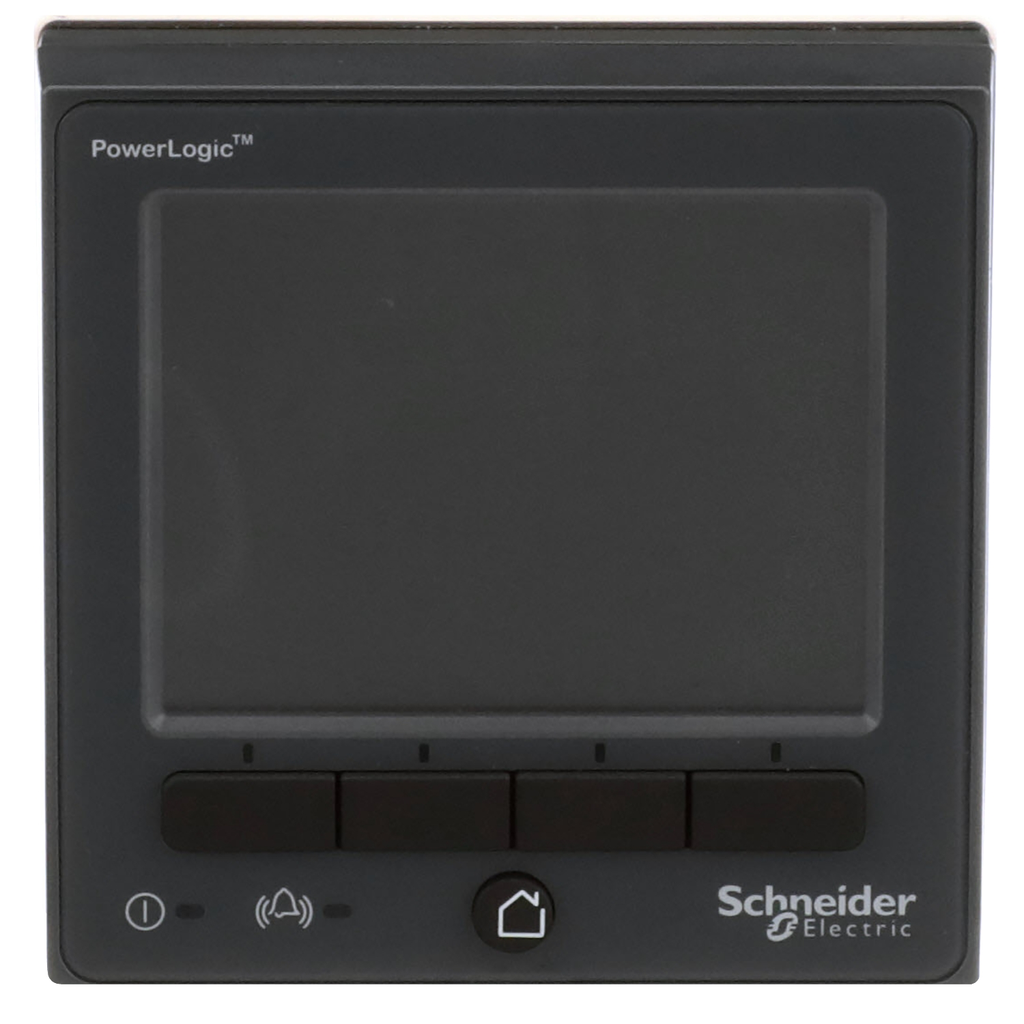

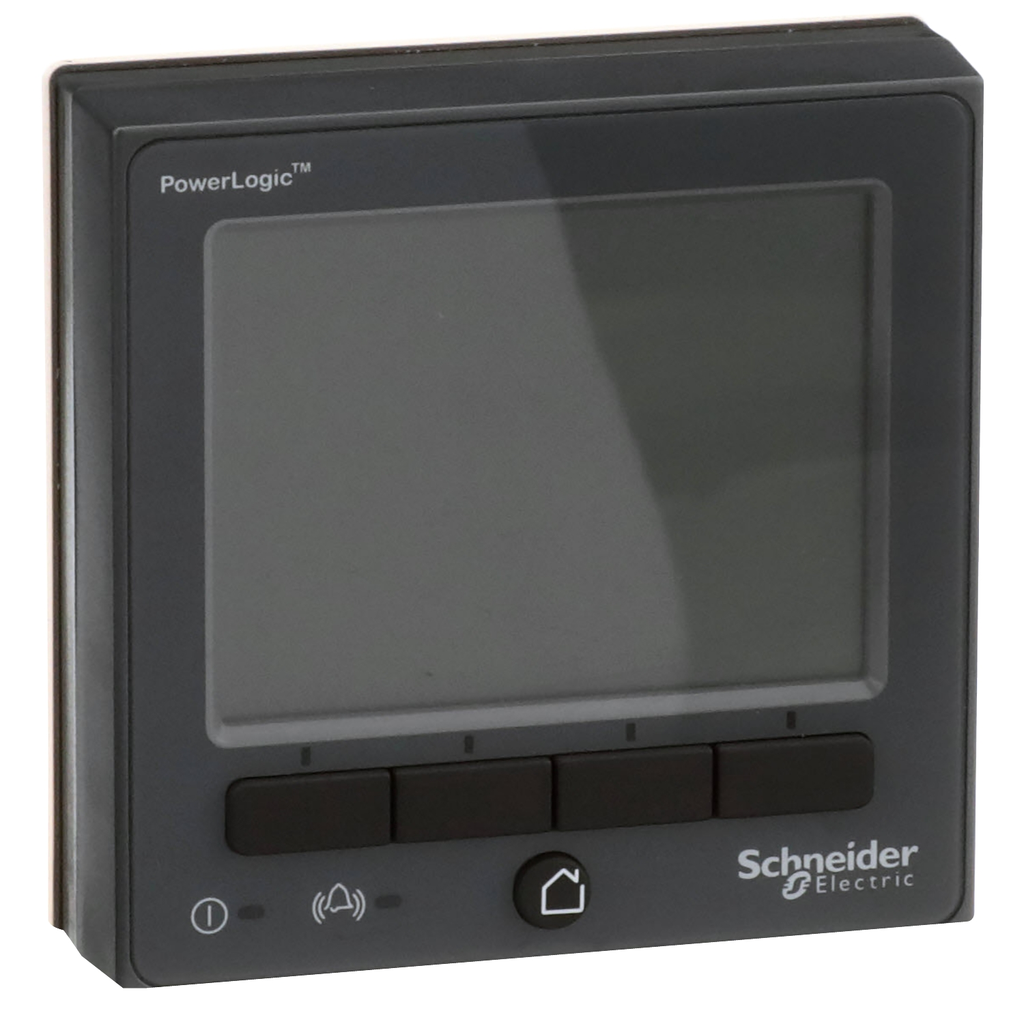

Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Important Information Attributes
• Local Signalling : status LED Green), alarm LED Red)
• Provided Equipment : Mounting Hardware, cable 3 m
• Range Compatibility : PowerLogic PowerLogic PM8000, PowerLogic PowerLogic ION7400
• Carbon Footprint Of The Distribution Phase A4 : 0.4921037008803015, 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.713763496081493
• Carbon Footprint Of The Installation Phase A5 : 0.30722461409265117, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 10.90672472506873
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 145 kg CO2 eq., 144.5951585123966
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-18
• HTML Description : The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure the reliability and efficiency of your power-critical facility. Reveal and understand complex power quality conditions. Measure, understand, and act on insightful data gathered from your entire power system. Designed for key metering points throughout your energy infrastructure, the PowerLogic PM8000 series meter has the versatility to perform nearly any job you need a meter to do, wherever you need it!
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1406040EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Control Type : 5 x push-button
• Energy Efficiency Optimized : False
• Mounting Support : framework remote display
• Package Weight Lbs : 500.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : remote display
• Range : PowerLogic
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 157 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1406040EN
• Pep Verification Date : 2025-10-22
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : To monitor and manage power quality and energy consumption, displaying parameters such as power, energy consumption, harmonics, frequency, voltage, current, alarms, and input/output status, with a consumption of 2.4 Watts in active mode (10% runtime) and 3.2 Watts in standby mode 90% time repartition, resulting in a total energy consumption of 273.312 kWh over 10 years, in accordance with the relevant standards.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : SANJEET SAHOTA
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 157.0149750485198
• Circularity Profile : ENVEOLI1406040EN
• Environmental Disclosure : ENVPEP1406040EN
• IP Degree Of Protection : IP54 IEC 60529
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 %
• Pep Code : ENVPEP1406040EN
• Pep Verification Date : 2025-10-22
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Provided Equipment : Mounting Hardware, cable 3 m
• Product Or Component Type : remote display
• Physical Attributes
• Display Size : 3.5 inch
• Projecting Depth : 27 mm
