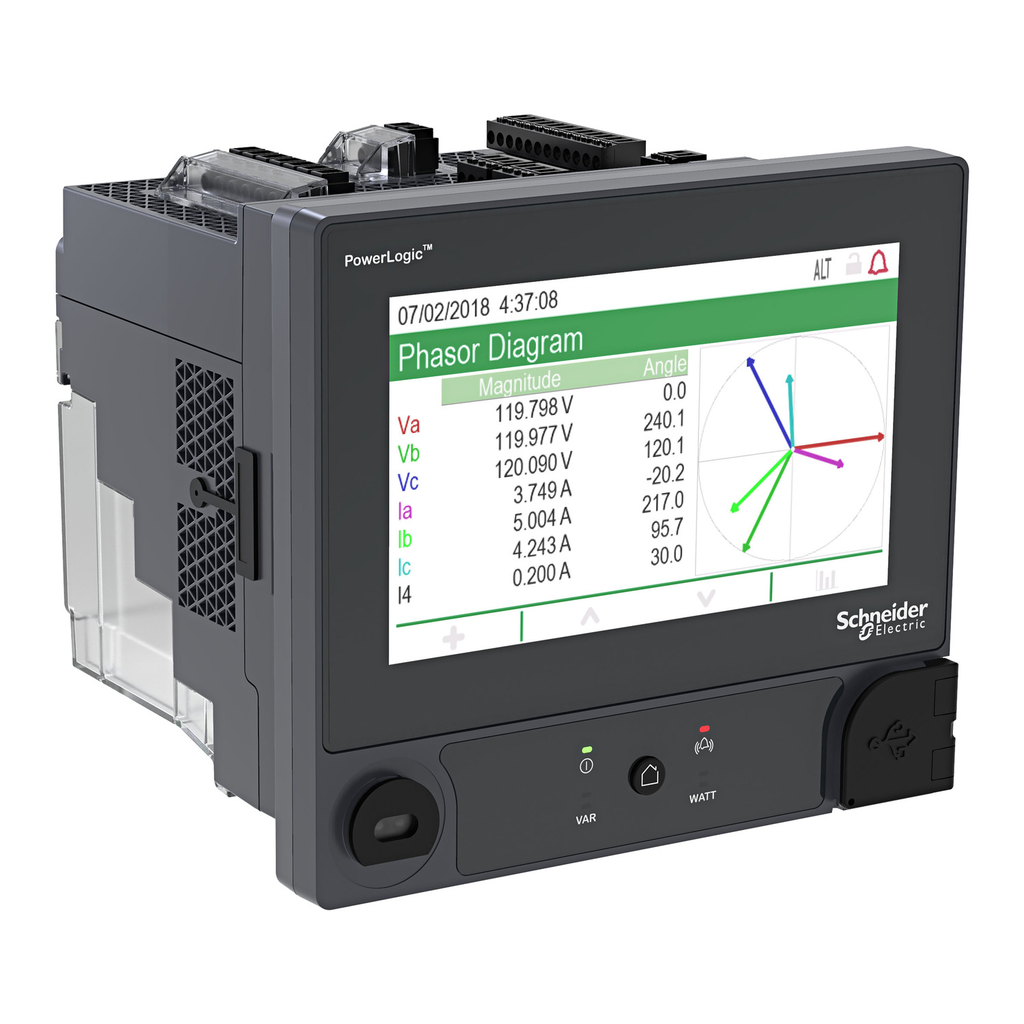

The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data. A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for bot

• Data Recording
• time stamping
• min/max of instantaneous values
• user-definable data logs
• continuous logging or snapshot
• trending/forecasting
• event logs
• alarm logs
• configuration change
• power outage
• user login/logout
• data logs
• GPS synchronisation
• seq
• US Rated Supply Voltage
• 20...60 V DC +/- 10 %
• Mounting Support
• DIN rail meter device
• door cut-out remote display
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000201_3D-CAD&p_File_name=MCADDE0000201_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000201_3D-CAD&p_File_name=MCADDE0000201_2D-back.dwg
• https://downlo
• Ethernet Service
• DHCP client
• Device Profile Web Services (DPWS)
• Rapid Scanning Tree Protocol (RSTP)
• FTP/HTTP/HTTPS
• Analogue Input Type
• voltage (impedance 5 MOhm)
• external CT (impedance 0.3 mOhm)5 x
• Ride Through Time
• 500 ms 60 V DC typical
• IP Degree Of Protection
• IP65 front:
• IP30 rear:
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 2.2641076302352148
• 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 7 kg CO2 eq.
• 6.934975819574542
• Standards
• ANSI C12.20
• ANSI C37.90.1
• IEC 61000-4-15
• IEC 61000-4-30
• IEC 61010-1
• IEC 61326-1
• IEC 61557-12
• IEC 61850
• IEC 62052-11
• IEC 62052-31
• IEC 62053-22
• IEC 62053-23
• IEC 62053-24
• IEC 62586
• UL 61010-1
• Communication Port Support
• 2 RS485 removable screw terminal block
• Maximum Power Consumption In VA
• 38 W 20...60 V DC
• Communication Modules
• METSEPMFIBER
• METSEPMRS4854W
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 260 kg CO2 eq.
• 260.3470338117002
• Power Quality Analysis
• EN 50160 compliance checking
• IEEE 519 harmonic limit
• IEC 61000-4-30 class A compliance reporting
• IEEE 519 compliance reporting
• IEEE 519 compli
• Electrical Insulation Class
• class III EN/IEC 62052-11
• Isolation Voltage
• III400-690 V conforming to EN 61010-1:ed. 3
• III347-600 V conforming to UL 61010-1:ed. 3
• III347-600 V conforming to UL 6101
• Communication Port Protocol
• Modbus RTU 2400...115200 bps - 2-wire
• ION 2400...115200 bps - 2-wire
• DNP3 2400...115200 bps - 2-wire
• DNP3 2400...115
• Power Consumption In VA
• 15 W 20...60 V DC
• Number Of Inputs
• 8 digital 30 V AC/60 V DC
• Quality Labels
• ISO 9001
• ISO 14000
• Type Of Measurement
• voltage sags and swells
• current sags and swells
• voltage
• current
• frequency
• active and reactive power total
• apparent power total
• active and reactive power per phase
• ap
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 603 kg CO2 eq.
• 602.9313330204241
• Electromagnetic Compatibility
• EMC immunity conforming to IEC 62052-11
• EMC immunity conforming to IEC 61326-1
• EMC immunity conforming to IEC 61000-6-5
• electrostatic
• Number Of Outputs
• 4 digital
• 2 form C relay output
• Auxiliaries
• METSEPM89M2600
• METSEPM89M0024
• Measurement Accuracy
• voltage +/- 0.1 %
• current +/- 0.1 %
• Carbon Footprint Of The Distribution Phase A4
• 2.1317086659467686
• 2 kg CO2 eq.
• Port Ethernet
• 10/100BASE-TX 2 RJ45
• Measurement Voltage
• 57-400 V AC 42...69 Hz between phase and neutral
• 100-690 V AC 42...69 Hz between phases
• 100-690 V AC 42...6
• Time Synchronisation Protocol
• GPS
• IRIG-B
• NTP
• SNTP
• PTP

• Communications & Management Attributes
• Communication Gateway : Ethernet/serial
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : Yes
• Field Service Division : DPIBS
• Manufacturing Carbon Footprint : 260.3470338117
• Distribution Carbon Footprint : 2.13170866594677
• Installation Carbon Footprint : 2.26410763023521
• Use Carbon Footprint : 602.931333020424
• End Of Life Carbon Footprint : 6.93497581957454
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1801009_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1840
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Return Indicator : N
• WD Status : L - LOB initialized
• Device Short Name : ION92040
• Frequency Measurement Range : 20-450 Hz
• Package Weight Lbs : 3.8 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : energy and power quality meter
• Range : PowerLogic
• Returnability : No
• Sustainable Packaging : No
• Tamperproof Of Settings : protected by sealable cover
• Total Lifecycle Carbon Footprint : 875 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 874.6091589478808
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1801009_V2
• Pep Verification Date : 2025-05-20
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 3575
• Functional Unit Description : The functional unit for the PowerLogic™ ION9000T meter (METSEION95040) is to provide accurate power quality monitoring and energy metering for a period of 10 years, ensuring compliance with international power quality standards and delivering high-resolu
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 1509.3480000000002
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Canada, CA
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 : Global
• Recyclability Potential In : 6
• Acidification Ap Mole Of H Equiv Total Life Cycle : 4.812173173891656
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 1.726574386824252
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.009275235455057438
• Acidification Ap Mole Of H Equiv Installation A5 : 0.000621060429118016
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 3.0697976604376387
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.005904830745590543
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.016275474118508545
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 10.139054982102502
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.14862412669832076
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.33131091334472035
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 9.651287842511028
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00783209954843183
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.05260260855124079
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 864.4682661253223
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 260.19657197457923
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 2.1317086659467686
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 1.9327967168904947
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 593.2800451779132
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 6.92714358999276
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.5868452366041392
• Climate Change Total Kg Co2 Eq Total Life Cycle : 874.6091589478808
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 260.3470338117002
• Climate Change Total Kg Co2 Eq Distribution A4 : 2.1317086659467686
• Climate Change Total Kg Co2 Eq Installation A5 : 2.2641076302352148
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 602.9313330204241
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 6.934975819574542
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.6394478451553813
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.02842143734659708
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.02825958667674311
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000018347355946
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000265434742893
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00015386566545871674
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000798216657426854
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00006922759554435517
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 16045.504922937473
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 3241.7339732997016
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 26.558201516452872
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.8093726456441985
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 12762.763205567955
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 13.640169907720441
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -22.899171612917442
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 2249.047297796898
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1176.2744846736614
• Ecotoxicity Fresh Water Ctue Distribution A4 : 17.389410742043356
• Ecotoxicity Fresh Water Ctue Installation A5 : 32.9108705033391
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 891.0816035127974
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 131.3909283650567
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -8.49461213742898
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000312285864102497
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000945942216323805
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000002517585986496
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000323982942278
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00002170191153233477
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000003883702538914
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000001476666849107
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.002513766687954399
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000908028407084783
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.001605738280869616
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.001841476621296189
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000593264799007552
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000024993385794592
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00001594291657249849
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0009528593307681398
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00027915964109005297
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000587283354166484
• Hazardous Waste Disposed Of Kg Total Life Cycle : 443.2732631340211
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 441.7623147169156
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0017684161406408818
• Hazardous Waste Disposed Of Kg Installation A5 : 0.00022687296961078118
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.5089531279951929
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -6.2245888780823
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000013792554265331
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000011947742637629
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000003011533626
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000160214911171
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000007166631665419
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000118647941905465
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000020568728636555
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000642760572603241
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000441069591775922
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000456740995939
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000244053393068
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000184215081773699
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000016775104664613
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000009346844056002
• Impacts Related To Land Use Soil Quality Total Life Cycle : 20.6509584362691
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 5.6011337188325125
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 14.309445965349575
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.7403787520870095
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 607.5665301012666
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 86.43780618237736
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0047323432906987255
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0024973640857277293
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 521.1045834876596
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.01691072385320767
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -11.116784379313366
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.5574417965585808
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.1849592030641374
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.004262347238541749
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00023021606798614947
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.365524574078845
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0024654561090705672
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0009379954940305384
• Materials For Energy Recovery Kg Total Life Cycle : 0.00000002115260609712
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000002115260609712
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.2475676697475659
• Materials For Recycling Kg Manufacturing A1 A3 : 0.08523684556714677
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.1623308241804191
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 2.4621329712532543
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.560975687519693
• Net Use Of Fresh Water M3 Distribution A4 : 0.0025213069440100048
• Net Use Of Fresh Water M3 Installation A5 : 0.004241990351559381
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.8836646900663157
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.010729296371675868
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.01425908985603478
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 173.47138247485566
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 71.89286159765611
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.002172476684405231
• Non Hazardous Waste Disposed Of Kg Installation A5 : 1.3067979540774377
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 99.4272244723248
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.8423259741129094
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.6097680244940684
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00003890139041022237
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00003454291786649961
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000188357849216437
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000283026993775
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000245930317303643
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000127606085842
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000023473916710716
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.855935054600568
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.6595794315115162
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.015144246157210006
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0005832217813861182
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 1.1743278294260506
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0063003257244050315
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0037884052170258043
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.06114533643894986
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.039716468753490435
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00042437124366421206
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00002432157003086855
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.020938072644072356
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00004210222769197651
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0020609160461239687
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 7.460652641065765
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 1.965768975784046
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.04618689482449319
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.002768375747970226
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 5.420189574748553
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.02573881996070254
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.010376122830878293
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 65.07174631949778
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 65.07174631949778
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 19415.5949209279
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3365.395227703122
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 26.55837514966527
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.8204364878936747
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 16008.967938275711
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 13.852943311508133
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -24.033357690584666
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3370.0899979904407
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 123.66125440342122
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00017363321240192883
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.01106384224947608
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3246.20473270777
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2127734037876905
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.1341860776672255
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 65.07174631949778
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 65.07174631949778
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15980.433176617975
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3176.6622269802033
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 26.558201516452872
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8093726456441985
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 12762.763205567955
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 13.640169907720441
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -22.899171612917442
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.19918195514802
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.19918195514802
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3364.8908160352926
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 118.4620724482732
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00017363321240192883
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.01106384224947608
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3246.20473270777
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2127734037876905
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.1341860776672255
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.0004171939224665803
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0004171939224665803
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 105.62599903690473
• Water Use M3 Eq Manufacturing A1 A3 : 67.04388047240951
• Water Use M3 Eq Distribution A4 : 0.10829013324522972
• Water Use M3 Eq Installation A5 : 0.1821934855994754
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 37.83081385813773
• Water Use M3 Eq End Of Life C1 C4 : 0.46082108751278233
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.6124256269932764
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : energy and power quality meter
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=475354662&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 874.609158947881
• Ambient Air Temperature For Operation : -25-70 °C
• Circularity Profile : ENVEOLI1801009_V2
• Environmental Disclosure : ENVPEP1801009_V2
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 %
• Pep Code : ENVPEP1801009_V2
• Pep Verification Date : 2025-05-20
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Specifications
• Country of Origin : Canada
