PowerLogic HDPM6000R retrofit module 24-circuits

POWERLOGIC HDPM6000R RETROFIT

SQDMETSEHDPM6R24 METSEHDPM6R24 3606481986573
2163.91 / EA
http://schema.org/OutOfStock

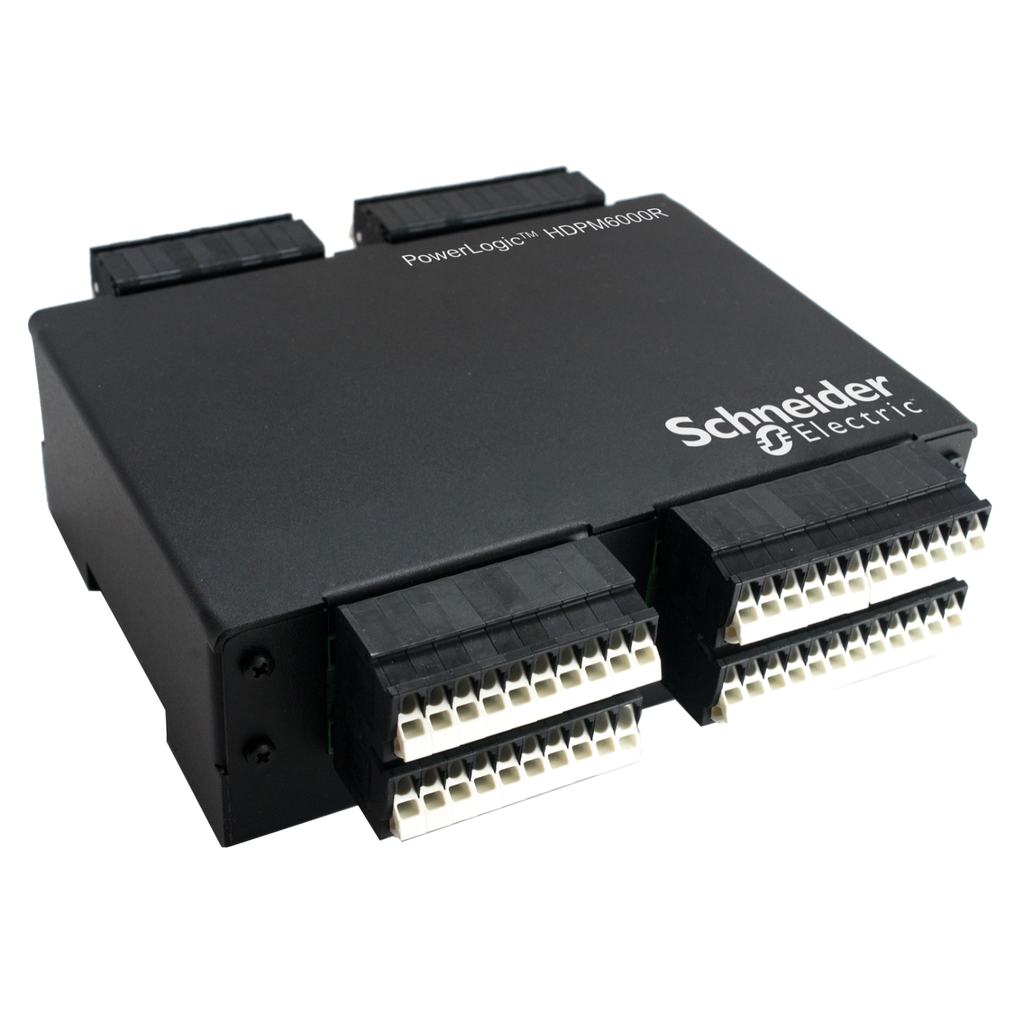

Mayer-DDS-PowerLogic HDPM6000R retrofit module 24-circuits-1
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This combination include 1 retrofit element for current transformers in order to measure values for 24 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The retrofit module dimensions are 173mm in width connector included, 64mm in height and 173.48mm in depth. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Of Data : power quality, reading of measurements, percentage of load
    • Communication Port Protocol : TCP/IP, Modbus, SNMP, BACnet
    • Communication Port Support : 2 RJ45 ETHERNET
  • Conformance Attributes
    • Product Certifications : UL Listed conforming to UL 508 A, CE, cURus
  • Important Information Attributes
    • Market Segment : data center, industrial buildings, healthcare, non-critical buildings
    • Type Of Measurement : current per channel, current all channels, active energy per channel, active energy all channels, active power per channel, active power all channels, apparent power per channel, apparent power all channels, reactive power per channel, reactive power all channels, frequency, power factor per channel, power factor average
    • Carbon Footprint Of The Distribution Phase A4 : 0.5236748501694074, 0.5 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 2.934429375546221
    • Carbon Footprint Of The Installation Phase A5 : 0.015840709486106035, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 34 kg CO2 eq., 34.1494862881984
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 64 kg CO2 eq., 63.70283247751717
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-20
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2510043EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Device Short Name : HDPM6000R
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 1.81373 kg
    • Power Quality Analysis : total harmonic distortion
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : metering module
    • Range : PowerLogic
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 101 kg CO2 eq.
    • Variant : modular version
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2510043EN
    • Pep Verification Date : 2025-10-23
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : ALEXANDRA COOPER
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 101.32626370091731
    • Circularity Profile : ENVEOLI2510043EN
    • Environmental Disclosure : ENVPEP2510043EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-90 %
    • Pep Code : ENVPEP2510043EN
    • Pep Verification Date : 2025-10-23
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : metering module
  • Input Attributes
    • Analogue Input Type : external CT
    • Number Of Inputs : 24 current
