PowerLogic HDPM6000 Color Touchscreen HMI Display 7 inch

POWERLOGIC HDPM6000 COLOR TOUC

SQDMETSEHDPM6HMI7 METSEHDPM6HMI7 3606481985385
3052.57 / EA
http://schema.org/OutOfStock

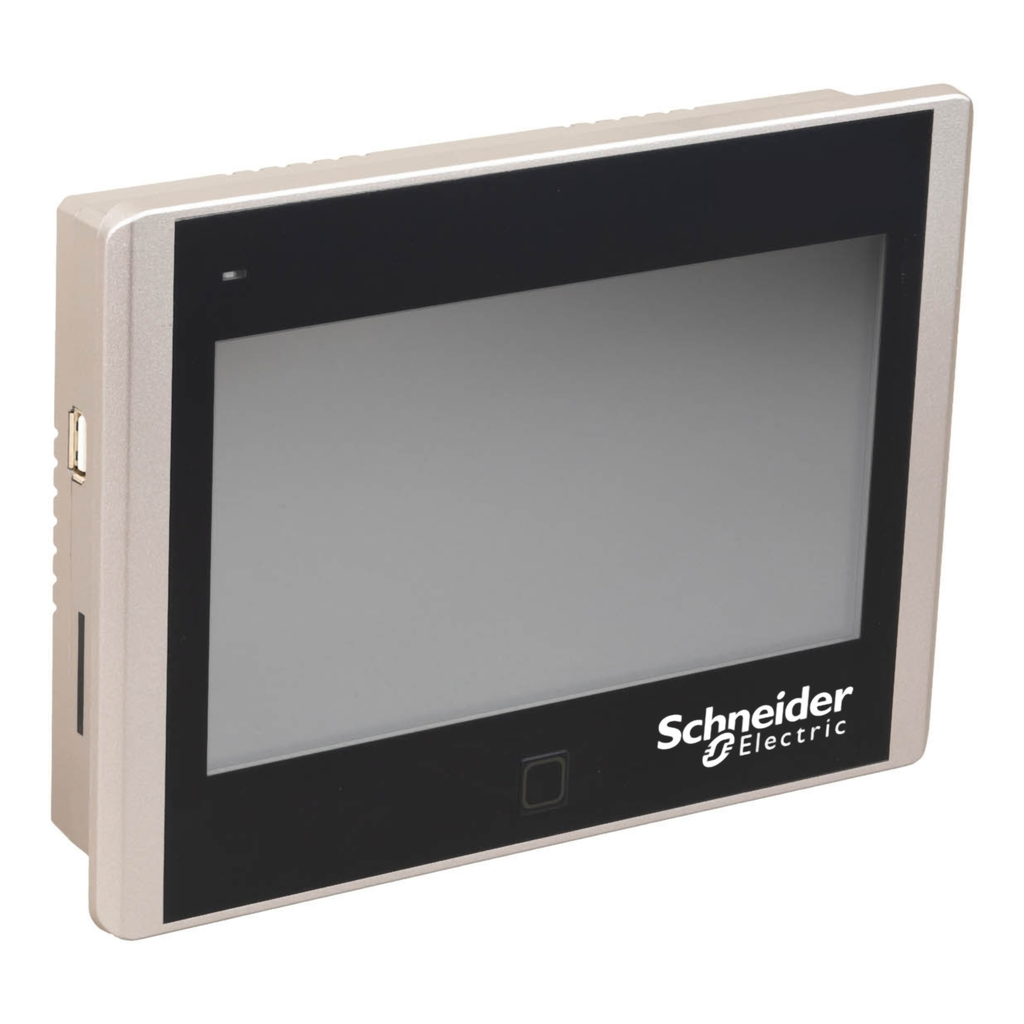

Mayer-DDS-PowerLogic HDPM6000 Color Touchscreen HMI Display 7 inch-1
The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 3 serial buses. The viewable area consist of a color TFT LCD, 7inches, 800 pixels by 480 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 200mm in width, 147.8mm in height, 39.8mm in depth for a net weight of 680g. The recommanded enclosure cut-out should be 184.1mm x 132.1mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
QTY
  • Product Description
  • Features
  • Specifications
The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 3 serial buses. The viewable area consist of a color TFT LCD, 7inches, 800 pixels by 480 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 200mm in width, 147.8mm in height, 39.8mm in depth for a net weight of 680g. The recommanded enclosure cut-out should be 184.1mm x 132.1mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Display Color : 65536 colours
    • Display Size : 7 inch
    • Embedding Depth : 32.8 mm
    • Projecting Depth : 7 mm
  • Complementary Attributes
    • US Rated Supply Voltage : 24 V DC
  • Important Information Attributes
    • Control Type : touch screen, 1 x button
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-15
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Display Color : 65536 colours
    • Energy Efficiency Optimized : False
    • Local Signalling : operating status (RUN) LED Blue)
    • Mounting Support : enclosure
    • Package Weight Lbs : 972.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : display
    • Range : PowerLogic
    • Range Compatibility : PowerLogic PowerLogic HDPM6000 base unit
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Product Kit Identifier : N
    • Product Manager : ALEXANDRA COOPER
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • IP Degree Of Protection : IP65
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-90 % 40-40 °C
  • General Attributes
    • Product Or Component Type : display
