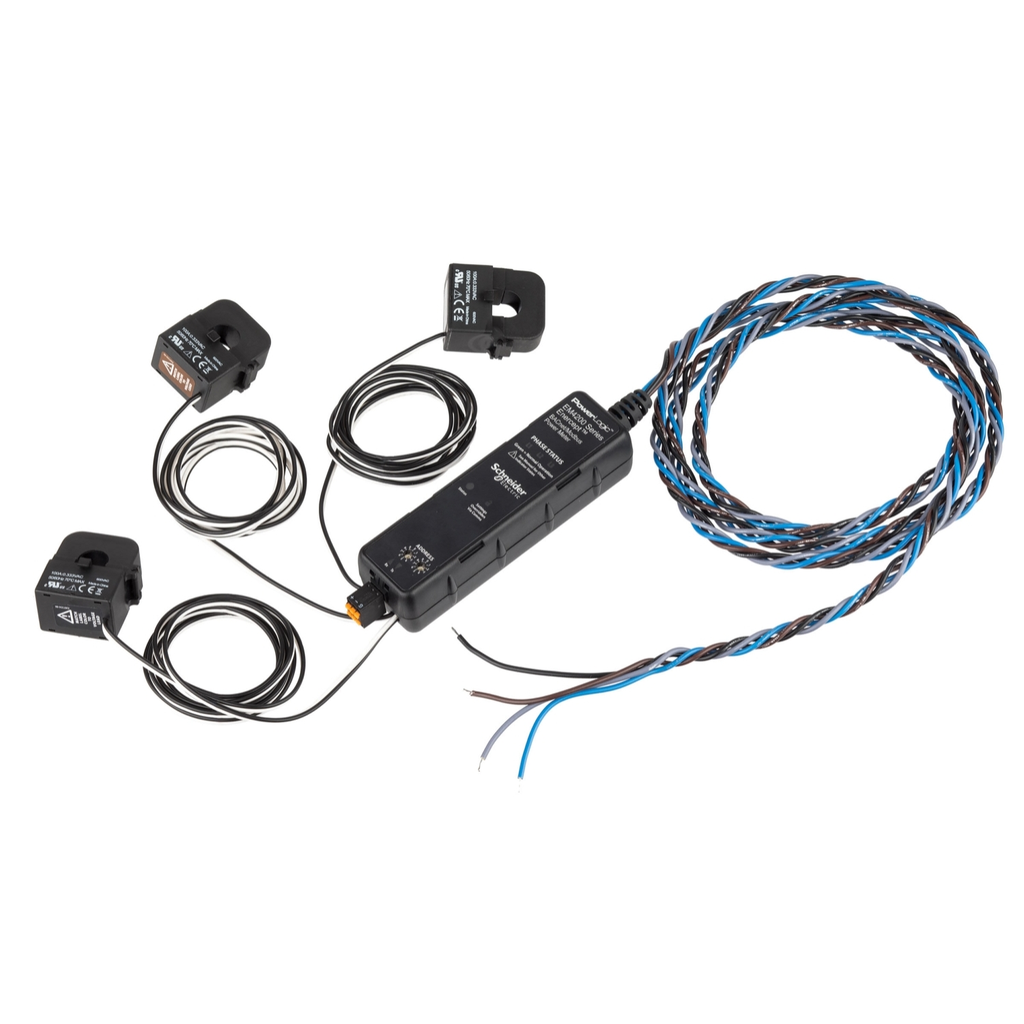

The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. This bundle ships with 3, 400 A split-core current transformers. Accuracy calibrated at 1%. ANSI version, fuse packs factory mounted. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -30-70 °C
• Electromagnetic Compatibility : conducted and radiated emissions conforming to FCC Part 15 class A || conducted and radiated emissions conforming to EN 61000-6-4 || conducted and radiated emissions conforming to EN 61326 + A1 || immunity to conducted disturbances conforming to EN 61000-6-2 || immunity to conducted disturbances conforming to EN 61326-1 || immunity to radiated fields conforming to EN 61000-6-2 || immunity to radiated fields conforming to EN 61326-1
• Pollution Degree : 2
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 0-95 %
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Measurement Category : category III 277-277 V || category III 300-300 V
• Operating Altitude : < 9842.52 ft (3000 m)
• Complementary
• Network Frequency : 50 Hz || 60 Hz
• Provided Equipment : bracket for support || hook || split core current transducer 3 || fuse
• Height : 152.36 mm
• Measurement Voltage : 90-90 V AC 45...65 Hz minimum per phase || 480-480 V AC 45...65 Hz between phases || 300-300 V AC 45...65 Hz between phase and neutral
• Number Of Outputs : 0
• Standards : EN 61010-1 || UL 61010-1 || CAN/CSA C22.2 No. 61010-1-12
• Product Certifications : CE conforming to EN 61010-1 || cULus conforming to UL 61010-1 || BTL || ANSI
• Communication Port Protocol : Modbus RTU 9600 bauds...115200 bauds (automatic detection) || BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
• Frequency Measurement Range : 45-65 Hz
• Communication Of Data : remote control orders || total energy || net energy
• Number Of Inputs : 0
• Depth : 35.81 mm
• Measurement Current : 0-400 A
• Wire Stripping Length : 6 mm
• Local Signalling : status LED green and red) || line fault 3 LED green, orange and red) || dial pointer indication LED Yellow) || RX/TX 2 LED green, orange and red)
• Connections - Terminals : input/output plug-in connector bottom) 0.2-1.5 mm² || current transformer plug-in connector bottom) 0.2-1.5 mm² || communication plug-in connector bottom) 0.2-1.5 mm²
• Function Available : external synchronisation to communication || fixed or rolling block
• Mounting Mode : by screws || clip-on || by hook
• Measurement Accuracy : 1 %
• Mounting Support : enclosure || DIN rail
• Line Rated Current : 400 A
• Analogue Input Type : split core current transducer 0.333 V (impedance 33 kOhm) || voltage (impedance 2.5 MOhm)single phase || voltage (impedance 5 MOhm)phase to phase
• Width : 46.63 mm
• Display Type : Without Display
• Accuracy Class : class 1 ANSI C12.1 || class 1S IEC 62053-22
• Metering Type : active, reactive, apparent energy (signed, four quadrant) || apparent power S, S1, S2, S3 || demand power P, Q, S || active power P, P1, P2, P3 || reactive power Q, Q1, Q2, Q3 || power factor || average current Iavg || peak demand power PM, QM, SM || frequency || voltage U21, U32, U13, V1, V2, V3
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
• Specifications
• Country of Origin : United States
• Width : 46.63 mm
• Height : 152.36 mm
• Product Or Component Type : energy meter
• Product Name : PowerLogic EM4200
• Type Of Cable : ANSI cable
• Range : PowerLogic
• Device Application : power monitoring
• Device Short Name : Enercept
