EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC

ECOSTRUXURE PANEL SERVER - UNI

SQDPAS600L PAS600L 3606481014320
1255.80 / EA
http://schema.org/OutOfStock
Mayer-DDS-EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC-1
  • Depth: 70.2 mm

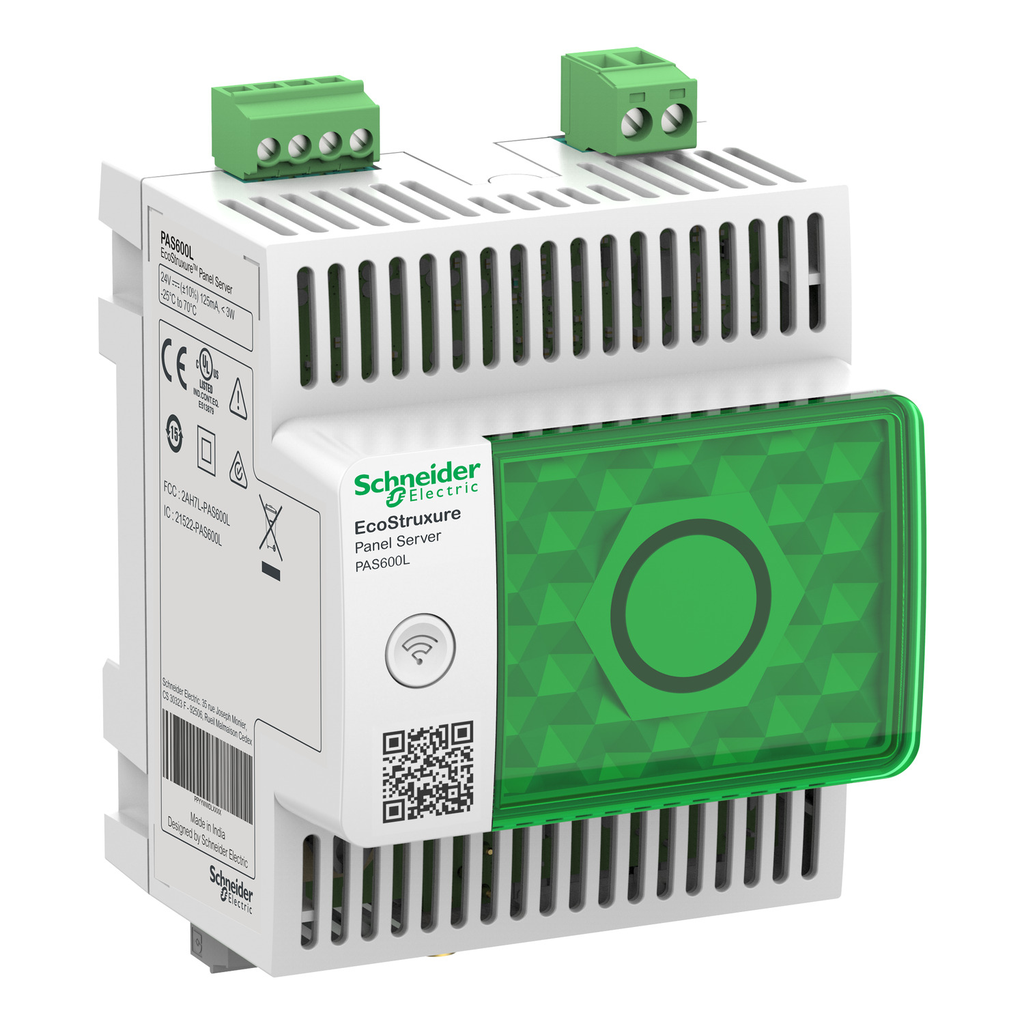

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Gateway : Ethernet TCP/IP to wireless devices, Ethernet/serial
    • Communication Port Protocol : Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
    • Communication Port Support : 2 RJ45 ETHERNET, screw terminal block RS485
    • Communication Service : Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, RSTP
  • Physical Attributes
    • Wire Stripping Length : power supply: 7 mm, communication: 7 mm, discrete I/O: 7 mm
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Residential, Commercial, Industrial
    • Function Available : embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, energy management, with integrated web server, firmware update, backup/restore configuration, configurable event
    • Number Of Devices : 64 Modbus TCP/IP
    • Realtime Clock : with RTC-battery set, with user calibration
    • Tightening Torque : discrete I/O: 0.25-0.25 N.m, power supply: 0.6-0.6 N.m, communication: 0.25-0.25 N.m
    • Time Synchronisation Protocol : NTP, SNTP
    • Topology : separated Ethernet network, switched Ethernet network
    • Web Services : HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON)
    • Connections Terminals : discrete I/O screw terminal block top) 0.14-1.5 mm², power supply screw terminal block top) 1.5-2.5 mm², communication screw terminal block bottom) 0.14-1.5 mm²
    • Number Of Server Device S : 32 Modbus RTU product(s), 128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed, 85 wireless (IEEE 802.15.4) product(s) - depending on configuration
    • Carbon Footprint Of The Distribution Phase A4 : 0.15164350972647828, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5443412568794713, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.1 kg CO2 eq., 0.1381572394849482
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.66160681691857
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 111 kg CO2 eq., 111.47919891639178
    • Certificate Agency : CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10
    • Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-08
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : Relay, Control & Measurement - gateway
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2008001EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2348
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 4
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Data Recording : real time data monitoring
    • Data Retention Time : 1 month(s)
    • Device Application : gateway
    • Device Short Name : PAS600L
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts and cables product
    • Mounting Mode : clip-on
    • Mounting Support : DIN rail
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : Panel Server Universal
    • Product Or Component Type : gateway
    • Product Specific Application : Wireless Schneider Electric devices ecosystem
    • Range : EcoStruxure
    • Returnability : Yes
    • Software Version : v6.3.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 131 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2008001EN
    • Database Version : 2025-04
    • Pep Verification Date : 2026-03-24
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : The PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 227.76
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; India, IN
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 1
    • Offer Owner Code : 190781
    • Pn : 1
    • Height Nominal : 93 mm
    • Width Nominal : 72 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m, -25-60 °C 2000...4000 m-25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m
    • Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
    • Derating Factor : with temperature derating of -1 °C per 200 m 4000...5000 m
    • Ip Degree Of Protection : IP40 front face), IP20 casing)
    • Operating Altitude : < 5000 m, < 5000 m
    • Relative Humidity : 5-95 %
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts & cables product
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Carbon Footprint : 130.97494773940124
    • Circularity Profile : ENVEOLI2008001EN
    • Environmental Disclosure : ENVPEP2008001EN
    • Eu Rohs Directive : Compliant By Exemption
    • Halogen Content Performance : Halogen free plastic parts & cables product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : wireless access point
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2008001EN
    • Pep Verification Date : 2026-03-24
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : gateway
  • ETIM
    • ETIM 8 : EC001099
    • ETIM 9 : EC001099
  • Input Attributes
    • Number Of Inputs : 2-2 digital
  • Specifications
    • Country of Origin : Brazil, Germany, France, India, Mexico, Singapore, United States
    • Depth : 70.2 mm
  • Batteries & Runtime Attributes
    • Removable Battery : No
