EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambia

• Data Recording
• historical dashbaording and trending
• 3 years data logs
• Connections Terminals
• communication screw terminal block bottom) 0.14-1.5 mm²
• power supply screw terminal bl
• Topology
• separated Ethernet network
• switched Ethernet network
• Range Compatibility
• EcoStruxure Facility Expert
• EcoStruxure Building Operation
• EcoStruxure Power Operation
• EcoStruxure Power Monitoring Expert
• EcoStrux
• Function Available
• embedded web page for configuration and upgrade
• diagnosis capabilities
• diagnostic report
• diagnostics on communication
• embedded data logger
• Event Logger
• energy management
• with integrated web server
• firmware update
• configurable event
• ba
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Communication Service
• Device Profile for Web Services (DPWS)
• Modbus TCP client
• Modbus TCP server
• SNTP client
• DHCP client
• web server (energy & operation efficiency)
• RSTP
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.0378772558
• Number Of Devices
• 64 Modbus TCP/IP
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1916595349
• 0.2 kg CO2 eq.
• Standards
• IEC 61010
• IEC 61010-1
• IEC 61010-2-201
• UL 61010
• UL 61010-1
• UL 61010-2-201
• EN 61010-1
• EN 61010-2-201
• CAN/CSA C22.2 No. 61010-1-12
• CAN/CSA C22.2 No. 61010-2-201
• IEC 62974-1
• IEC 61326-1
• EN 61326-1
• ETSI EN 301 489-1
• ETSI EN 301 489
• Communication Gateway
• Ethernet TCP/IP to wireless devices
• Ethernet/serial
• Communication Port Support
• 2 RJ45 ETHERNET
• screw terminal block RS485
• Ip Degree Of Protection
• IP40 front face)
• IP20 casing)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 20 kg CO2 eq.
• 19.7061860465
• Device Application
• gateway & energy server
• data logger
• Communication Port Protocol
• Modbus TCP
• DHCP
• HTTPS
• NTP/SNTP
• IPv4
• IPv6
• TCP/IP
• Number Of Server Device S
• 32 Modbus RTU product(s)
• 128 Modbus TCP/IP product(s)
• 40 wireless (IEEE 802.15.4) product(s) - mixed
• 85 wi
• Market Segmentation
• Residential
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Realtime Clock
• with RTC-battery set
• with user calibration
• Web Services
• HTTPS server
• SFTP publication (CSV / JSON)
• HTTPS publication (CSV / JSON)
• alarm notification by e-mail
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 31 kg CO2 eq.
• 31.1157486111
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Wire Stripping Length
• power supply: 7 mm
• communication: 7 mm
• Carbon Footprint Of The Distribution Phase A4
• 0.0356104186
• 0 kg CO2 eq.
• Tightening Torque
• communication: 0.25-0.25 N.m
• power supply: 0.6-0.6 N.m
• Time Synchronisation Protocol
• NTP
• SNTP
• Market Segmentation Id
• RESIDENTIAL
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• CE
• cULus
• CB
• RCM
• UKCA
• FCC
• IC
• DNV Marine
• ANSI RF
• IACS E10

• Communications & Management Attributes
• Communication Interface : Modbus and wireless (IEEE802.15.4) product
• Complementary Attributes
• Us Rated Supply Voltage : PoE
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Pre Comm Date : 2022-04-13
• Html Descr : ECOSTRUXURE PANEL SERVER ADVANCED DATALOGGER ENERGY SERVER POE
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - gateway
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 10 year(s)
• Manufacturing Carbon Footprint : 19.7061860465
• Distribution Carbon Footprint : 0.0356104186
• Installation Carbon Footprint : 0.0378772558
• Use Carbon Footprint : 31.1157486111
• End Of Life Carbon Footprint : 0.1916595349
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2008001_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2429
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 4
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Data Retention Time : 3 month(s)
• Device Short Name : PAS800P
• Halogen Free Status : Halogen free plastic parts and cables product
• Mounting Mode : clip-on
• Mounting Support : DIN rail
• Package Weight Lbs : 276 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : gateway
• Product Specific Application : Wireless Schneider Electric devices ecosystem
• Range : EcoStruxure
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 51 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 51.0870818669
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : gateway
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=538811500&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts & cables product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 51.0870818669
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2008001_V2
• Environmental Disclosure : ENVPEP2008001_V2
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts & cables product
• Operating Altitude : < 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : wireless access point
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-93 %
• Input Attributes
• Number Of Inputs : 0-0
• Specifications
• Country of Origin : India

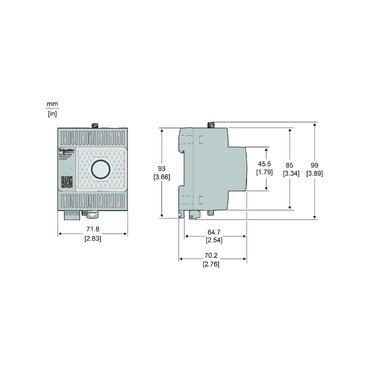

• Height : 3.66 in
• Width : 2.83 in
• Depth : 2.76 in
• Batteries & Runtime Attributes
• Removable Battery : NO
