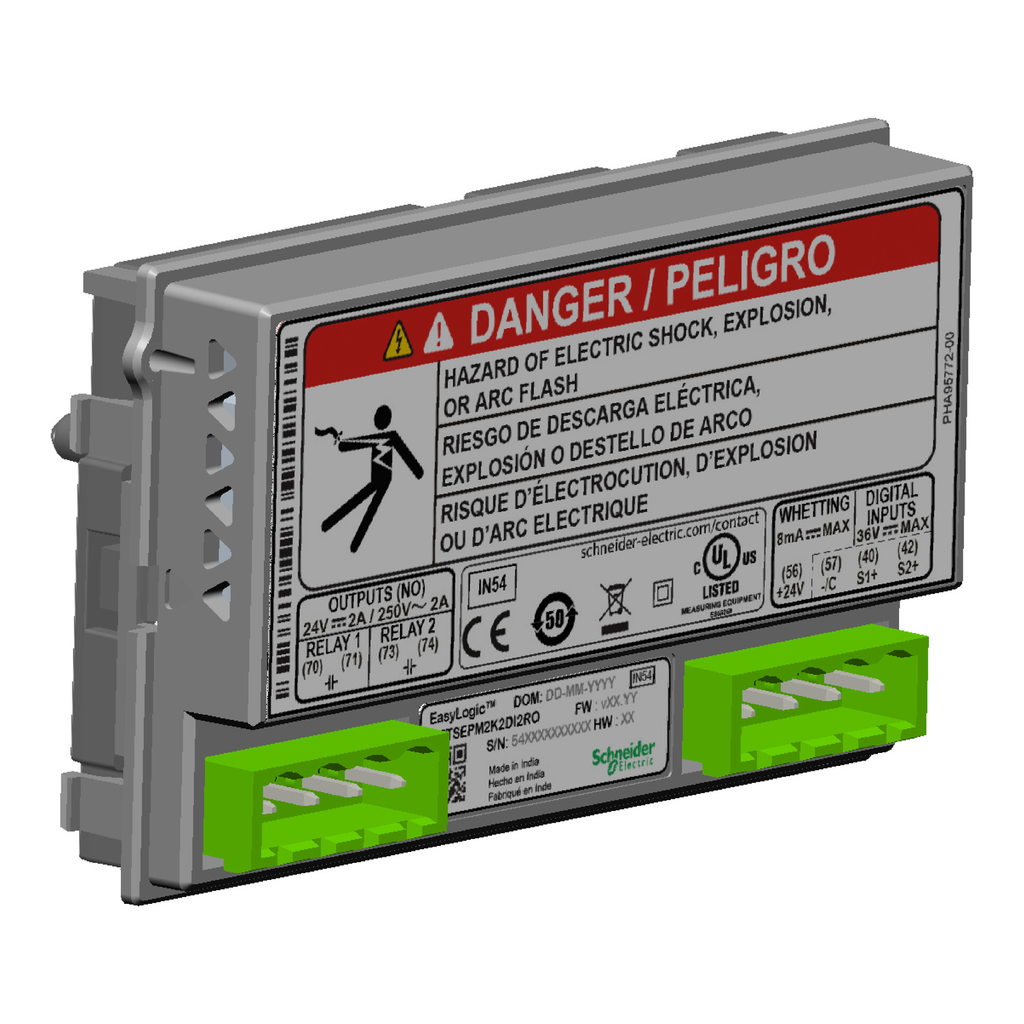

EasyLogic PM2X30 - I/O Module - Digital - 2 inputs + 2 relay outputs

EASYLOGIC PM2X30 - I/O MODULE

SQDMETSEPM2K2DI2RO METSEPM2K2DI2RO 3606489589295
172.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-EasyLogic PM2X30 - I/O Module - Digital - 2 inputs + 2 relay outputs-2
  • Country of Origin: India
  • Depth: 14.6 mm
  • Height: 53 mm
  • Input Voltage: 30 V
  • Net Weight: 50 g
  • Number of Outputs: 2 Relay
  • Output Voltage: 24 V, 250 V
  • Weight: 50 g
  • Width: 90.5 mm
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable relay outputs. This module provides 2 digital status inputs that support 30VDC. Plus 2 configurable Relay outputs to activate based on various parameters values. The potential free Relay contact support 250 VAC L-N, 2 Amps load or 24 VDC 2 Amps load. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
QTY
  • Product Description
  • Features
  • Specifications
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable relay outputs. This module provides 2 digital status inputs that support 30VDC. Plus 2 configurable Relay outputs to activate based on various parameters values. The potential free Relay contact support 250 VAC L-N, 2 Amps load or 24 VDC 2 Amps load. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 53 mm
    • Number Of Outputs : 2 relay
    • Output Voltage : 250 V AC || 24 V DC
    • [Ui] Rated Insulation Voltage : 2500 V
    • Net Weight : 50 g
    • Number Of Inputs : 2 digital
    • Input Voltage : 30 V DC
    • Width : 90.5 mm
    • Depth : 14.6 mm
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1510005
    • Packaging Without Single Use Plastic : No
    • Scip Number : a7ebbabc-caf1-4cb4-a60a-4e5e23907d1f
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1510005
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : India
    • Width : 90.5 mm
    • Height : 53 mm
    • Weight : 50 g
    • Range Compatibility : EasyLogic EasyLogic PM2100 PM2130 || EasyLogic EasyLogic PM2200 PM2230
    • Product Or Component Type : I/O module
    • Range : PowerLogic
    • Device Application : optional expansion module
  • Environment
    • Ambient Air Temperature For Operation : -10-60 °C
    • Ambient Air Temperature For Storage : -25-70 °C
