EM4800 multi-circuit energy meter - 24 x 80 mA inputs, 120 V - 60 Hz

EM4800, 80MA CTS, 120V CP, 60

SQDMETSEEM488016 METSEEM488016 785901754497
8929.95 / EA
http://schema.org/OutOfStock

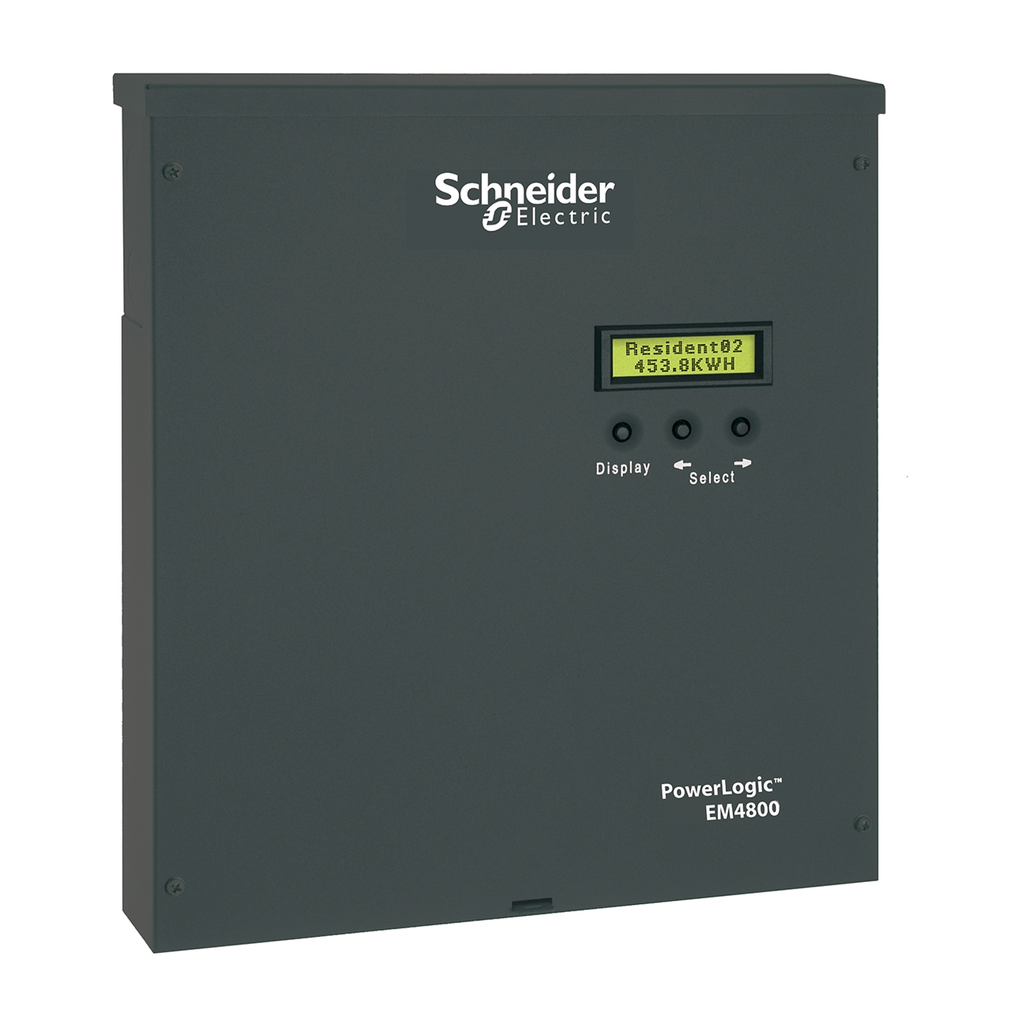

Mayer-DDS-EM4800 multi-circuit energy meter - 24 x 80 mA inputs, 120 V - 60 Hz-1
  • Country of Origin: Canada
  • Number of Outputs: 0
  • Warranty Length: 18 mth
This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
QTY
  • Product Description
  • Features
  • Specifications
This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
  • US Rated Supply Voltage
    • 120 V AC 60 Hz
  • Analogue Input Type
    • solid core CT 80 mA24 x single pole
    • solid core CT 80 mA12 x single phase
    • solid core CT 80 mA8 x three phase
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communication Port Support
    • RJ45 ETHERNET
    • RJ11 modem
    • SUB-D 9 RS232
  • Communication Port Protocol
    • BACnet IP
    • FTP
    • HTTP
    • Modbus TCP/IP
    • SNTP
  • Communication Of Data
    • positive reactive energy
    • positive active energy
    • voltage
    • apparent energy
    • negative reactive energy
    • negative active energy
  • Number Of Inputs
    • 2 pulse
  • Type Of Measurement
    • current per phase, rms
    • voltage per phase, rms
    • negative reactive energy
    • apparent energy
    • pulse count
    • positive active energy
    • positive reactive energy
    • negative active energy
  • Relative Humidity
    • 90-90 % 40-40 °C
  • Measurement Voltage
    • 80-480 V
    • 480-999000 V with external VT
  • Market Segment
    • buildings small building cost management: billing: panelboard
    • buildings medium building cost management: billing: panelboard
    • buildings large building cost management: billing: panelboard
    • buildings multi-site cost management: billing: panelboard
    • buildings small building cost management: cost allocation: panelboard
    • buildings medium building cost management: cost allocation: panelboard
    • buildings large building cost management: cost allocation: panelboard
    • buildings multi-site cost management: cost allocation: panelboard
  • Conformance Attributes
    • Product Certifications : UL
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : The compact PowerLogic EM4800 series multi-circuit energy meter from Schneider Electric enables reliable metering of individual tenants with a low installation cost-per-point by combining revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments. The PowerLogic EM4800 series meters monitor up to 24 tenants with a single device. Multiple meters can be combined to support an unlimited number of suites.NOTE:Direct connection for 100 - 300 Vac L - N electrical distribution systems (277 Y/480V; 208 Y/120V; 120/240V; 230V)Current Transformers ( CT’s) are required and sold separatelyThe PowerLogic EM4805 meter requires 5 Amp, split-core or solid-core CT'sShorting blocks are required. Consider SQD-3090TB4 (4 Pole) or SQD-3090TB6 (6 Pole)This model requires 120 Vac, 60hz control powerEnclosure Size: H=13.125 in., W=17 in., D=2.125 inCommunications:1 Ethernet port for Modbus TCPIP or FTP or HTTP (Includes on board web server)1 Modem port for FTPThe PowerLogic EM4800 series meter is integral to tenant billing and energy management solutions that provide building owners with the following benefits:Provide accurate energy sub-billing to tenants.Empower tenants with information about their energy usage, allowing them to manage their total consumption while helping you reduce operational costs and offer more competitive lease rates.Accurately allocate costs to departments or processes and identify saving opportunities by exposing wasteful energy practicesIdentify periods of high energy usage and revealing cost saving opportunities within your facilitiesVerify utility charges using accurate, revenue-grade meters to avoid being overchargedEstablish a “green” efficiency image for your building, such as qualifying for points within the LEED Green Building Rating System
    • Manufacturer : Schneider Electric
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1319
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Compatibility Code : EM4800
    • Device Short Name : EM4800
    • Energy Efficiency Optimized : False
    • Measurement Accuracy : +/- 0.5 % of the measuring range
    • Package Weight Lbs : 1 kg
    • Power Monitoring : basic instrumentation
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : multi-circuit energy meter
    • Range : PowerLogic
    • Range Of Product : PowerLogic
    • Returnability : No
    • Sustainable Packaging : No
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : multi-circuit energy meter
    • Range Of Product : PowerLogic
  • Output Attributes
    • Number Of Outputs : 0
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=150196593&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-70 °C
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Canada
