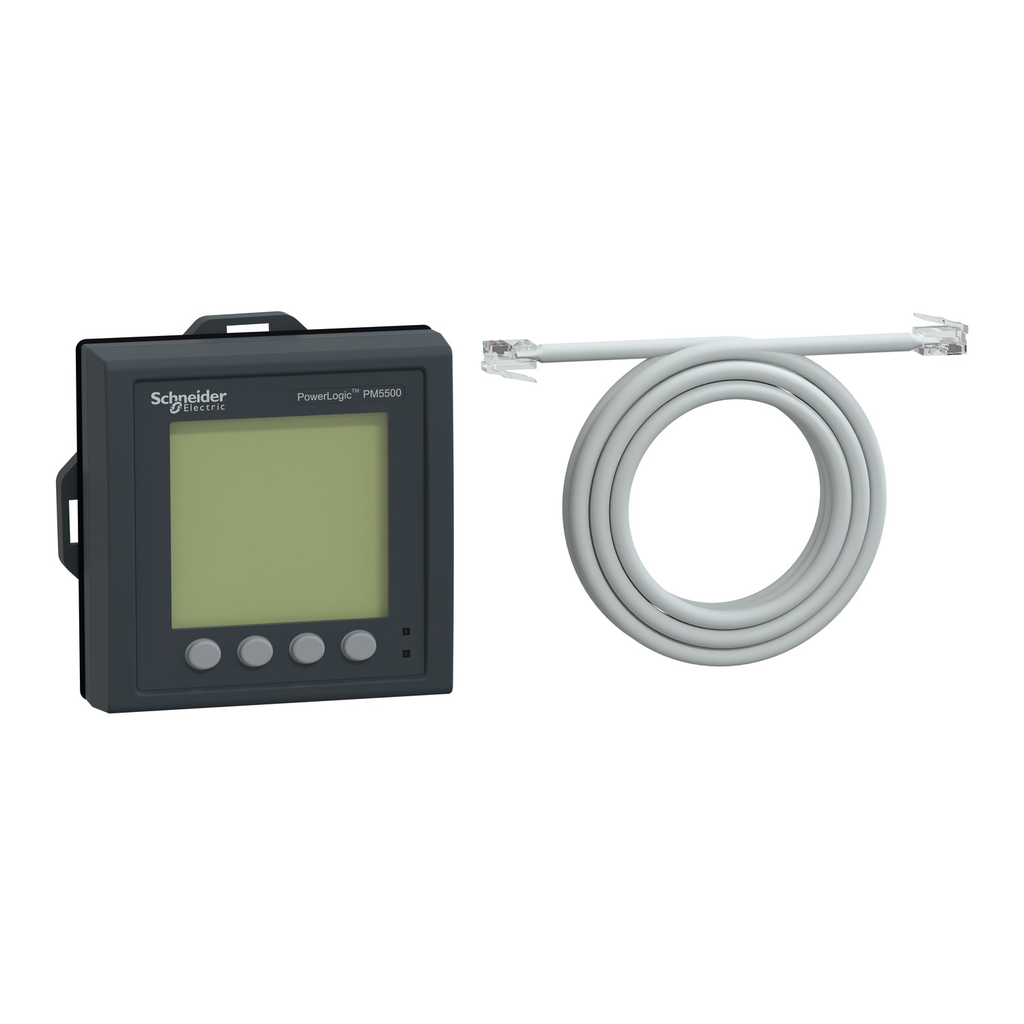

Optional remote display kit for the PowerLogic PM5000 DIN mount variant. 96mm by 96mm monochrome graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage and current. Viewable area: backlight LCD, 128 pixels by 128 pixels. This display is installed flush mounted, an enclosure door for example. Ingress Protection IP52 rating.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 67 x 62.5 mm
• Embedding Depth : 21 mm
• Projecting Depth : 27 mm
• Display Color : monochrome
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Control Type : 4 x push-button
• Information Displayed : power, energy consumption, harmonic distortion, frequency, voltage, current
• Local Signalling : communication LED Green), programming indication LED amber)
• Messages Display Capacity : 6 lines, graphic objects (bargraph, button, light...)
• Mounting Support : framework remote display
• Carbon Footprint Of The Distribution Phase A4 : 0.1426843681485142, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.7066134018910608
• Carbon Footprint Of The Installation Phase A5 : 0.02680845748277467, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 25 kg CO2 eq., 25.17765245354826
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 232 kg CO2 eq., 232.1383781494962
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-24
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : Yes
• Traceability : Yes
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1412029_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2009
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Connector Type : RJ45
• Device Application : human-machine dialogue application
• Display Resolution : 128 x 128 pixels
• Display Type : Backlit LCD
• Energy Efficiency Optimized : False
• Mounting Mode : flush-mounted
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : remote display
• Range : PowerLogic
• Returnability : Yes
• Software Version : v6.2.3
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 258 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : monochrome
• Warranty In Months : 18
• Pep Code : ENVPEP1412029EN
• Database Version : 2024-01
• Pep Verification Date : 2025-03-18
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : referent product
• Functional-unit Description : The PowerLogic™ PM5RD is designed as communication module for use in both energy management systems and building management systems. It provides the measurement capabilities needed to allocate energy usage, perform tenant metering and subbilling, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality of the electrical network during the lifetime of 10 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2020; India, IN
• Recyclability Potential, In % : 10
• Offer Owner Code : 190781
• Pn : 1
• Height Nominal : 96 mm
• Width Nominal : 96 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Ip Degree Of Protection : IP52 IEC 60529
• Relative Humidity : 5-95 % 37-37 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 258.19213683056677
• Circularity Profile : ENVEOLI1412029_V2
• Environmental Disclosure : ENVPEP1412029EN
• Eu Rohs Directive : Compliant
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1412029EN
• Pep Verification Date : 2025-03-18
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : remote display
• ETIM
• ETIM 8 : EC000783
• ETIM 9 : EC000783
• Specifications
• Country of Origin : Brazil, France, India, United States
