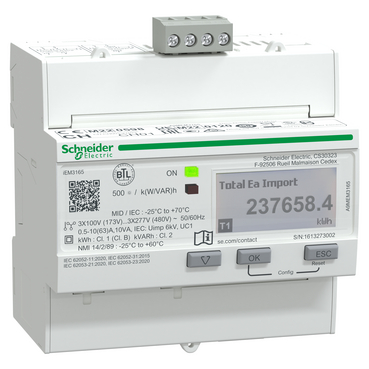

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Complementary
• Network Frequency : 60 Hz || 50 Hz
• Communication Port Support : screw terminal block RS485
• Output Voltage : 5...40 V DC@50 mA
• Sampling Rate : 32 samples/cycle
• Number Of Outputs : 1 digital (static)
• Mounting Support : DIN rail
• Maximum Value Measured : 99999999.9 kWh
• Standards : BS EN 61557-12:2021 || IEC 61557-12:2021 || EN 61557-12:2021 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11:2020 || IEC 62052-11:2020 || EN 62052-11:2020 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62052-23 || IEC 62053-23:2020 || EN 62052-23 || BS EN 62052-31:2015 || IEC 62052-31:2015 || EN 62052-31:2015 || BS EN 61010-1:2010 || EN 61010-1:2010 || IEC 61010-1:2010 || UL 61010-1:2010 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || BS EN 50470-3 || EN 50470-3 || BS EN 50470-1 || EN 50470-1 || ANSI C12.16
• Type Of Measurement : active and reactive energy || active and reactive power || current || voltage
• Communication Port Protocol : BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds 4000 V
• Product Certifications : CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || EAC EN 50470-3 sub-meter) || RCM EN 62052 sub-meter) || KZ EN 50470-3 sub-meter) || METAS EN 50470-1 sub-meter) || MID EN 50470-3 sub-meter) || MID EN 50470-1 sub-meter) || NMI NMI M 6-1
• Number Of Inputs : 1 digital 0...5 V/11...40 V 24 V DC
• Measurement Current : 0-63 A
• Connections - Terminals : screw terminals 16-16 mm²
• Information Displayed : tariff 4)
• Mounting Mode : clip-on
• Local Signalling : Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload
• Technology Type : electronic
• Poles Description : 1P + N || 3P + N || 3P
• Compatibility Code : iEM3165
• Line Rated Current : 63 A
• Analogue Input Type : direct connection
• Display Type : LCD display
• Overvoltage Category : III
• Device Application : multi-tariff || partial meter || sub billing
• Metering Type : active, reactive, apparent energy (signed, four quadrant)
• Accuracy Class : class 1 active energy IEC 62053-21 || class 1 active energy IEC 61557-12 || class B active energy EN 50470-3
• Rated Voltage : 100-277 V || 173-480 V
• Specifications
• Country of Origin : China
• Width : 90 mm
• Height : 95 mm
• Product Or Component Type : energy meter
• Market Segment : buildings small building cost management: billing: main incomer || buildings small building cost management: billing: sub feeder || buildings small building cost management: billing: panelboard || buildings medium building cost management: billing: main incomer || buildings medium building cost management: billing: sub feeder || buildings medium building cost management: billing: panelboard || buildings large building cost management: billing: main incomer || buildings large building cost management: billing: sub feeder || buildings large building cost management: billing: panelboard || buildings multi-site cost management: billing: main incomer || buildings multi-site cost management: billing: sub feeder || buildings multi-site cost management: billing: panelboard || data center cost management: billing || healthcare cost management: billing || industry cost management: billing || buildings small building cost management: cost allocation: main incomer || buildings small building cost management: cost allocation: sub feeder || buildings small building cost management: cost allocation: panelboard || buildings medium building cost management: cost allocation: main incomer || buildings medium building cost management: cost allocation: sub feeder || buildings medium building cost management: cost allocation: panelboard || buildings large building cost management: cost allocation: main incomer || buildings large building cost management: cost allocation: sub feeder || buildings large building cost management: cost allocation: panelboard || buildings multi-site cost management: cost allocation: main incomer || buildings multi-site cost management: cost allocation: sub feeder || buildings multi-site cost management: cost allocation: panelboard || data center cost management: cost allocation || healthcare cost management: cost allocation || industry cost management: cost allocation
• Product Name : Acti9 iEM3000
• Range : Acti9
• Device Short Name : iEM3165
• Environment
• Height : 95 mm
• Ambient Air Temperature For Operation : -25-55 °C - MID || -25-70 °C - IEC || -25-60 °C - IEC
• Pollution Degree : 2
• 9 Mm Pitches : 10
• Color : White
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 5-95 % 50-50 °C
• Ip Degree Of Protection : IP40 front panel: conforming to IEC 60529 || IP20 body: conforming to IEC 60529
• Width : 90 mm
• Depth : 69 mm
• Operating Altitude : < 9842.52 ft (3000 m)
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP111276EN
• Packaging Without Single Use Plastic : No
• Scip Number : fea98f47-5456-4792-b57a-61093788c0c9
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI111261EN_V1
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
