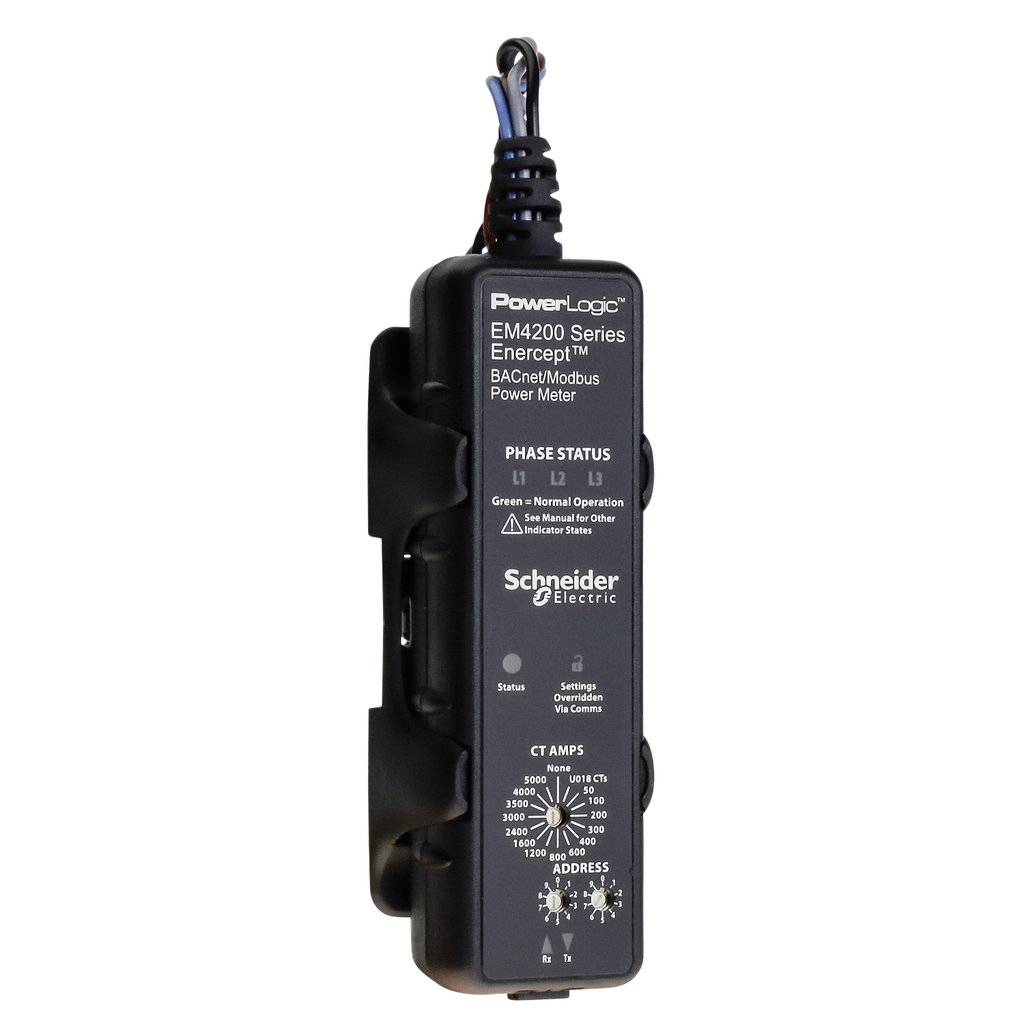

The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. ANSI version, can be associated with an optional fuse pack. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Of Data : remote control orders, total energy, net energy
• Communication Port Protocol : Modbus RTU 9600 bauds...115200 bauds (automatic detection), BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
• Physical Attributes
• Wire Stripping Length : 6 mm
• Important Information Attributes
• Control Type : ADDRESS 1-99 rotary, CT AMPS 5-5000 rotary
• Electromagnetic Compatibility : immunity to radiated fields conforming to EN 61326-1conducted and radiated emissions conforming to FCC Part 15 class A, conducted and radiated emissions conforming to EN 61000-6-4, conducted and radiated emissions conforming to EN 61326 + A1, immunity to conducted disturbances conforming to EN 61000-6-2, immunity to conducted disturbances conforming to EN 61326-1, immunity to radiated fields conforming to EN 61000-6-2
• Function Available : external synchronisation to communication, fixed or rolling block
• Local Signalling : status LED green and red), line fault 3 LED green, orange and red), dial pointer indication LED Yellow), RX/TX 2 LED green, orange and red)
• Measurement Category : category III 277-277 V, category III 300-300 V
• Measurement Voltage : 90-90 V AC 45...65 Hz minimum per phase, 480-480 V AC 45...65 Hz between phases, 300-300 V AC 45...65 Hz between phase and neutral
• Metering Type : active, reactive, apparent energy (signed, four quadrant), apparent power S, S1, S2, S3, demand power P, Q, S, active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, power factor, average current Iavg, peak demand power PM, QM, SM, frequency, voltage U21, U32, U13, V1, V2, V3
• Mounting Mode : by screws, clip-on, by hook
• Mounting Support : enclosure, DIN rail
• Network Frequency : 50 Hz, 60 Hz
• Provided Equipment : bracket for support, hook
• Connections Terminals : input/output plug-in connector bottom) 0.2-1.5 mm², current transformer plug-in connector bottom) 0.2-1.5 mm², communication plug-in connector bottom) 0.2-1.5 mm²
• Carbon Footprint Of The Distribution Phase A4 : 0.1970375204382896, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 0.9755763687219109
• Carbon Footprint Of The Installation Phase A5 : 0.01432667673015853, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.58429464368119
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 57 kg CO2 eq., 57.2988440273964
• Certificate Agency : CE conforming to EN 61010-1, cULus conforming to UL 61010-1, BTL, ANSI
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310121EN&p_File_name=PLSED310121EN_Web.pdf, PLSED310121EN
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506060EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2036
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Device Application : power monitoring
• Device Short Name : Enercept
• Display Type : Without Display
• Energy Efficiency Optimized : False
• Form Factor : flex
• Frequency Measurement Range : 45-65 Hz
• Measurement Current : 50-5000 A
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Name : PowerLogic EM4200
• Product Or Component Type : energy meter
• Range : PowerLogic
• Returnability : Yes
• Software Version : v6.2.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 77 kg CO2 eq.
• Type Of Cable : ANSI cable
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2506060EN
• Database Version : 2024-01
• Pep Verification Date : 2025-10-29
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 119.136
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Offer Owner Code : 190781
• Pn : 1
• Height Nominal : 152.36 mm
• Width Nominal : 46.63 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Operating Altitude : < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
• Relative Humidity : 0-95 %
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 77.07007923696796
• Ambient Air Temperature For Operation : -30-70 °C-30-70 °C
• Circularity Profile : ENVEOLI2506060EN
• Environmental Disclosure : ENVPEP2506060EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506060EN
• Pep Verification Date : 2025-10-29
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : bracket for support, hook
• Product Or Component Type : energy meter
• ETIM
• ETIM 8 : EC001506
• ETIM 9 : EC001506
• Output Attributes
• Number Of Outputs : 0
• Input Attributes
• Analogue Input Type : current 0.333 V (impedance 33 kOhm), voltage (impedance 2.5 MOhm)single phase, voltage (impedance 5 MOhm)phase to phase
• Number Of Inputs : 0
• Specifications
• Country of Origin : Costa Rica, Mexico, United States
• Depth : |35.81 mm
