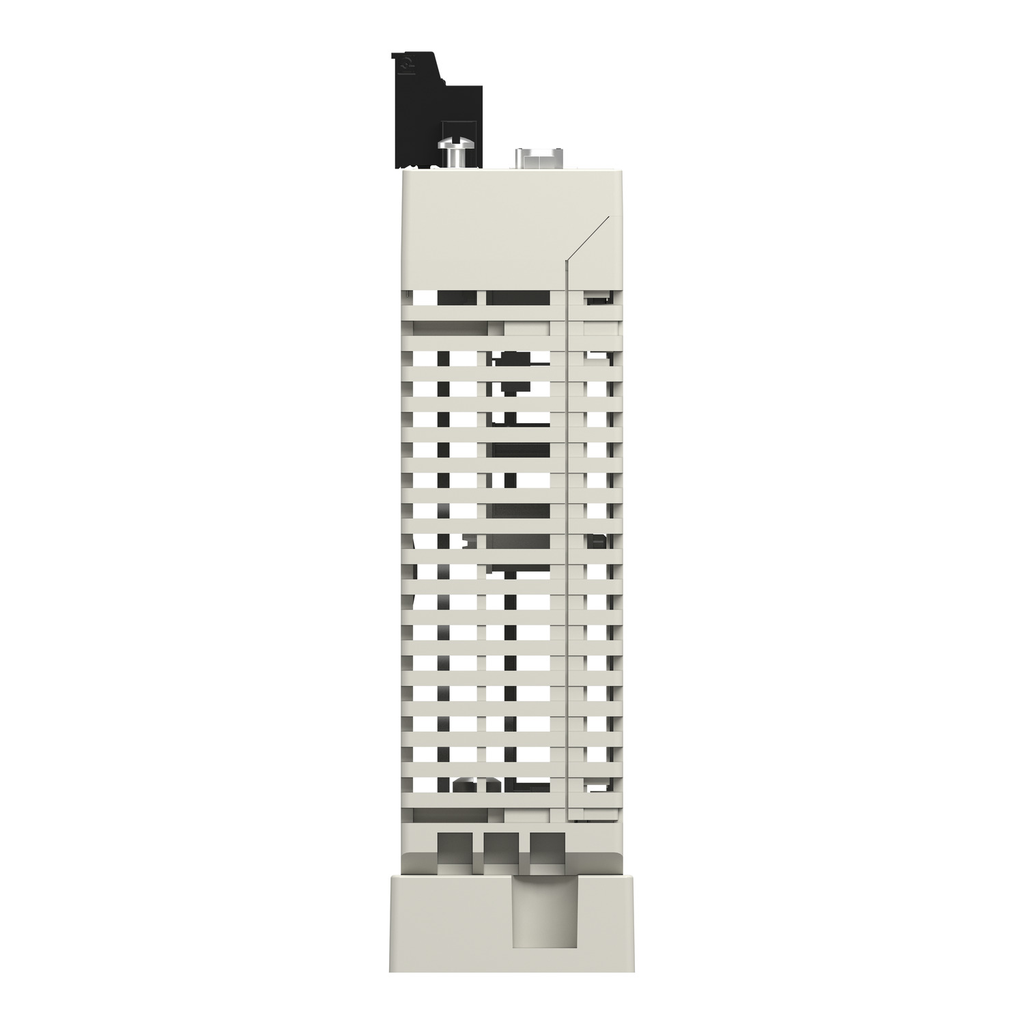

This proxy module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This module has 128 slaves, 10/100BASE-T and RS485 physical interfaces. It is a proxy module with an external current consumption 300mA at 24V DC.

• Current Consumption
• 300 mA 24 V DC external
• Range Compatibility
• Modicon M340
• Modicon M580
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Communication Service
• Modbus TCP messaging
• peer cop dialogue
• Modbus Plus messaging
• configuration control
• diagnostics
• Modbus Plus server (scanned by the PLC)
• FDR
• SNMP network management
• read/write variables
• Global Data
• Transmission Support Medium
• Modbus Plus single twisted pair cable
• Modbus TCP category 5 shielded twisted pair (STP)
• Method Of Access
• token ring Modbus Plus
• CSMA/CD Modbus TCP
• Relative Humidity
• 10-95 % without condensation
• Integrated Connection Type
• 2 Ethernet TCP/IP - RJ45 Modbus TCP
• 2 Modbus - SUB-D 9 Modbus Plus
• Transmission Rate
• 1 Mbit/s, 450 m Modbus Plus per segment
• 1 Mbit/s, 1800 m Modbus Plus with 3 repeaters
• 1

• Communications & Management Attributes
• Communication Gateway : Ethernet Modbus TCP to Modbus Plus
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2024
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Module Format : standard
• Number Of Server Device S : 128
• Package Weight Lbs : 690.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Modbus Plus proxy module
• Range Of Product : Modicon X80
• Returnability : Yes
• Structure Type : industrial bus
• Sustainable Packaging : Yes
• General Attributes
• Product Or Component Type : Modbus Plus proxy module
• Range Of Product : Modicon X80
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=15035556&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -45-85 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : <= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
