SQUARE D

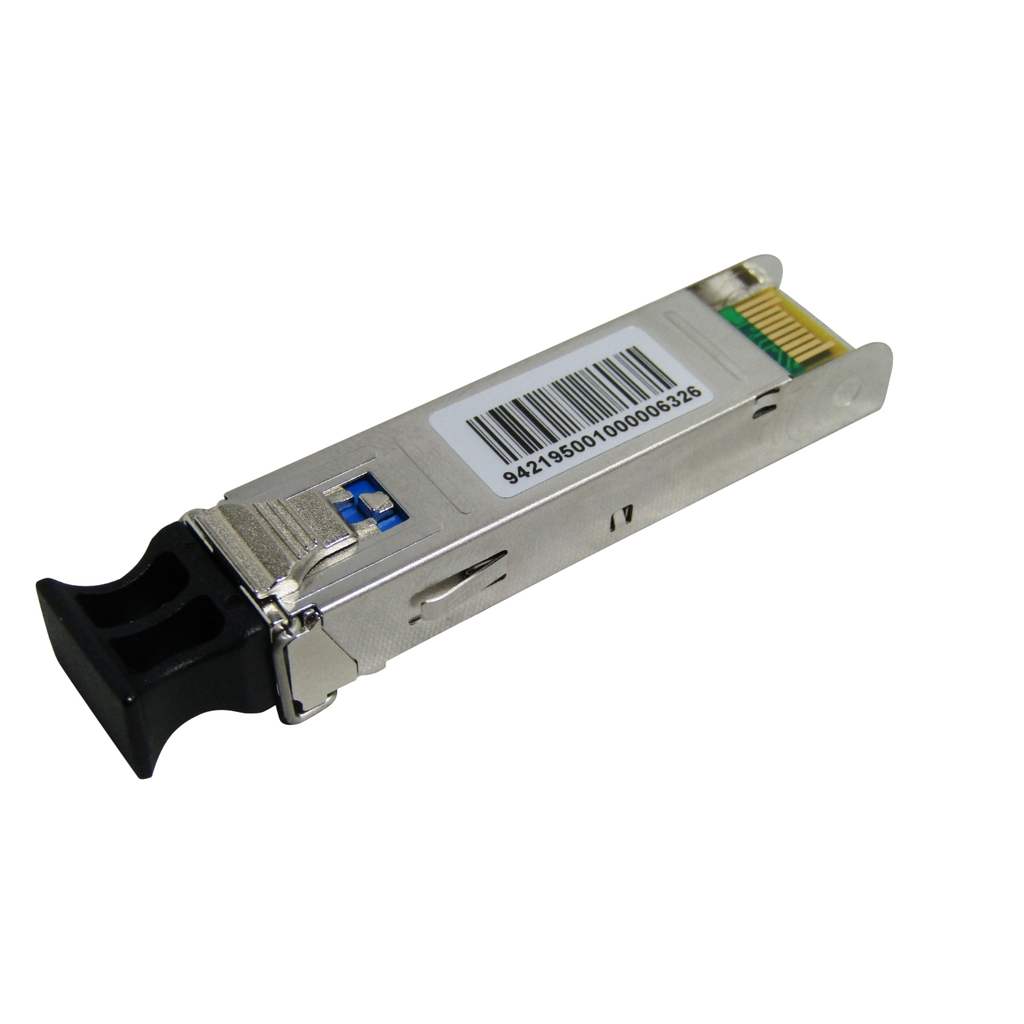

Fiber SFP module for TCSESM switches - 1000BASE-SX, multimode

CONNEXIUM FIBER MODULE SFP-SX/

SQDTCSEAAF1LFU00 TCSEAAF1LFU00 3595863892499
826.80 / EA
http://schema.org/OutOfStock
Mayer-DDS-Fiber SFP module for TCSESM switches - 1000BASE-SX, multimode-1
  • Country of Origin: Malaysia
  • Depth: 50 mm
  • Height: 18 mm
  • Net Weight: 0.04 kg
  • Warranty Length: 18 mth
  • Weight: 0.04 kg
  • Width: 20 mm
This product is part of the Modicon Networking range, an accessory of Modicon Switch. This product is a multi mode fiber optic adaptor. It comes with 1000BASE-SX Ethernet port. Its dimensions are 20mm (width) x 18mm (height) x 50mm (depth) and weighs 0.040 kg. It is compatible with MCSESM and TCSESM switch. The Modicon Switch range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon Networking range, an accessory of Modicon Switch. This product is a multi mode fiber optic adaptor. It comes with 1000BASE-SX Ethernet port. Its dimensions are 20mm (width) x 18mm (height) x 50mm (depth) and weighs 0.040 kg. It is compatible with MCSESM and TCSESM switch. The Modicon Switch range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Scip Number : 4ef40d87-1149-40ff-8202-2b7600a9a574
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 18 mm
    • Net Weight : 0.04 kg
    • Port Ethernet : 1000BASE-SX
    • Width : 20 mm
    • Depth : 50 mm
    • Product Compatibility : MCSESM switch || TCSESM switch
  • Specifications
    • Country of Origin : Malaysia
    • Width : 20 mm
    • Height : 18 mm
    • Weight : 0.04 kg
    • Range Of Product : Modicon Networking
    • Accessory / Separate Part Designation : fiber optic adaptor
    • Mode Of Transmission : multi mode 50/125 µm || multi mode 62.5/125 µm
    • Accessory / Separate Part Category : connection accessories
    • Product Or Component Type : SFP module
    • Accessory / Separate Part Type : fiber optic adaptor
    • Accessory / Separate Part Destination : gigabit ports with LC connector
