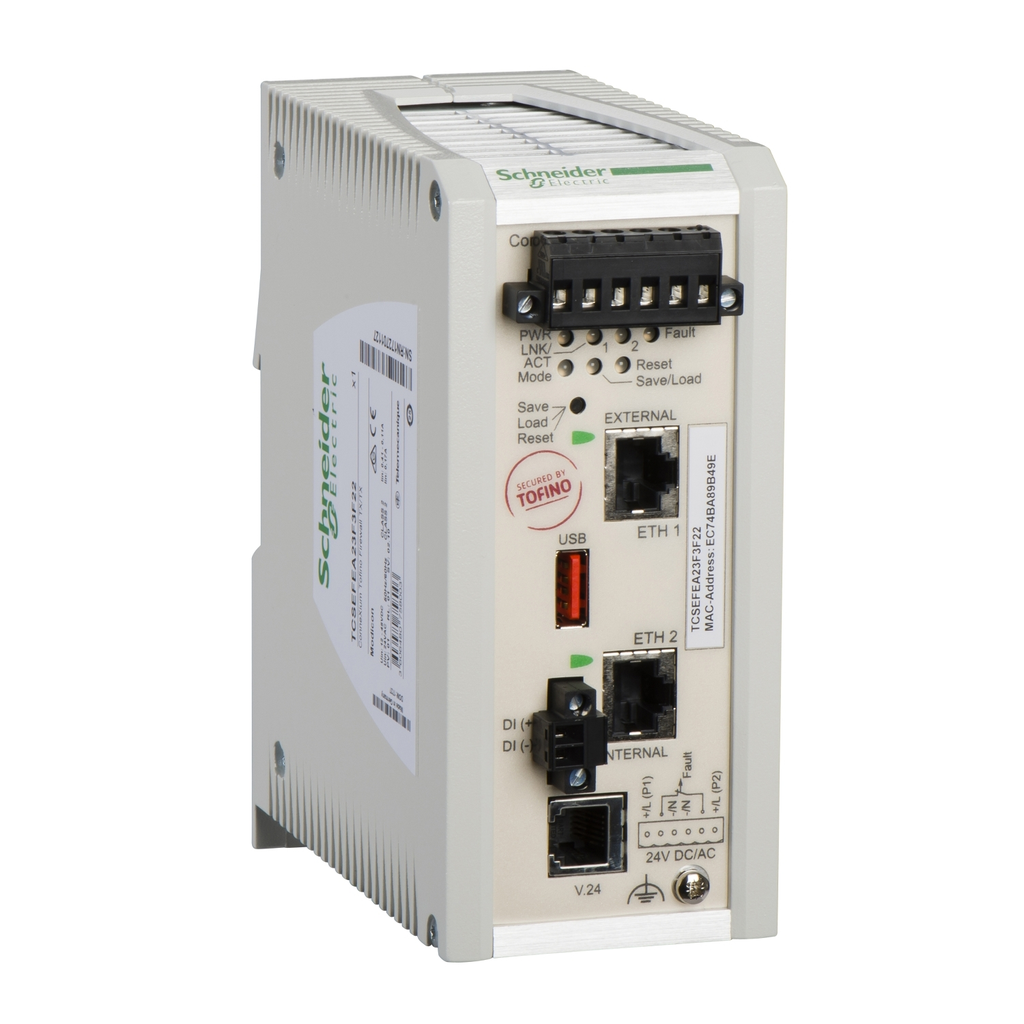

firewall, Modicon Networking, industrial firewall, 2 ports for copper

CONNEXIUM INDUST FIREWALL/ROUT

SQDTCSEFEC23F3F21 TCSEFEC23F3F21 3606480757983
1579.78 / EA
http://schema.org/OutOfStock
  • Depth: 125 mm
  • Weight: 610 g
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
  • Features
    • Virtual Private network (VPN) and IPSec increase authentication and encryption across zones
    • Firewall rules police can be applied on traffic of per packet or per frame granularity
    • Network Address Translation (NAT) help to protect and transmit data across the network at the high level of security
    • Achieve network segmentation and easy switchover between bridge mode and route mode
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Alarm Function : power supply fault, data link status, switch fault, temperature threshold, external memory removed
    • Communication Port Protocol : Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, RS232
    • Alarm Output : 1 voltfree contact 1 A
    • Communication Service : port monitoring
  • Complementary Attributes
    • Integrated Connection Type : shielded RJ45 copper cable
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • Us Rated Supply Voltage : 12...48 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Cybersecurity : Syslog protocol support, IPSec
    • Diagnostics Run Time : signal contact, self test, MAC notification
    • Ethernet Service : multicast filtering, syslog
    • Function Available : system information, report, IP Firewall list, configuration check, reachability test (ping), alarms (Traps)
    • Local Signalling : 2 LEDs (green) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for internal port status, 1 dual colour LED (green/yellow) for serial port status
    • Marking : CE, UL, RCM
    • Redundancy : redundant network coupling, router redundancy
    • Certificate Agency : CE, UL, RCM, UKCA, DNV
    • Carbon Footprint Of The Distribution Phase A4 : 0.15132018773903544, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.1249094208106103
    • Carbon Footprint Of The Installation Phase A5 : 0.028429698863940058, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 6 kg CO2 eq., 6.444658381558657
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 295 kg CO2 eq., 294.776757932321
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : N
    • Device Type : Networking and Cable Solutions - Networking Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2024
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Electrical Connection : removable connector 6 ways power supply
    • Encryption Protocol : MAC addresses filtering
    • Energy Efficiency Optimized : False
    • Ethernet Cabling System : TF switches
    • Mounting Support : 35 mm symmetrical DIN rail
    • Number Of Port : 2
    • Number Of Rj45 Port : 2 10/100 Mbps
    • Port Ethernet : 10/100BASE-TX - 2 copper cable
    • Power Consumption In W : 6.9 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP firewall
    • Range Of Product : Modicon Networking
    • Returnability : No
    • Software Version : v6.2.5-6
    • Supply Voltage Limits : 9.6-60 V DC SELV18-30 V AC SELV
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 303 kg CO2 eq.
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper cable
    • User Interface : built-in firewall
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Height Nominal : 145 mm
    • Width Nominal : 60 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8517620020
    • Warranty In Months : 18
    • Packaging Weight In G : 91.5
    • Functional Unit Description : To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 604.44
    • Recyclability Potential In % : 9
    • Pep End Of Validity Date Calculated : 2030-10-28
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 302.5260756212933
    • Ambient Air Temperature For Operation : 0-60 °C
    • Environmental Disclosure : ENVPEP100304EN_V1
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % non-condensing
    • Pep Code : ENVPEP100304EN_V1
    • Pep Verification Date : 2025-10-28
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP firewall
    • Range Of Product : Modicon Networking
  • ETIM
    • ETIM 8 : EC001478
    • ETIM 9 : EC001478
    • ETIM 10 : EC001478
  • Specifications
    • Country of Origin : Germany, France
    • Weight : 610 g
    • Depth : 125 mm
