SQUARE D

network switch, Modicon Networking, basic managed, 8 ports for copper

CONNEXIUM BASIC SWITCH 8TX

SQDTCSESB083F23F0 TCSESB083F23F0 3595864115429
977.01 / EA
http://schema.org/OutOfStock

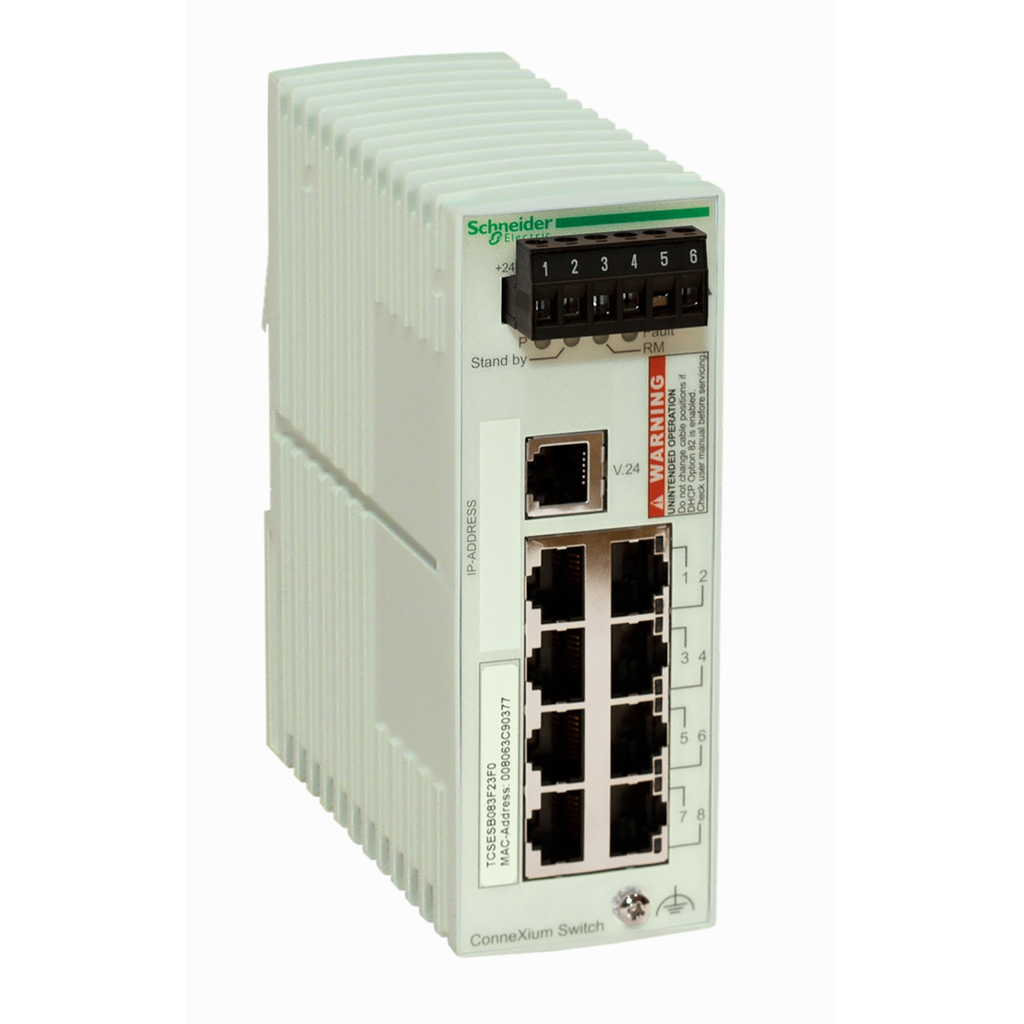

Mayer-DDS-network switch, Modicon Networking, basic managed, 8 ports for copper-1
  • Depth: 111 mm
  • Warranty Length: 18 mth
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
  • Features
    • Entry-level managed switch provide high cost performance with flexibility and features give customers more options
    • Provides simple connectivity for multiple Ethernet devices
    • High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
    • Easy configuration and administration process via based web pages
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Alarm Function : power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, temperature threshold
    • Communication Port Protocol : Ethernet TCP/IP, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP (Media Redundancy Protocol)
    • Communication Service : TFTP, Quality of Service (QoS), port monitoring, port mirroring
    • Alarm Output : 1 voltfree contact 1 A
  • Conformance Attributes
    • Product Certifications : CE, UL, RCM, EAC, CE, UL, RCM, EAC, UKCA
    • Standards : UL 508, EN/IEC 61131
    • Certifications : CE/cULus/RCM/UKCA
  • Complementary Attributes
    • Integrated Connection Type : shielded RJ45 copper cable
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • Maximum Number Of Switches In A Ring : 50
    • Maximum Number Of Switches In Cascade : unlimited
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Diagnostics Run Time : signal contact, self test
    • Ethernet Service : configuration via web server, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
    • Local Signalling : 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status
    • Marking : CE, UL, RCM
    • Redundancy : HiPER ring, RSTP
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Device Type : Networking and Cable Solutions - Networking Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1003004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Cybersecurity : role-based access control
    • Electrical Connection : removable connector 6 ways power supply
    • Ethernet Cabling System : TF switches
    • Function Available : system information
    • Mounting Support : 35 mm symmetrical DIN rail
    • Package Weight Lbs : 412.000 g
    • Port Ethernet : 10/100BASE-TX - 8 copper cable
    • Power Consumption In W : 6 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Range Of Product : Modicon Networking
    • Returnability : Yes
    • Supply Voltage Limits : 9.6-32 V DC SELV
    • Sustainable Packaging : No
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper cable
    • Us Rated Supply Voltage2 : 12...24 V
    • Medium Desc : network switch, Modicon Networking, basic managed, 8 ports for copper
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1003004EN
    • Number Of Rj45 Port : 8 10/100 Mbps
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI1003004EN
    • Environmental Disclosure : ENVPEP1003004EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % non-condensing
    • Pep Code : ENVPEP1003004EN
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Range Of Product : Modicon Networking
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 111 mm
