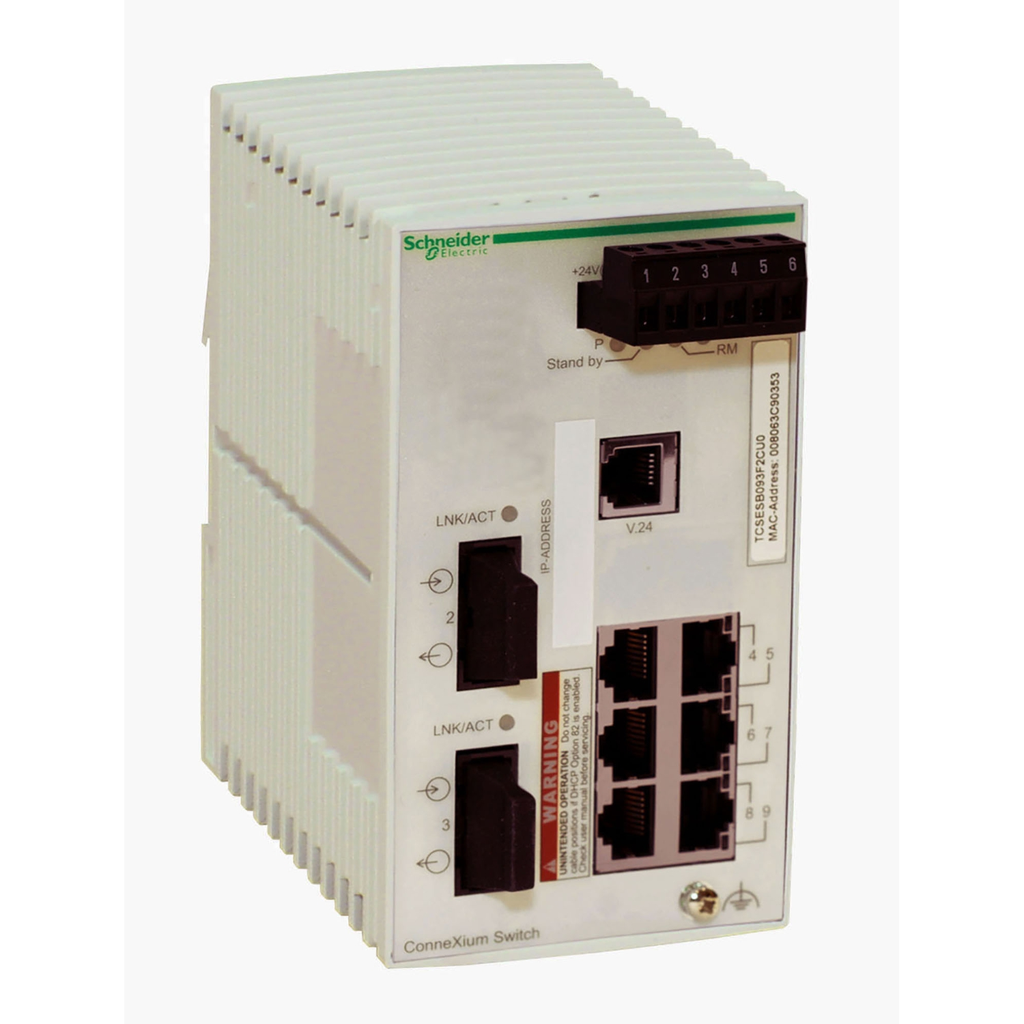

network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode

CONNEXIUM BASIC SWITCH 6TX / 2

SQDTCSESB083F2CU0 TCSESB083F2CU0 3595864115436
1483.17 / EA
http://schema.org/OutOfStock
  • Depth: 111 mm
  • Weight: 410 g
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 2 ports for multimode fiber optic. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 8W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 2 ports for multimode fiber optic. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 8W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Entry-level managed switch provide high cost performance with flexibility and features give customers more options
    • Provides simple connectivity for multiple Ethernet devices
    • High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
    • Easy configuration and administration process via based web pages
  • Communications & Management Attributes
    • Alarm Function : power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, temperature threshold
    • Communication Port Protocol : Ethernet TCP/IP, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP (Media Redundancy Protocol)
    • Communication Service : TFTP, Quality of Service (QoS), port monitoring, port mirroring
    • Alarm Output : 1 voltfree contact 1 A
  • Physical Attributes
    • Optic Fiber Length : 4 km 62.5/125 µm5 km 50/125 µm
  • Complementary Attributes
    • Integrated Connection Type : shielded RJ45 copper cableduplex SC fiber optic
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • Maximum Number Of Switches In A Ring : 50
    • Maximum Number Of Switches In Cascade : unlimited
    • Us Rated Supply Voltage : 12...24 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Attenuation : 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
    • Diagnostics Run Time : signal contact, self test
    • Ethernet Service : configuration via web server, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
    • Local Signalling : 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status
    • Marking : CE, UL, RCM
    • Port Ethernet : 10/100BASE-TX - 6 copper cable, 100BASE-FX - 2 fiber optic
    • Redundancy : HiPER ring, RSTP
    • Certificate Agency : CE, UL, RCM, EAC, UKCA
    • Carbon Footprint Of The Distribution Phase A4 : 0.10170701143115496, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.8 kg CO2 eq., 0.7560866598890987
    • Carbon Footprint Of The Installation Phase A5 : 0.019108486121664627, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 4.331655633506638
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 342 kg CO2 eq., 341.7701541244301
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-07-16
    • Return Indicator : Y
    • Device Type : Networking and Cable Solutions - Networking Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1003004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2024
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Cybersecurity : role-based access control
    • Electrical Connection : removable connector 6 ways power supply
    • Energy Efficiency Optimized : False
    • Ethernet Cabling System : TF switches
    • Function Available : system information
    • Mounting Support : 35 mm symmetrical DIN rail
    • Number Of Port : 8
    • Number Of Rj45 Port : 6 10/100 Mbps
    • Number Of Uplink Port : 2 F/O multi mode 100 Mbps
    • Power Consumption In W : 8 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Range Of Product : Modicon Networking
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Supply Voltage Limits : 9.6-32 V DC SELV
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 347 kg CO2 eq.
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E fiber opticmultimode optical fiber copper cable
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Height Nominal : 131 mm
    • Width Nominal : 74 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8517620090
    • Warranty In Months : 18
    • Packaging Weight In G : 61.5
    • Functional Unit Description : To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 6 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 700.8
    • Recyclability Potential In % : 9
    • Pep End Of Validity Date Calculated : 2030-10-28
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 346.97871191537865
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI1003004EN
    • Environmental Disclosure : ENVPEP100304EN_V1
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % non-condensing
    • Pep Code : ENVPEP100304EN_V1
    • Pep Verification Date : 2025-10-28
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Range Of Product : Modicon Networking
  • ETIM
    • ETIM 8 : EC000734
    • ETIM 9 : EC000734
    • ETIM 10 : EC000734
  • Specifications
    • Country of Origin : Germany, United States
    • Weight : 410 g
    • Depth : 111 mm
