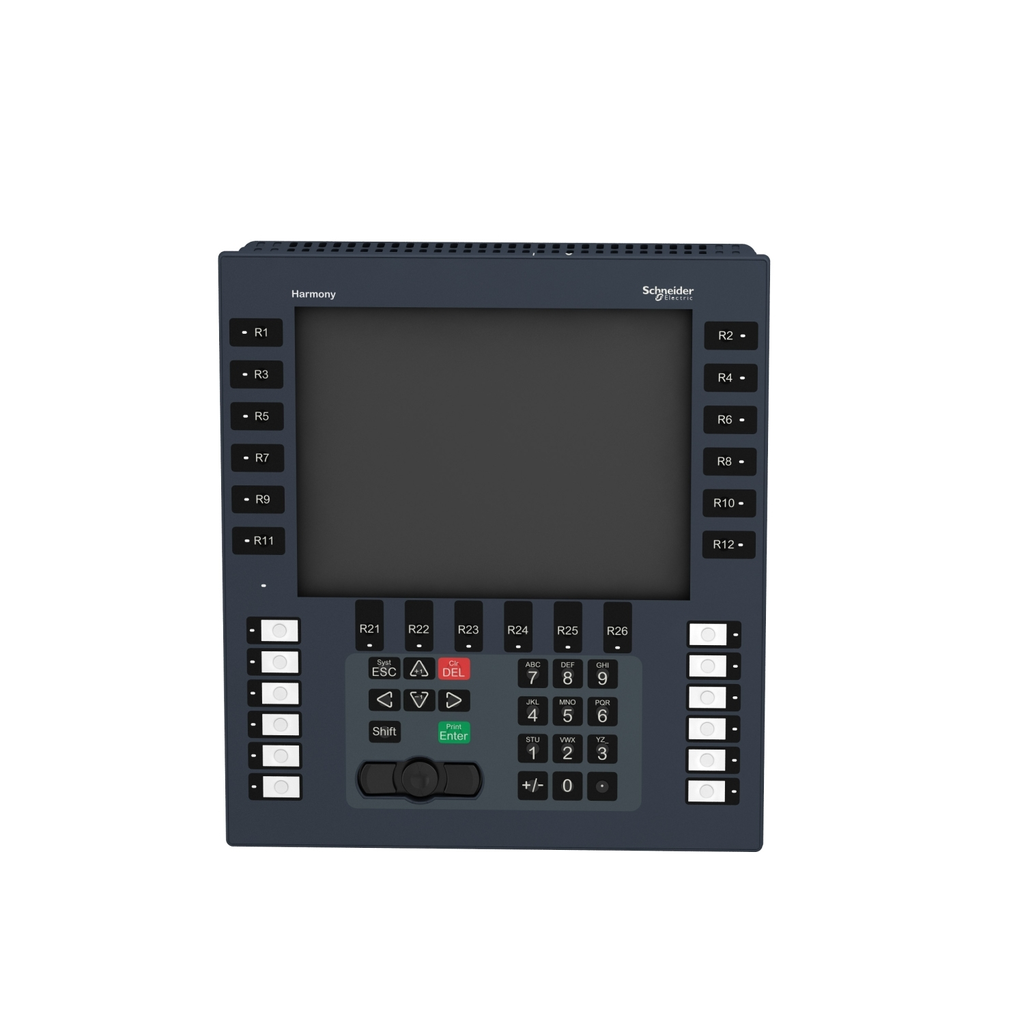

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with, 640 x 480 pixels (VGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 18 dynamic function keys, 12 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 10.4 inch
• Display Color : 65536 colours
• Conformance Attributes
• Product Certifications : cULus, EAC, UL Class 1 Division 2 T5, KC, UL Class 1 Division 2 T4A, RCM, CSA Class 1 Division 2 T4A, CSA Class 1 Division 2 T5, UKCA
• Standards : IEC 61000-6-2, IEC 61000-6-4, CSA C22.2 No 213, UL 61010-2-201, ANSI/ISA 12.12.01, IEC 61131-2
• Complementary Attributes
• Integrated Connection Type : <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), USB 2.0 type A master Modicon M340 terminal port communication, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, removable screw terminal block power supply, RJ45 Ethernet TCP/IP, USB 2.0 type mini B
• Us Rated Supply Voltage : 24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : Japanese (ANK, Kanji), Korean, ASCII (European characters), Taiwanese (traditional Chinese), Chinese (simplified Chinese)
• Downloadable Protocols : Telemecanique Modicon FIPWAY, Telemecanique Modicon Modbus Plus, Telemecanique Modicon Modbus TCP, Telemecanique Modicon Modbus, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Telemecanique Modicon Uni-TE
• Electromagnetic Compatibility : resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3, resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4
• Memory Description : 512 KB SRAM back up of data lithium battery, 128 MB flash EPROM application memory
• Memory Type : up to 32 GB SD card RAM, up to 32 GB SDHC card RAM
• Vibration Resistance : 1 gn 9-150 Hz)IEC 60068-2-6, 3.5 mm 5-9 Hz)IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 1.781650901020475, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 6.585237405782681
• Carbon Footprint Of The Installation Phase A5 : 0.08301191789874558, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 244 kg CO2 eq., 243.508267769238
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 366 kg CO2 eq., 366.33797418445545
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2312019EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2513
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• Product Kit Identifier : N
• Brightness : 16 levels via touch panel
• Cut Out Dimensions : 285 (+/- 0.4) x 309 (+/- 0.4) mm
• Display Resolution : 640 x 480 pixels VGA
• Display Type : backlit colour TFT LCD
• Enclosure Material : PPT
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Fixing Mode : by 12 spring clips
• Front Material : aluminium alloy
• Halogen Free Status : Product contains halogen above thresholds
• Immunity To Microbreaks : 10 ms
• Inrush Current : 30 A
• Local Signalling : 1 LED (green or orange) for normal operation or backlighting faulty
• Marking : CE
• Mounting Mode : flush mounting
• Number Of Alphanumeric Keys : 12
• Number Of Dynamic Function Keys Symb : 18 with LED
• Number Of Pages : limited by internal memory capacity
• Number Of Service Keys : 8
• Number Of Static Function Keys : 12 with LED and labels
• Operating System : Harmony
• Port Ethernet : 10BASE-T/100BASE-TX
• Power Consumption In W : 11.4 W
• Processor Frequency : 333 MHz
• Processor Name : ARM926EJ-S
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : touchscreen panel with keypad
• Range Of Product : Harmony GK
• Realtime Clock : built-in
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Software Designation : Vijeo Designer
• Software Package : Vijeo Designer
• Software Type : configuration software
• Software Version : v6.3.1
• Supply : external source
• Supply Voltage Limits : 19.2-28.8 V
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 618 kg CO2 eq.
• Touch Panel : analogue
• Touch Sensitive Zone : 1024 x 1024
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : 65536 colours
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP2312019EN
• Database Version : 2024-01
• Pep Verification Date : 2025-09-15
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To provide 10.4" VGA -10.4" Keypad-touchscreen panelduring 10 years and maximum use rate at 16.2W, based on below function:& 10 - 10.4" Touchscreen panel& 10 - Function/Cursor keys& 10 - Mouse pointer& 10 - Alphanumeric keypad & 10 - USB 2.0 (type A,type mini B)& 10 - Serial interface (RS-485,RS-232C)& 10 - Ethernet interface & 10 - SD Card interface& 10 - Status LED& 10,in accordance with the relevant standards:& 10 - IEC 61000-6-2& 10 - IEC 61000-6-4& 10 - CSA C22.2 No 213& 10 - UL 61010-2-201& 10 - ANSI/ISA 12.12.01& 10 - IEC 61131-2
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 3694
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 840.96
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Indonesia, ID
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 33
• Offer Owner Code : 190786
• Height Nominal : 332 mm
• Width Nominal : 296 mm
• Environment Attributes Main
• Ip Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 618.2961421783953
• Ambient Air Temperature For Operation : 0-55 °C
• Ambient Air Temperature For Storage : -20-60 °C
• Circularity Profile : ENVEOLI2312019EN
• Environmental Disclosure : ENVPEP2312019EN
• Eu Rohs Directive : Compliant By Exemption
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Nema Degree Of Protection : NEMA 4X front panel (indoor use)
• Operating Altitude : < 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 10-90 % without condensation
• Pep Code : ENVPEP2312019EN
• Pep Verification Date : 2025-09-15
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : touchscreen panel with keypad
• Range Of Product : Harmony GK
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Specifications
• Country of Origin : Argentina, Brazil, China, France, United Kingdom, Mexico, Sweden, United States
• Depth : 76 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
