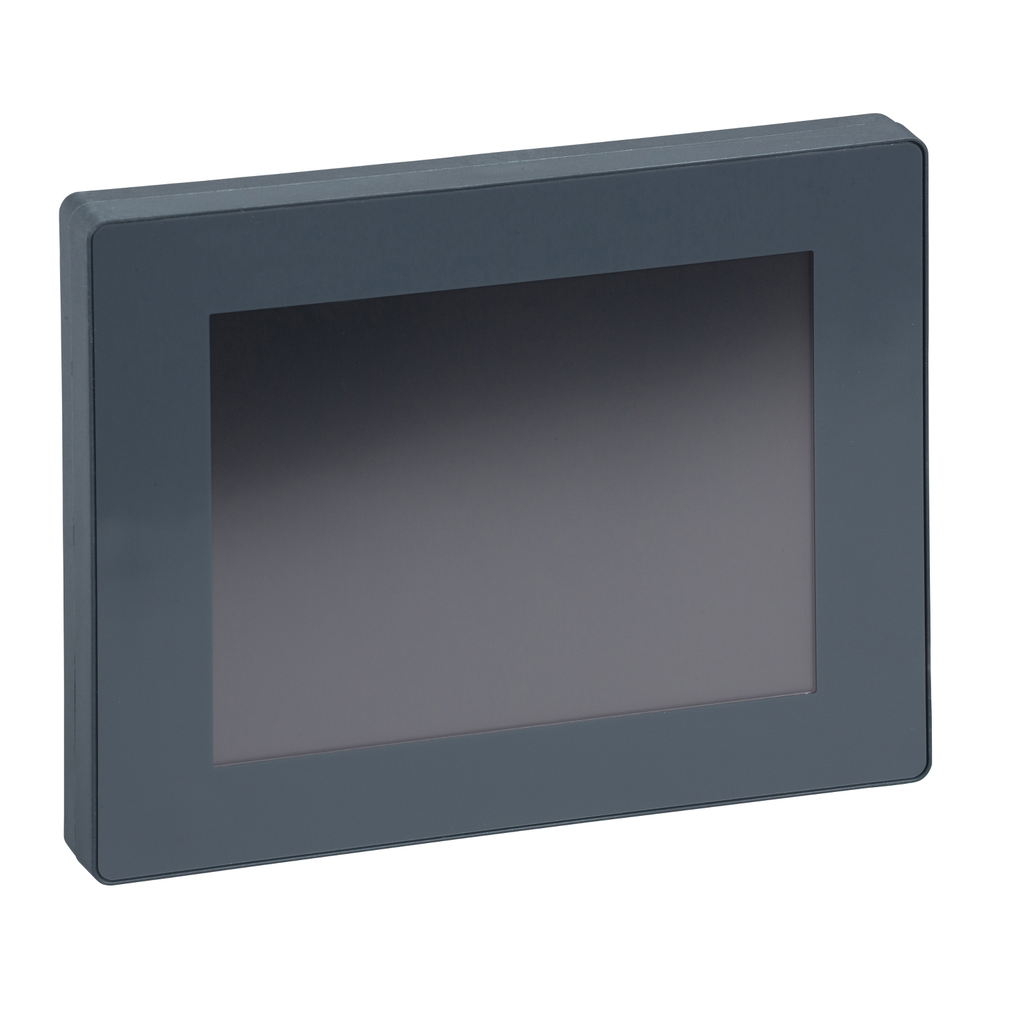

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 5.7inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII and Chinese (simplified Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth) and weighs 0.405kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 5.7 inch
• Conformance Attributes
• Product Certifications : UKCA, UKEX
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII, Chinese (simplified Chinese)
• View Angle Horiz X Vert : 60° left, 60° right, 40° top, 60° bottom
• Carbon Footprint Of The Distribution Phase A4 : 0.0322556391, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0751729323
• Carbon Footprint Of The Installation Phase A5 : 0.002107218, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 35 kg CO2 eq., 35.2906015038
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 108 kg CO2 eq., 107.7958095238
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2101003EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1920
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Brightness : 16 levels via touch panel
• Display Type : backlit LED colour TFT LCD
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Free Status : Product contains halogen above thresholds
• Pixel Resolution : 320 x 240 pixels QVGA
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : small touchscreen display HMI
• Range Of Product : Harmony SCU
• Returnability : No
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 143 kg CO2 eq.
• Touch Panel : analogue
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP2101003EN
• Database Version : 2016-11
• Pep Verification Date : 2021-01-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 250
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 140.16
• Energy Model Manufacturing A1 A3 2 : Energy model used: China
• Energy Model Installation A5 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
• Offer Owner Code : 190786
• Width Nominal : 163 mm
• Environment Attributes Main
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 143.195946817
• Circularity Profile : ENVEOLI2101003EN
• Environmental Disclosure : ENVPEP2101003EN
• Eu Rohs Directive : Compliant By Exemption
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2101003EN
• Pep Verification Date : 2021-01-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : small touchscreen display HMI
• Range Of Product : Harmony SCU
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Specifications
• Country of Origin : China, United States
• Depth : 129.4 mm
