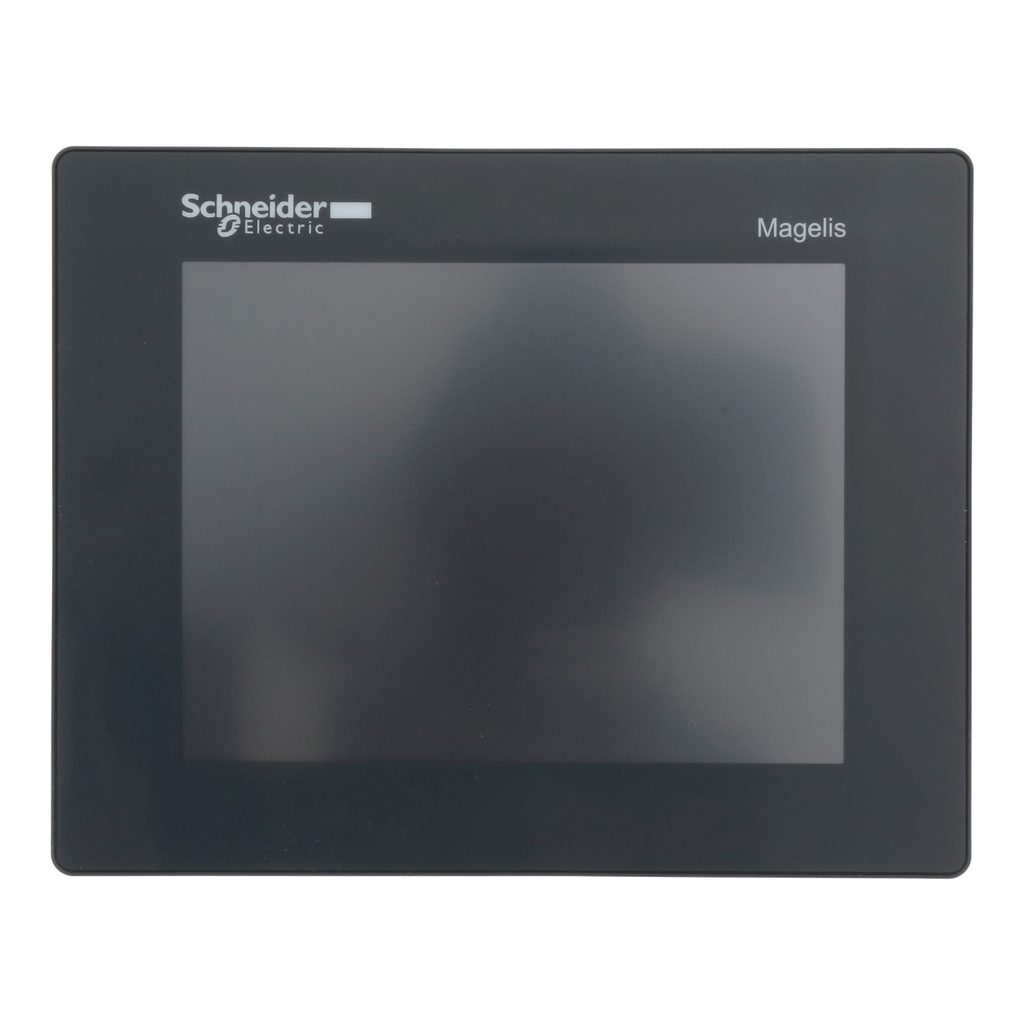

The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 5.7 inch
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : Korean, Chinese (simplified Chinese), ASCII, Taiwanese (traditional Chinese), Japanese (ANK, Kanji)
• View Angle Horiz X Vert : 60° left, 60° right, 40° top, 60° bottom
• Carbon Footprint Of The Distribution Phase A4 : 0.0322556391, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0751729323, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.002107218
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 35 kg CO2 eq., 35.2906015038
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 108 kg CO2 eq., 107.7958095238
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : 5in7 small touchscreen display front module Backlight LED Color TFT LCD
• Manufacturer : Schneider Electric
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2101003EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Display Type : backlit LED colour TFT LCD
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Free Status : Product contains halogen above thresholds
• Package Weight Lbs : 682.000 g
• Pixel Resolution : 320 x 240 pixels QVGA
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : small touchscreen display HMI
• Range Of Product : Harmony SCU
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 143 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2101003EN
• Pep Verification Date : 2021-01-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : BERNARD DUBOIS
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 143.195946817
• Circularity Profile : ENVEOLI2101003EN
• Environmental Disclosure : ENVPEP2101003EN
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2101003EN
• Pep Verification Date : 2021-01-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : small touchscreen display HMI
• Range Of Product : Harmony SCU
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
