This Basic Web HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6 supports 1x Ethernet port, 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 4 inch
• Display Color : 16 million colours
• Complementary Attributes

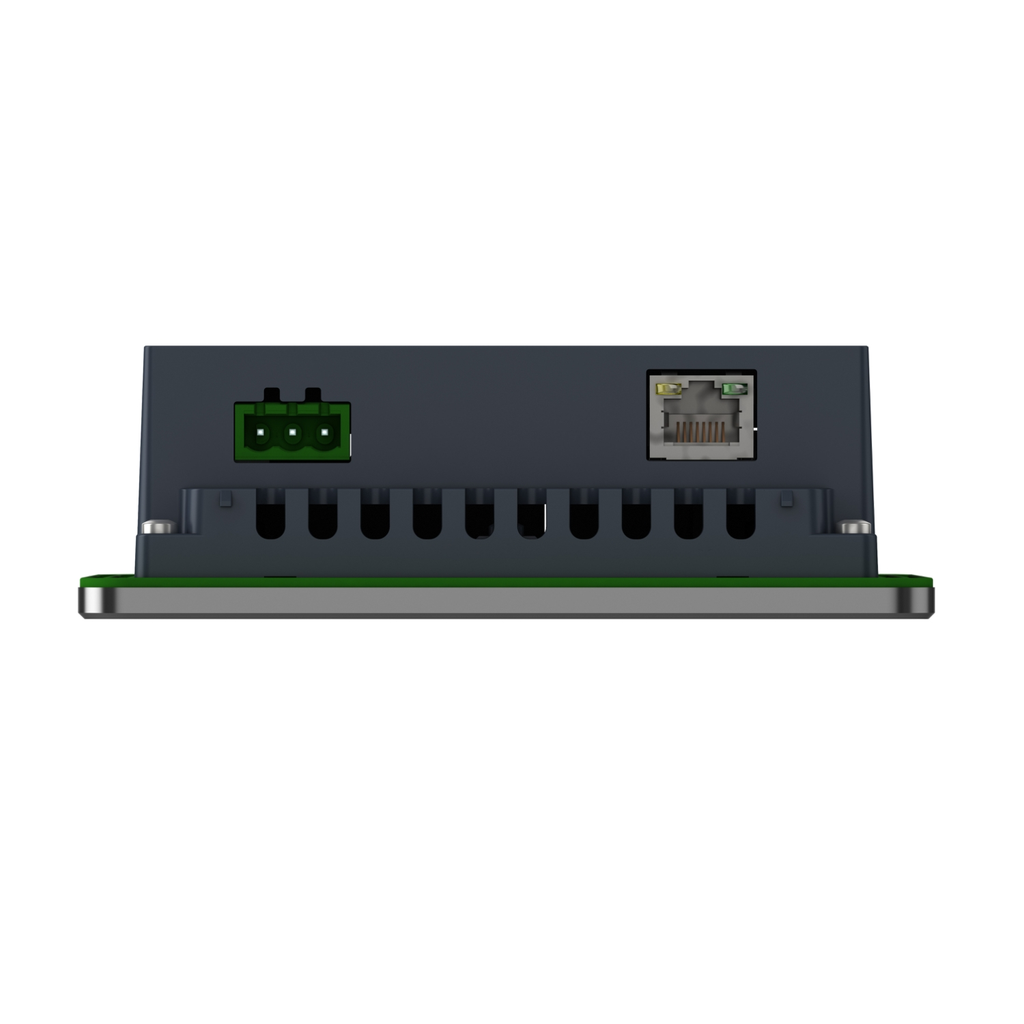

• Integrated Connection Type : 1 USB 2.0 type Aback, 1 Ethernet - female RJ45bottom
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : ASCII, ASCII (European characters), Katakana
• Fixing Mode : by 2 screws 1.6...5 mm thick panel UL 61010-2-201, by 2 screws IEC 61131-2, by 2 screws IEC 61000-6-2
• Local Signalling : status LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
• Memory Description : 512 MB device memory, 512 MB user data memory128 kB backup memory
• Realtime Clock : built-in 0...50 °C, built-in 10...90 % RH
• Vibration Resistance : +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
• Certificate Agency : CSA, CE, UKCA
• Carbon Footprint Of The Distribution Phase [A4] : 0.08166, 0.1 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.67305, 0.7 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.2 kg CO2 eq., 0.17605
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 22 kg CO2 eq., 21.6625
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : 495 kg CO2 eq., 494.6533333333334
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : HMI - Graphical display unit
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Manufacturing Carbon Footprint : 21.6625
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1810005EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2518
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Brightness : 16 levels
• Display Resolution : 480 x 272 pixels
• Display Type : colour TFT LCD
• Electromagnetic Compatibility : electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
• Enclosure Material : PC
• Front Material : aluminium
• Immunity To Microbreaks : 2 ms
• Inrush Current : 30 A
• Marking : CE
• Port Ethernet : 10/100BASE
• Power Consumption In W : 6.9 W
• Processor Name : ARM Cortex-A8
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : touch panel screen
• Range Of Product : Harmony ST6
• Returnability : Yes
• Shock Resistance : 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
• Software Version : v5.9.4
• Supply : external supply
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 517 kg CO2 eq.
• Touch Panel : single touch analogue resistive
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : 16 million colours
• Pep Code : ENVPEP1810005EN
• Database Version : 2022-01
• Pep Verification Date : 2024-09-19
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To provide a HMI during 15 years and a 100% rate at 9W, based on below function:& 10- 7" Touchscreen panel.& 10- I/O connectors(USB and Ethernet) .& 10- IP20 (rear panel) & IP65(front panel) conforming to IEC 61131-2
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime In Y : 15
• Energy Consumption On Product Lifetime In Kwh : 906.66
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; CN
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential In % : 29
• Height Nominal : 108.5 mm
• Width Nominal : 134.5 mm
• [Us] Rated Supply Voltage : 24 V DC +/- 20 %)
• Cut-out Dimensions : 118.5 x 92.5 mm panel cut dimension
• F-gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• F-gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen-free Status : Product contains halogen above thresholds
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 440.000 g
• Silicone-free : No
• Take-back : No
• Warranty (In Months) : 18
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 21.6105
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 21.6625
• Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -2.3924
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 294.295
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 18.1495
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -47.6635
• Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 328.24
• Ecotoxicity (Fresh Water) (Ctue) Installation [A5] : 1.6456
• Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 61.785
• Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] : -64.785
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 37.288
• Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -41.5525
• Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 10.692
• Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] : -1.2157
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 8.8095
• Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 0.5629
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 7.003
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 7.003
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 303.75
• Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 1.9507
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 18.1545
• Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -48.956
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 9.452
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 7.003
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 7.003
• Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 287.295
• Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 18.1495
• Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -46.914
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -1.7107
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 7.5825
• Water Use (M3 Eq) Manufacturing [A1-a3] : 7.6445
• Customs Code : 8537109170
• Environment Attributes Main
• Ambient Air Temperature For Storage : -20-60 °C, -20-60 °C
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 517.2465933333334
• Ambient Air Temperature For Operation : 0-50 °C
• Circularity Profile : ENVEOLI1810005EN
• Environmental Disclosure : ENVPEP1810005EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Product contains halogen above thresholds
• Ip Degree Of Protection : IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
• Nema Degree Of Protection : NEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 10-90 % non-condensing
• Pep Code : ENVPEP1810005EN
• Pep Verification Date : 2024-09-19
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : touch panel screen
• Range Of Product : Harmony ST6
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Specifications
• Country of Origin : Brazil, China, France, Indonesia, Singapore
• Depth : 43 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLEUser replaceable
