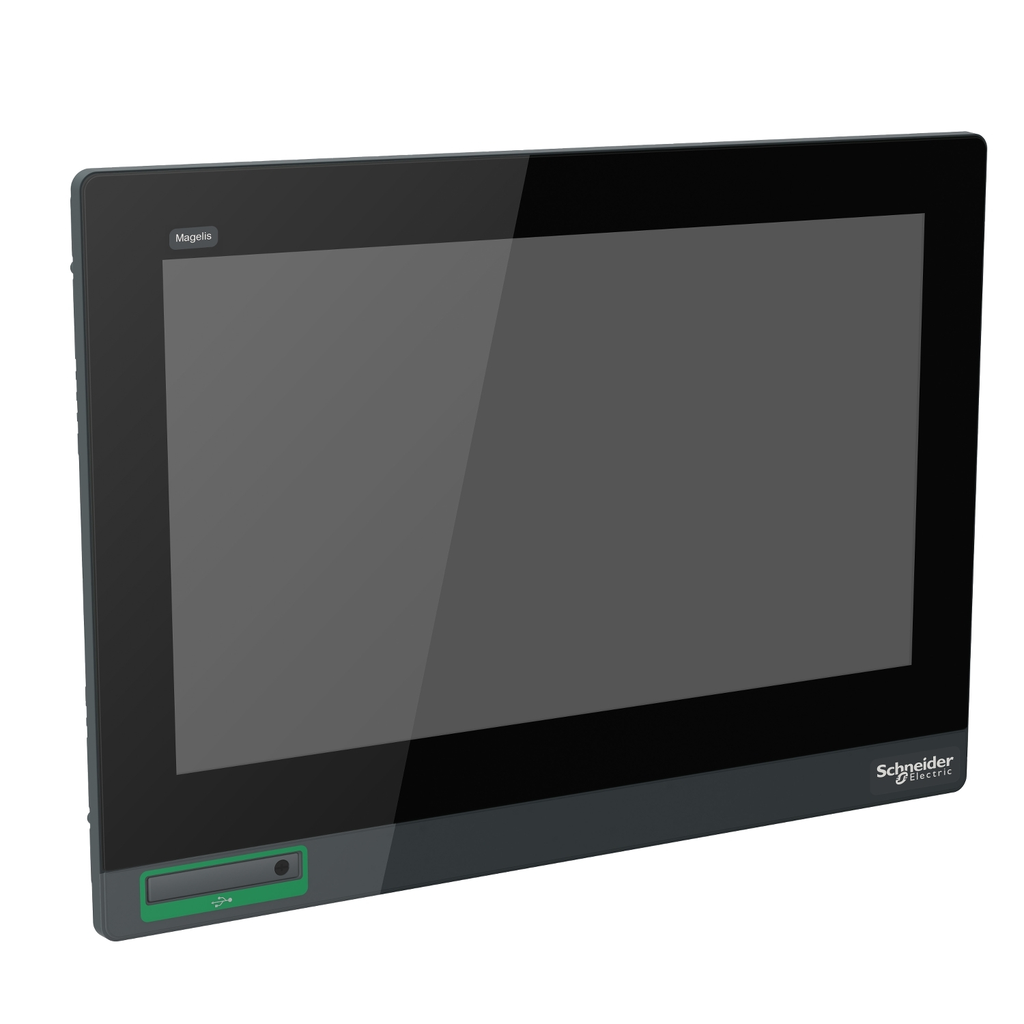

The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 414mm (width) x 69mm (depth) x 295mm (height). It weighs 5kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : United States
• Width : 414 mm
• Height : 295 mm
• Weight : 5 kg
• Power Consumption In W : 17 W
• Range Of Product : Harmony GTU
• [Us] Rated Supply Voltage : 12...24 V DC power supply
• Inrush Current : 30 A
• Product Or Component Type : flat screen
• Terminal Type : touchscreen display
• Supply Voltage Limits : 10.8-28.8 V
• Complementary
• Height : 295 mm
• Pixel Resolution : 1366 x 768
• Touchscreen Resolution : 2048 x 2048
• Display Resolution : 1366 x 768 pixels FWXGA
• Net Weight : 5 kg
• Type Of Installation : indoor installation
• Backlight Lifespan : 50000 hours
• Function Available : brightness sensor
• Cut-Out Dimensions : 396 (+ 1/- 0) x 277 (+ 1/- 0) mm
• Display Type : colour TFT LCD
• Touch Panel : multi-touch projected capactive technology (PCT) 50000000 cycles
• Display Size : 15.6 inch
• Integrated Connection Type : USB 2.0 type A || USB 2.0 type mini B
• Display Colour : 16 million colours
• Width : 414 mm
• Depth : 69 mm
• Type Of Cooling : natural convection
• Aspect Ratio : 4:3
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1402016EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : f7bde1f0-e6bc-4b91-91d2-88584de513eb
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1402016EN
• Take-Back : No
• F-Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 990.0816303030302
• Environment
• Ambient Air Temperature For Operation : 0-55 °C IEC 61131-2
• Standards : UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
• Product Certifications : KC || CE || RCM || cULus || UKCA || UKEX
• Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
• Ip Degree Of Protection : front panel IP66 || front panel IP67
• Shock Resistance : 147 m/s²IEC 61131-2
• Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
• Ambient Air Temperature For Storage : -20-60 °C
• Relative Humidity : 10-90 % non-condensing
• Nema Degree Of Protection : NEMA 4X front panel
• Operating Altitude : 6561.68 ft (2000 m)
