Flat screen, Harmony GTU, 15 Touch Smart Display XGA, coated display

HMIDT732 Conformal Coated

SQDHMIDT732FC HMIDT732FC 3606480841644
6243.42 / EA
http://schema.org/OutOfStock

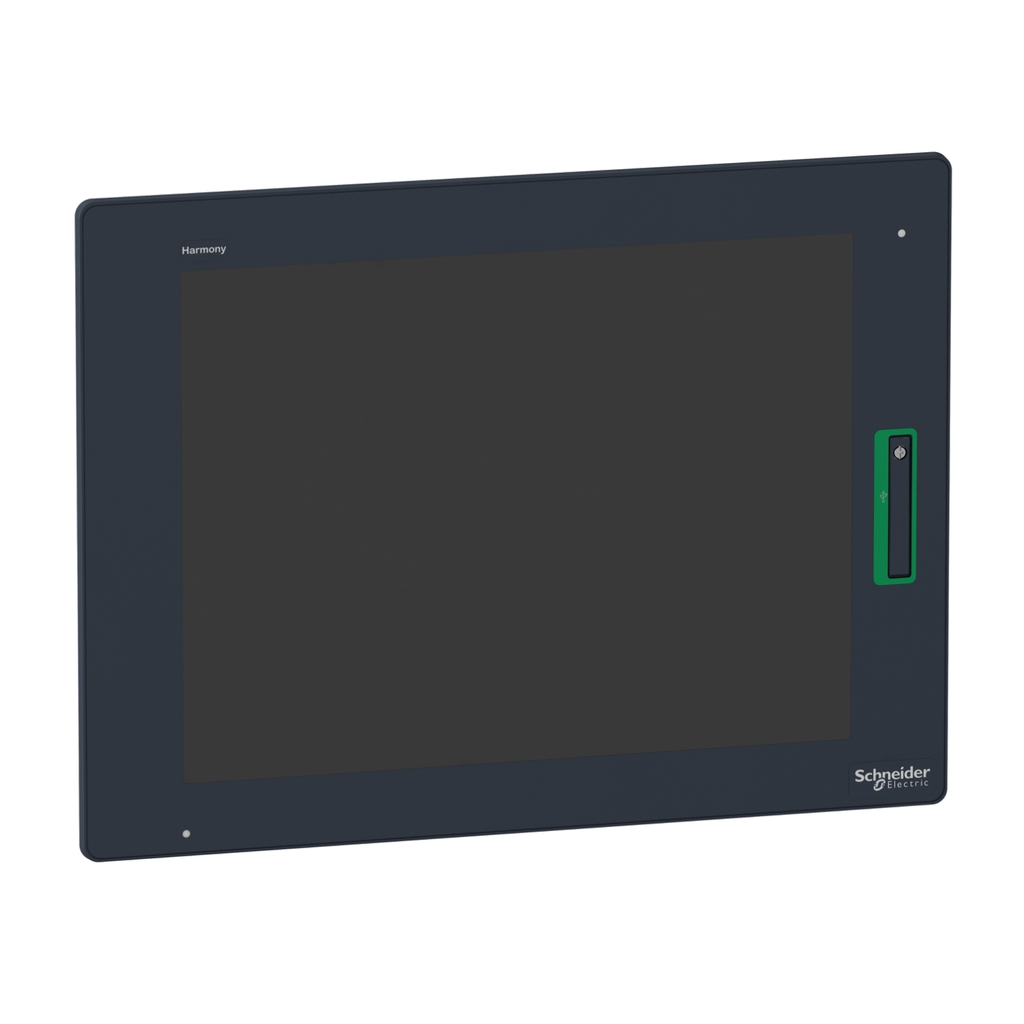

Mayer-DDS-Flat screen, Harmony GTU, 15 Touch Smart Display XGA, coated display-1
  • Country of Origin: China
  • Depth: 67 mm
  • Display Type: Colour TFT LCD
  • Height: 296 mm
  • Net Weight: 4.5 kg
  • Weight: 4.5 kg
  • Width: 397 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1402016EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : f7bde1f0-e6bc-4b91-91d2-88584de513eb
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1402016EN
    • Take-Back : No
    • F-Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1166.05974
  • Specifications
    • Country of Origin : China
    • Width : 397 mm
    • Height : 296 mm
    • Weight : 4.5 kg
    • Power Consumption In W : 22 W
    • Range Of Product : Harmony GTU
    • [Us] Rated Supply Voltage : 12...24 V DC power supply
    • Inrush Current : 30 A
    • Product Or Component Type : flat screen
    • Terminal Type : touchscreen display
    • Supply Voltage Limits : 10.8-28.8 V
  • Complementary
    • Provided Equipment : 1 flash card
    • Height : 296 mm
    • Pixel Resolution : 1024 x 768
    • Touchscreen Resolution : 1024 x 1024
    • Display Resolution : 1024 x 768 pixels XGA
    • Net Weight : 4.5 kg
    • Type Of Installation : indoor installation
    • Backlight Lifespan : 50000 hours
    • Function Available : brightness sensor
    • Cut-Out Dimensions : 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
    • Display Type : colour TFT LCD
    • Touch Panel : multi touch analogue resistive
    • Display Size : 15 inch
    • Integrated Connection Type : USB 2.0 type A
    • Display Colour : 16 million colours
    • Width : 397 mm
    • Depth : 67 mm
    • Type Of Cooling : natural convection
    • Aspect Ratio : 4:3
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C IEC 61131-2
    • Standards : UL 508
    • Product Certifications : CE || UKCA || UKEX
    • Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • Ip Degree Of Protection : front panel IP66
    • Shock Resistance : 147 m/s²IEC 61131-2
    • Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2
    • Ambient Air Temperature For Storage : -20-60 °C
    • Relative Humidity : 10-90 % non-condensing
    • Nema Degree Of Protection : NEMA 4X front panel
    • Operating Altitude : 6561.68 ft (2000 m)
