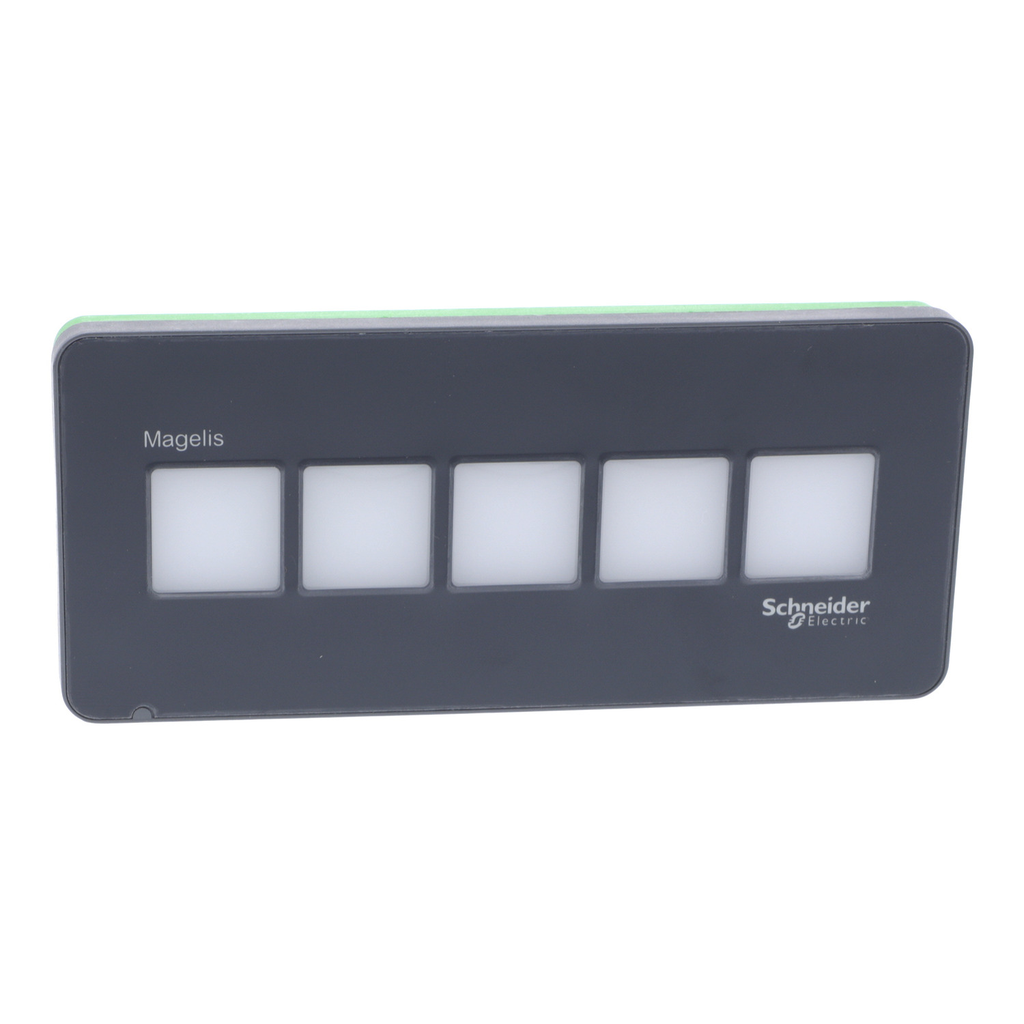

This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.

• Control Type
• 5 push-buttons multi-colour backlit LED
• US Rated Supply Voltage
• 5 V DC USB 2.0
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_3D.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Bottom View.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Bottom View.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Front View.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Front View.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Left Side View.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=HMIZRA1_CAD&p_File_name=HMIZRA1_2D Left Side View.dxf
• Supply Voltage Limits
• 4.75-5.25 V DC
• IP Degree Of Protection
• IP65 front panel (in enclosure))
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Provided Equipment
• 1 x User Manual
• 1 x USB type B cable clamp
• 1 x fixing nut
• 1 x tightening wrench
• 1 x anti-rotation tee
• 1 x gasket
• 1 x insert label
• 1 x USB cable type A/B 1 m
• Nema Degree Of Protection
• NEMA 4X indoor installation
• NEMA 13 enclosed outdoor
• Vibration Resistance
• 3.5 mm (f= 5-9 Hz) conforming to IEC 61131-2
• Market Segmentation
• Commercial
• Industrial
• Color Of Cover
• front dark grey
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• Electromagnetic Compatibility
• electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
• electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
• electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
• electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
• Relative Humidity
• 10-90 % 0-55 °C non-condensing
• Persona Type Ids
• EU
• OM
• OM8
• PB
• SC
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2
• Product Compatibility
• XBTGC - controller panel
• XBTGT2... - advanced touch panel
• HMISTO - touch panel
• HMISCU - touch panel
• XBTGT6... - advanced touch panel
• HMIGTW - advanced touch panel
• XBTGK - graphic display
• XBTGT4... - advanced touch panel
• XBTGT5... - advanced touch panel
• XBTGT7... - advanced touch panel
• HMISTU - touch panel
• HMIGTO - advanced touch panel
• HMIPSP - S-Panel PC
• HMIPSO - S-Panel PC
• HMIBMU - Modular Box PC
• HMIBMP - Modular Box PC
• HMIBMO - Modular Box PC
• HMIBMI - Modular Box PC
• Software Designation
• Vijeo Designer >= V6.1 SP2

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Serviceability : No
• Traceability : No
• WEEE Applicability : Component
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2514
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Free Status : Product contains halogen above thresholds
• Package Weight Lbs : 307.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : illuminated USB switch
• Range Of Product : Harmony HMIZ
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=422600175&lang=en-us
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Operating Altitude : <= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : illuminated USB switch
• Range Of Product : Harmony HMIZ
• Specifications
• Country of Origin : China
