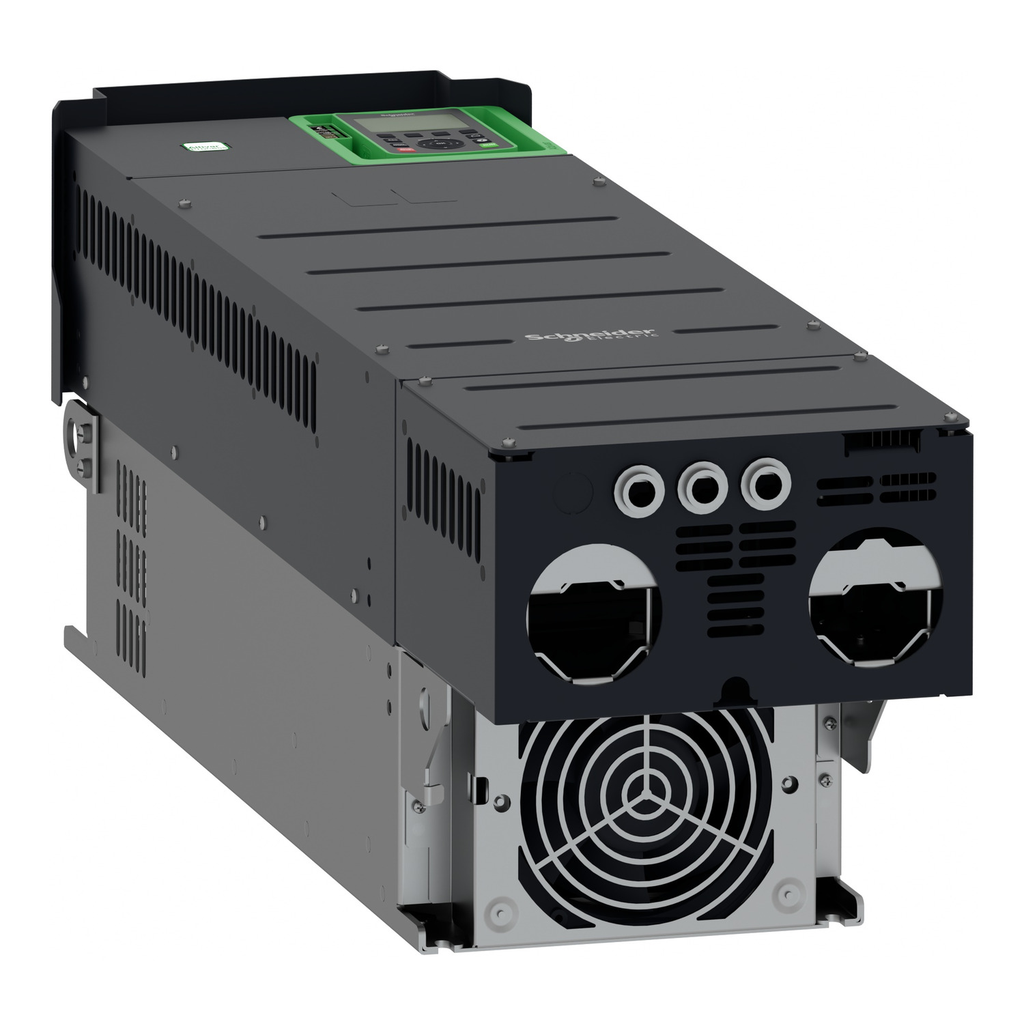

Variable Speed Drive, Altivar Process ATV600, ATV630, 37kW, 50hp, 200 to 240V, IP21, UL type 1

Variable Speed Drive, Altivar Process ATV600, ATV630, 37kW, 50hp, 200 to 240V, IP21, UL type 1

SQDATV630D37M3 ATV630D37M3 3606480701528
9194.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-Variable Speed Drive, Altivar Process ATV600, ATV630, 37kW, 50hp, 200 to 240V, IP21, UL type 1-2
  • Country of Origin: India
  • IsSustainable: Yes
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Power Range
    • 30-50 kW 200-240 V 3 phase
  • Connector Type
    • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • RJ45 on the remote graphic terminal)Modbus serial
    • RJ45 on the remote graphic terminal)
  • US Rated Supply Voltage
    • 200...240 V - 15...10 %
  • Exchange Mode
    • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000985_3D-CAD&p_File_name=MCADID0000985_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000985_3D-CAD&p_File_name=MCADID0000985_2D-back.dwg
    • https://downlo
  • Analogue Input Type
    • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
    • AI1, AI2, AI3 software-configura
  • IP Degree Of Protection
    • IP21IEC 61800-5-1
    • IP21IEC 60529
  • Continuous Output Current
    • 149 A 2.5 kHz normal duty
    • 123 A 2.5 kHz heavy duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
    • software-configurable voltage AQ1, AQ2 0...10 V DC 47
  • Carbon Footprint Of The Installation Phase A5
    • 13 kg CO2 eq.
    • 12.6893959732
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 12.651704698
    • 13 kg CO2 eq.
  • Standards
    • UL 508C
    • IEC 61800-3
    • environment 1 category C2 IEC 61800-3
    • environment 2 category C3 IEC 61800-3
    • IEC 61800-5-1
    • IEC 61000-3-12
    • IEC 60721-3
    • IEC 61508
    • IEC 13849-1
  • Discrete Input Type
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
  • Electrical Connection
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 1
  • Communication Modules
    • VW3A3203
    • VW3A3204
    • VW3A3720
    • VW3A3721
    • VW3A3608
    • VW3A3618
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 554 kg CO2 eq.
    • 553.9554362416
  • Method Of Access
    • slave Modbus TCP
  • Line Current
    • 128 A 200 V normal duty)
    • 107.8 A 240 V normal duty)
    • 104.7 A 200 V heavy duty)
    • 88.6 A 240 V heavy d
  • Motor Slip Compensation
    • adjustable
    • can be suppressed
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
    • relay output R
  • Relay Output Type
    • configurable relay logic R1 fault relay NO/NC 100000 cycles
    • configurable r
  • Input Compatibility
    • DI1...DI6 discrete input level 1 PLC IEC 61131-2
    • DI5, DI6 discrete input level 1 PLC IEC 65A-68
    • DI5, DI6 di
  • Frequency Resolution
    • display unit 0.1 Hz
    • analog input 0.012/50 Hz
  • Protection Type
    • thermal protection motor
    • safe torque off motor
    • motor phase break motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
  • Supply
    • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    • external supply for digital inputs 24 V DC 19-30 V), <
  • Permissible Temporary Current Boost
    • 1.1 x In 60 s normal duty)
    • 1.5 x In 60 s heavy duty)
  • Sampling Duration
    • 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete in
  • Linearity Error
    • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • AO1, AO2 +/- 0.2 % analog output
    • AO1, AO2 +/- 0.2 % anal
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 50 hp normal duty
    • 40 hp heavy duty
  • Vibration Resistance
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) con
  • Option Card
    • slot A communication module, Profibus DP V1
    • slot A communication module, PROFINET
    • slot A c
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 37 kW normal duty)
    • 30 kW heavy duty)
  • Refresh Time
    • relay output R1, R2, R3)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 48 004 kg CO2 eq.
    • 48003.6544724854
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electro
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 44.8 kVA 240 V normal duty)
    • 36.8 kVA 240 V heavy duty)
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Number Of Addresses
    • 1-247 Modbus serial
  • Maximum THDI
    • <48 % from 80...100 % of load IEC 61000-3-12
  • Carbon Footprint Of The Distribution Phase A4
    • 9.289642953
    • 9 kg CO2 eq.
  • Synchronous Motor Control Profile
    • permanent magnet motor
    • synchronous reluctance motor
  • Minimum Switching Current
    • relay output R1, R2, R3 5 mA 24 V DC
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
    • 1000...4800 m with current derating 1 % per 100 m
  • Noise Level
    • 62.4 dB 86/188/EEC
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI8), < 5 V, > 11 V
    • negative logic (sink) DI1...DI8), > 16 V, < 10 V
    • negat
  • Asynchronous Motor Control Profile
    • constant torque standard
    • optimized torque mode
    • variable torque standard
  • Discrete Output Type
    • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
    • relay outputs R1A, R1B, R1C 3
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 163.9 A 60 s normal duty)
    • 184.5 A 60 s heavy duty)
  • Discrete And Process Manufacturing
    • building - HVAC compressor centrifugal
    • food and beverage processing other application
    • mining mineral and metal fan
    • mining mineral and metal
  • Power Dissipation In W
    • natural convection 156 W 200 V 2.5 kHz
    • forced convection 1141 W 200 V 2.5 kHz
    • forced convection 11
  • Local Signalling
    • 3 LEDs for local diagnostic
    • 3 LEDs (dual colour) for embedded communication status
    • 4 LEDs (dual colour) for communic
  • Ambient Air Temperature For Operation
    • -15-50 °C (without derating)
    • 50-60 °C (with derating factor)
  • UE Rated Operational Voltage
    • 200...240 V 37 kW 50 hp normal duty
    • 200...240 V 30 kW 40 hp heavy duty
    • 200..
  • Switching Frequency
    • 2.5...8 kHz with derating factor
    • 2...8 kHz adjustable
  • Complementary Attributes
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 200.0 A
    • Maximum Input Current Per Phase : 128.0 A
    • Maximum Output Voltage : 240.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • HTML Description : Variable Speed Drive ATV630Wall MountSupply Frequency: 50...60 Hz - 5...5 %Us Rated Supply Voltage: 200...240 V - 15...10 %290mm W x 922mm H x 323mm D
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 553.9554362416
    • Distribution Carbon Footprint : 9.289642953
    • Installation Carbon Footprint : 12.6893959732
    • Use Carbon Footprint : 48003.6544724854
    • End Of Life Carbon Footprint : 12.651704698
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1411014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1922
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 123.0 A
    • Base Load Current At Low Overload : 149.0 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 11200.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV630
    • EMC Filter : without EMC filter
    • Enclosure Mounting : wall mounted
    • Functionality : full
    • Housing Material : sheet steel
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 200.0 A
    • Maximum Input Current Per Phase : 128.0 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 2.5 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 1
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 45.000 kg
    • Power Loss Per Device Current Dependent : 1596.0 W
    • Power Loss Static Current Independent : 33.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : utility
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 48 592 kg CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 295 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : false
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : false
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 48592.2406523512
    • Relationship Type : Compatible relationship
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1411014EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 72000
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 90 kW electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phase voltage
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 81305.414
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0359906779
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0338032752
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000003718
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000824
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0021867482
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000002003
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 501273.4961987025
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6552.7731543624
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 130.5084563758
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 14.9866308725
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 494497.854534273
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 77.3734228188
    • Exported Energy Mj By Energy Vector Total Life Cycle : 7.9735312752
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.6847151678
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 7.2888161074
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 836.5597548886
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 760.5616107383
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0048018685
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 75.9933422819
    • Materials For Energy Recovery Kg Total Life Cycle : 1.8462926392
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0000000218
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 1.8462926174
    • Materials For Recycling Kg Total Life Cycle : 57.3407033557
    • Materials For Recycling Kg Manufacturing A1 A3 : 5.0891919463
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 6.3329073826
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 45.9186040268
    • Net Use Of Fresh Water M3 Total Life Cycle : 137.6880389388
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 12.4680805369
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0008313729
    • Net Use Of Fresh Water M3 Installation A5 : 0.0034117369
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 125.205382084
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0103332081
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 179801.7607998492
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 225.5677852349
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.3300595973
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 10.1167248322
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 179565.4624535405
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2837766443
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0117068288
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000446439
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000188
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000283
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0116614256
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000007123
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 146.5461436746
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.1767527517
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0002350776
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0003536118
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 146.368274488
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0005277455
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 915257.5162273332
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12063.1409395973
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 131.1753020134
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 15.9772348993
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 902950.0759051855
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 97.1468456376
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 985234.9716564829
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 12504.8053691275
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 131.349261745
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 16.2797315436
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 972485.2938041339
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 97.2434899329
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 70030.3675986833
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 441.6644295302
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1750421477
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.3030861745
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 69588.1251299585
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0999108725
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 195.2311409396
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 195.2311409396
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 915062.2947508232
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11867.9194630872
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 131.1753020134
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 15.9772348993
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 902950.0759051855
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 97.1468456376
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 299.0657718121
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 299.0657718121
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 69731.3018268713
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 142.5986577181
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1750421477
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.3030861745
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 69588.1251299585
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0999108725
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 16.107704698
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 16.107704698
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 2130906.167367275
    • Air Pollution M3 Manufacturing A1 A3 : 70769.7181208054
    • Air Pollution M3 Distribution A4 : 395.1688590604
    • Air Pollution M3 Installation A5 : 308.7302013423
    • Air Pollution M3 Operational Energy Use B6 : 2058763.124145798
    • Air Pollution M3 End Of Life C1 C4 : 669.4260402685
    • Water Pollution M3 Total Life Cycle : 2073373.733157568
    • Water Pollution M3 Manufacturing A1 A3 : 55336.5906040268
    • Water Pollution M3 Distribution A4 : 1527.6563758389
    • Water Pollution M3 Installation A5 : 165.6869798658
    • Water Pollution M3 Operational Energy Use B6 : 2014253.86631193
    • Water Pollution M3 End Of Life C1 C4 : 2089.932885906
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 365.0925191695
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 17.3242296272
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 14.1136002018
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 2.0040161074
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0424152483
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.007371447
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 363.0191864877
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0195298792
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 48592.2406523512
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 553.9554362416
    • Global Warming Kg Equivalent Co2 Distribution A4 : 9.289642953
    • Global Warming Kg Equivalent Co2 Installation A5 : 12.6893959732
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 48003.6544724854
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 12.651704698
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.1583903356
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0030268027
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0029400161
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 17.1578989963
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0019734765
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.486246443
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0097697718
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.003618749
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 13.6080757347
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0058895034
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Maximum Output Voltage : 240.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Surge Protection And Filtering Attributes
    • EMC Filter : without EMC filter
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=415884301&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 48592.2406523512
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1411014EN
    • Environmental Disclosure : ENVPEP1411014EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1411014EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : India
