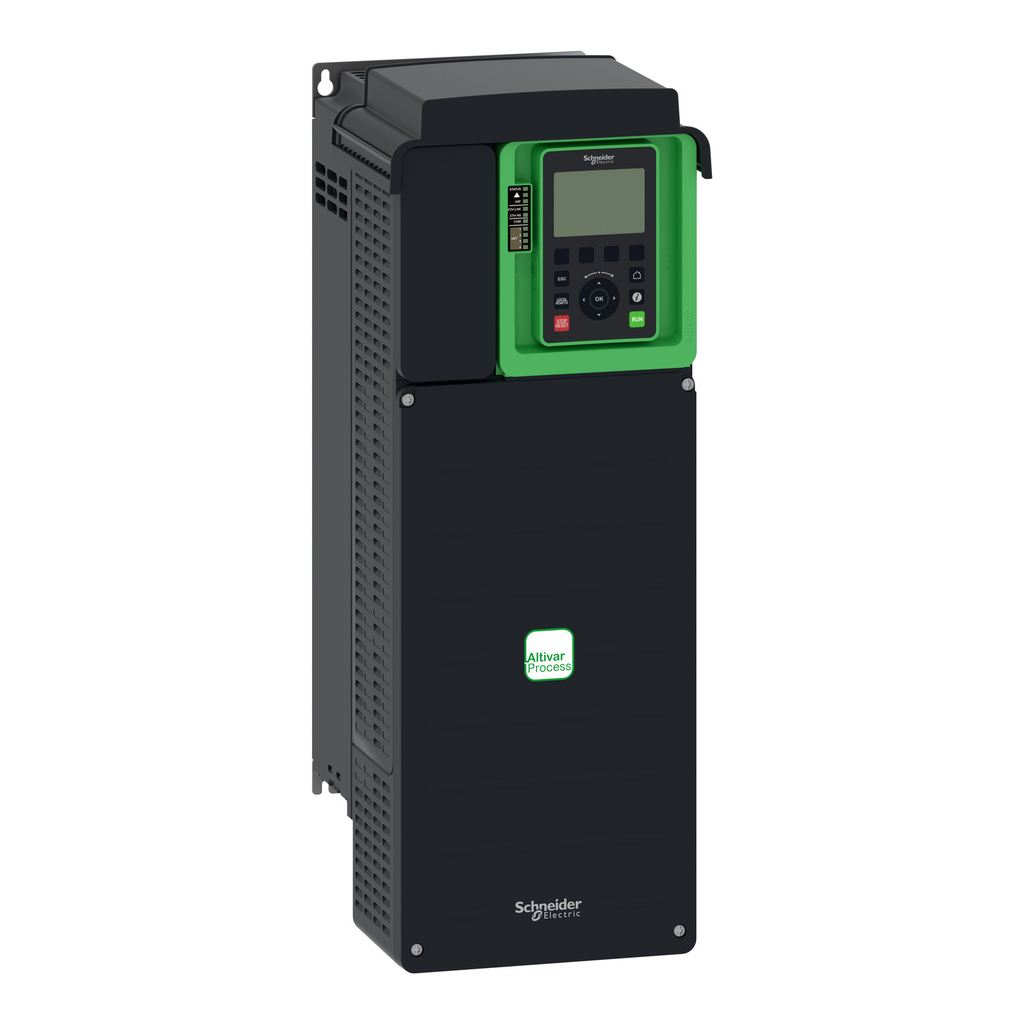

variable speed drive, Altivar Process ATV600, ATV630, 22kW, 30hp, 380 to 480V, IP21, UL type 1

ATV630 DRIVE 30HP 460V 34A

SQDATV630D22N4 ATV630D22N4 3606480701405
6879.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Process ATV600, ATV630, 22kW, 30hp, 380 to 480V, IP21, UL type 1-2
  • Country of Origin: China
  • IsSustainable: Yes
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 22kW / 30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring significant overload (up to 150%). It weighs 14.3kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 22kW / 30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring significant overload (up to 150%). It weighs 14.3kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Power Range
    • 15-25 kW 380-440 V 3 phase
    • 15-25 kW 480-500 V 3 phase
  • Connector Type
    • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • RJ45 on the remote graphic terminal)Modbus serial
  • US Rated Supply Voltage
    • 380...480 V - 15...10 %
  • Exchange Mode
    • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000977_3D-CAD&p_File_name=MCADID0000977_2D-top.dxf
  • Analogue Input Type
    • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
    • AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits
    • AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
  • IP Degree Of Protection
    • IP21IEC 61800-5-1
    • IP21IEC 60529
  • Continuous Output Current
    • 46.3 A 4 kHz normal duty
    • 39.2 A 4 kHz heavy duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
    • software-configurable current AQ1, AQ2 0...20 mA 10 bits
    • software-configurable current DQ-, DQ+ 30 V DC
    • software-configurable current DQ-, DQ+ 100 mA
  • Carbon Footprint Of The Installation Phase A5
    • 0.2 kg CO2 eq.
    • 0.16345
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 4.4572
    • 4 kg CO2 eq.
  • Standards
    • UL 508C
    • IEC 61800-3
    • environment 1 category C2 IEC 61800-3
    • environment 2 category C3 IEC 61800-3
    • IEC 61800-5-1
    • IEC 61000-3-12
    • IEC 60721-3
    • IEC 61508
    • IEC 13849-1
  • Discrete Input Type
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
  • Electrical Connection
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
    • motor screw terminal 16 mm² AWG 6
    • line side screw terminal 10...16 mm² AWG 8...AWG 6
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 157 kg CO2 eq.
    • 157.45
  • Method Of Access
    • slave Modbus TCP
  • Line Current
    • 39.6 A 380 V normal duty)
    • 34.4 A 480 V normal duty)
    • 34.1 A 380 V heavy duty)
    • 29.9 A 480 V heavy duty)
  • Motor Slip Compensation
    • adjustable
    • can be suppressed
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC
    • relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    • relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
  • Relay Output Type
    • configurable relay logic R1 fault relay NO/NC 100000 cycles
    • configurable relay logic R2 sequence relay NO 100000 cycles
    • configurable relay logic R3 sequence relay NO 100000 cycles
  • Input Compatibility
    • DI1...DI6 discrete input level 1 PLC IEC 61131-2
    • DI5, DI6 discrete input level 1 PLC IEC 65A-68
    • STOA, STOB discrete input level 1 PLC IEC 61131-2
  • Frequency Resolution
    • display unit 0.1 Hz
    • analog input 0.012/50 Hz
  • Protection Type
    • thermal protection motor
    • safe torque off motor
    • motor phase break motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
    • overcurrent between output phases and earth drive
    • overload of output voltage drive
    • short-circuit protection drive
    • motor phase break drive
    • overvoltages on the DC bus drive
    • line supply overvoltage drive
    • line supply undervoltage drive
    • line supply phase loss drive
    • overspeed drive
    • break on the control circuit drive
  • Supply
    • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    • internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
    • internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
  • Permissible Temporary Current Boost
    • 1.1 x In 60 s normal duty)
    • 1.5 x In 60 s heavy duty)
  • Sampling Duration
    • 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete input
    • 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input
    • 10 ms +/- 1 ms AO1) - analog output
  • Linearity Error
    • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • AO1, AO2 +/- 0.2 % analog output
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 30 hp normal duty
    • 25 hp heavy duty
  • Vibration Resistance
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
  • Option Card
    • slot A communication module, Profibus DP V1
    • slot A communication module, PROFINET
    • slot A communication module, DeviceNet
    • slot A communication module, Modbus TCP/EtherNet/IP
    • slot A communication module, CANopen daisy chain RJ45
    • slot A communication module, CANopen SUB-D 9
    • slot A communication module, CANopen screw terminals
    • slot A/slot B digital and analog I/O extension module
    • slot A/slot B output relay extension module
    • slot A communication module, Ethernet IP/Modbus TCP/MD-Link
    • communication module, BACnet MS/TP
    • communication module, Ethernet Powerlink
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 22 kW normal duty)
    • 18.5 kW heavy duty)
  • Refresh Time
    • relay output R1, R2, R3)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 18 371 kg CO2 eq.
    • 18371
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    • electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    • 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
    • conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 28.6 kVA 480 V normal duty)
    • 24.9 kVA 480 V heavy duty)
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Number Of Addresses
    • 1-247 Modbus serial
  • Maximum THDI
    • <48 % from 80...100 % of load IEC 61000-3-12
  • EMC Filter
    • integrated 50 m IEC 61800-3 category C2
    • integrated 150 m IEC 61800-3 category C3
  • Carbon Footprint Of The Distribution Phase A4
    • 2.2527
    • 2 kg CO2 eq.
  • Synchronous Motor Control Profile
    • permanent magnet motor
    • synchronous reluctance motor
  • Minimum Switching Current
    • relay output R1, R2, R3 5 mA 24 V DC
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
    • 1000...4800 m with current derating 1 % per 100 m
  • Noise Level
    • 59.5 dB 86/188/EEC
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI8), < 5 V, > 11 V
    • negative logic (sink) DI1...DI8), > 16 V, < 10 V
  • Asynchronous Motor Control Profile
    • constant torque standard
    • optimized torque mode
    • variable torque standard
  • Discrete Output Type
    • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
    • relay outputs R1A, R1B, R1C 30 V DC 3000 mA
    • relay outputs R2A, R2C 250 V AC 5000 mA
    • relay outputs R2A, R2C 30 V DC 5000 mA
    • relay outputs R3A, R3C 250 V AC 5000 mA
    • relay outputs R3A, R3C 30 V DC 5000 mA
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 50.9 A 60 s normal duty)
    • 58.8 A 60 s heavy duty)
  • Discrete And Process Manufacturing
    • building - HVAC compressor centrifugal
    • food and beverage processing other application
    • mining mineral and metal fan
    • mining mineral and metal pump
    • oil and gas fan
    • water and waste water other application
    • building - HVAC screw compressor
    • food and beverage processing pump
    • food and beverage processing fan
    • food and beverage processing atomization
    • oil and gas electro submersible pump (ESP)
    • oil and gas water injection pump
    • oil and gas jet fuel pump
    • oil and gas compressor for refinery
    • water and waste water centrifuge pump
    • water and waste water positive displacement pump
    • water and waste water electro submersible pump (ESP)
    • water and waste water screw pump
    • water and waste water lobe compressor
    • water and waste water screw compressor
    • water and waste water compressor centrifugal
    • water and waste water fan
    • water and waste water conveyor
    • water and waste water mixer
  • Power Dissipation In W
    • natural convection 68 W 380 V 4 kHz
    • forced convection 505 W 380 V 4 kHz
  • Local Signalling
    • 3 LEDs for local diagnostic
    • 3 LEDs (dual colour) for embedded communication status
    • 4 LEDs (dual colour) for communication module status
    • 1 LED (red) for presence of voltage
  • Ambient Air Temperature For Operation
    • -15-50 °C (without derating)
    • 50-60 °C (with derating factor)
  • UE Rated Operational Voltage
    • 380...480 V 22 kW 30 hp normal duty
    • 380...480 V 18.5 kW 25 hp heavy duty
  • Switching Frequency
    • 2...12 kHz adjustable
    • 4...12 kHz with derating factor
  • Complementary Attributes
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 80.0 A
    • Maximum Input Current Per Phase : 39.6 A
    • Maximum Output Voltage : 480.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-06
    • HTML Description : Variable Speed Drive ATV630Wall MountSupply Frequency: 50...60 Hz - 5...5 %Us Rated Supply Voltage: 380...480 V - 15...10 %211mm W x 546mm H x 232mm D
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 157.45
    • Distribution Carbon Footprint : 2.2527
    • Installation Carbon Footprint : 0.16345
    • Use Carbon Footprint : 18371
    • End Of Life Carbon Footprint : 4.4572
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1404008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1922
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 39.2 A
    • Base Load Current At Low Overload : 46.3 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 1500.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV630
    • Enclosure Mounting : wall mounted
    • Functionality : full
    • Housing Material : plastic
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 80.0 A
    • Maximum Input Current Per Phase : 39.6 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 4 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 1
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 17.580 kg
    • Power Loss Per Device Current Dependent : 670.0 W
    • Power Loss Static Current Independent : 23.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : utility
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 18 535 kg CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 215 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : true
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : false
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 18535
    • Relationship Type : Compatible relationship
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1404008EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 17460
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 22 kW electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 31115.52
    • Recyclability Potential In : 77
    • Packaging Weight In G : 2996.2
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.036658
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.035821
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000009015
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000061886
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00083688
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.000000056346
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 191100
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1804.2
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 31.649
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 2.1148
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 189240
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 20.632
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.00884
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00057287
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0082671
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 707.73
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 687.25
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.000023833
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 20.479
    • Materials For Energy Recovery Kg Total Life Cycle : 0.78318
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.000000033617
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.78318
    • Materials For Recycling Kg Total Life Cycle : 15.329
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.3683
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 2.9392
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 11.022
    • Net Use Of Fresh Water M3 Total Life Cycle : 63.942
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 16.022
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00020161
    • Net Use Of Fresh Water M3 Installation A5 : 0.000020042
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 47.917
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0032272
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 68805
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 86.936
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.080039
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.066974
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 68718
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.076051
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0044817
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000018637
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000045634
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000041506
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0044628
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000020834
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 56.08
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.063591
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.000057006
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000051846
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 56.016
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00014556
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 348330
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2722.8
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 31.81
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.1294
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 345550
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 26.244
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 375090
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2840.2
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 31.852
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 2.1336
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 372190
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 26.27
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26748
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 117.38
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.042448
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0041413
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 26631
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.026126
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 182.66
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 182.66
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 348150
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2540.1
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 31.81
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.1294
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 345550
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 26.244
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 57.605
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 57.605
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26691
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 59.779
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.042448
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0041413
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 26631
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.026126
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 2.4498
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 2.4498
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 810680
    • Air Pollution M3 Manufacturing A1 A3 : 22517
    • Air Pollution M3 Distribution A4 : 95.829
    • Air Pollution M3 Installation A5 : 6.8378
    • Air Pollution M3 Operational Energy Use B6 : 787880
    • Air Pollution M3 End Of Life C1 C4 : 181.14
    • Water Pollution M3 Total Life Cycle : 789820
    • Water Pollution M3 Manufacturing A1 A3 : 17723
    • Water Pollution M3 Distribution A4 : 370.46
    • Water Pollution M3 Installation A5 : 24.735
    • Water Pollution M3 Operational Energy Use B6 : 770860
    • Water Pollution M3 End Of Life C1 C4 : 843.27
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 139.7
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 6.6226
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 5.4741
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.75887
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.010286
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.00068217
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 138.93
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0053054
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 18535
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 157.45
    • Global Warming Kg Equivalent Co2 Distribution A4 : 2.2527
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.16345
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 18371
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 4.4572
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.054983
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.00073399
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.000050935
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 6.5663
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.00052411
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.26203
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0023691
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.00017972
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 5.2077
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0018079
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Maximum Output Voltage : 480.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=415884287&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 18535
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1404008EN
    • Environmental Disclosure : ENVPEP1404008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1404008EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : China
