variable speed drive, Altivar Process ATV600, ATV630, 11kW, 15hp, 200 to 240V, IP21, UL type 1

variable speed drive, Altivar Process ATV600, ATV630, 11kW, 15hp, 200 to 240V, IP21, UL type 1

SQDATV630D11M3 ATV630D11M3 3606480701474
3995.58 / EA
http://schema.org/OutOfStock

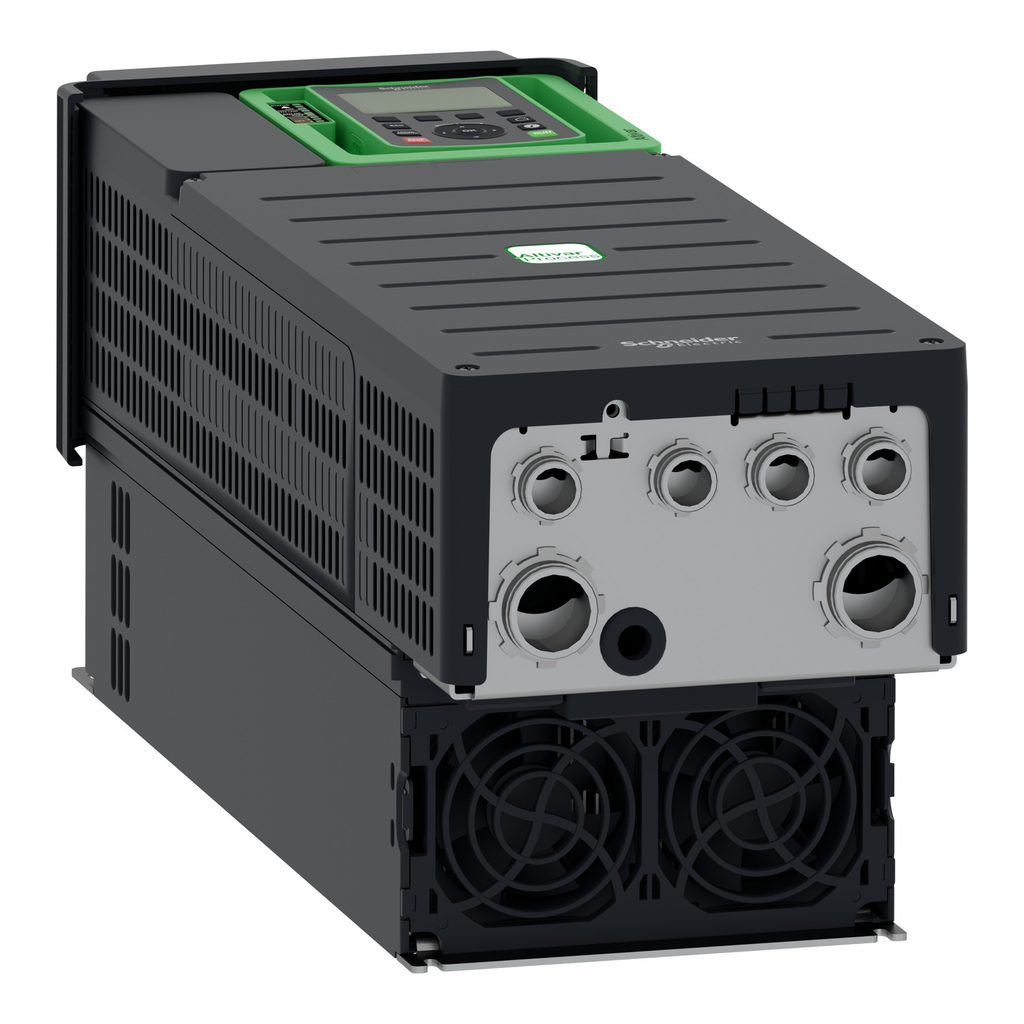

Mayer-DDS-variable speed drive, Altivar Process ATV600, ATV630, 11kW, 15hp, 200 to 240V, IP21, UL type 1-2
  • Country of Origin: India
  • IsSustainable: Yes
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Power Range
    • 7-11 kW 200-240 V 3 phase
  • Connector Type
    • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • RJ45 on the remote graphic terminal)Modbus serial
    • RJ45 on the remote graphic terminal)
  • US Rated Supply Voltage
    • 200...240 V - 15...10 %
  • Exchange Mode
    • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000972_3D-CAD&p_File_name=MCADID0000972_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000972_3D-CAD&p_File_name=MCADID0000972_2D-back.dwg
    • https://downlo
  • Analogue Input Type
    • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
    • AI1, AI2, AI3 software-configura
  • IP Degree Of Protection
    • IP21IEC 61800-5-1
    • IP21IEC 60529
  • Continuous Output Current
    • 46.8 A 4 kHz normal duty
    • 32.7 A 4 kHz heavy duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
    • software-configurable voltage AQ1, AQ2 0...10 V DC 47
  • Carbon Footprint Of The Installation Phase A5
    • 0.2 kg CO2 eq.
    • 0.1544630584
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 4.2121305842
    • 4 kg CO2 eq.
  • Standards
    • UL 508C
    • IEC 61800-3
    • environment 1 category C2 IEC 61800-3
    • environment 2 category C3 IEC 61800-3
    • IEC 61800-5-1
    • IEC 61000-3-12
    • IEC 60721-3
    • IEC 61508
    • IEC 13849-1
  • Discrete Input Type
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
  • Electrical Connection
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 1
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 149 kg CO2 eq.
    • 148.7929553265
  • Method Of Access
    • slave Modbus TCP
  • Line Current
    • 39.3 A 200 V normal duty)
    • 32.9 A 240 V normal duty)
    • 27.2 A 200 V heavy duty)
    • 23.1 A 240 V heavy duty
  • Motor Slip Compensation
    • adjustable
    • can be suppressed
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
    • relay output R
  • Relay Output Type
    • configurable relay logic R1 fault relay NO/NC 100000 cycles
    • configurable r
  • Input Compatibility
    • DI1...DI6 discrete input level 1 PLC IEC 61131-2
    • DI5, DI6 discrete input level 1 PLC IEC 65A-68
    • DI5, DI6 di
  • Frequency Resolution
    • display unit 0.1 Hz
    • analog input 0.012/50 Hz
  • Protection Type
    • thermal protection motor
    • safe torque off motor
    • motor phase break motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
  • Supply
    • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    • external supply for digital inputs 24 V DC 19-30 V), <
  • Accessories
    • NSYPTDS3
    • VW3A1112
    • ZB5AZ905
    • VW3A1115
    • LU9GC3
  • Permissible Temporary Current Boost
    • 1.1 x In 60 s normal duty)
    • 1.5 x In 60 s heavy duty)
  • Sampling Duration
    • 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete in
  • Linearity Error
    • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • AO1, AO2 +/- 0.2 % analog output
    • AO1, AO2 +/- 0.2 % anal
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 15 hp normal duty
    • 10 hp heavy duty
  • Vibration Resistance
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) con
  • Option Card
    • slot A communication module, Profibus DP V1
    • slot A communication module, PROFINET
    • slot A c
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 11 kW normal duty)
    • 7.5 kW heavy duty)
  • Refresh Time
    • relay output R1, R2, R3)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 17 769 kg CO2 eq.
    • 17768.512119611
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electro
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 13.7 kVA 240 V normal duty)
    • 9.6 kVA 240 V heavy duty)
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Number Of Addresses
    • 1-247 Modbus serial
  • Maximum THDI
    • <48 % from 80...100 % of load IEC 61000-3-12
  • Carbon Footprint Of The Distribution Phase A4
    • 2.1288402062
    • 2 kg CO2 eq.
  • Synchronous Motor Control Profile
    • permanent magnet motor
    • synchronous reluctance motor
  • Minimum Switching Current
    • relay output R1, R2, R3 5 mA 24 V DC
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
    • 1000...4800 m with current derating 1 % per 100 m
  • Noise Level
    • 59.5 dB 86/188/EEC
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI8), < 5 V, > 11 V
    • negative logic (sink) DI1...DI8), > 16 V, < 10 V
    • negat
  • Asynchronous Motor Control Profile
    • constant torque standard
    • optimized torque mode
    • variable torque standard
  • Discrete Output Type
    • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
    • relay outputs R1A, R1B, R1C 3
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 51.5 A 60 s normal duty)
    • 49.1 A 60 s heavy duty)
  • Discrete And Process Manufacturing
    • building - HVAC compressor centrifugal
    • food and beverage processing other application
    • mining mineral and metal fan
    • mining mineral and metal
  • Power Dissipation In W
    • natural convection 62 W 200 V 4 kHz
    • forced convection 452 W 200 V 4 kHz
    • fo
  • Local Signalling
    • 3 LEDs for local diagnostic
    • 3 LEDs (dual colour) for embedded communication status
    • 4 LEDs (dual colour) for communic
  • Ambient Air Temperature For Operation
    • -15-50 °C (without derating)
    • 50-60 °C (with derating factor)
  • UE Rated Operational Voltage
    • 200...240 V 11 kW 15 hp normal duty
    • 200...240 V 7.5 kW 10 hp heavy duty
    • 20
  • Switching Frequency
    • 2...12 kHz adjustable
    • 4...12 kHz with derating factor
  • Complementary Attributes
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 63.0 A
    • Maximum Input Current Per Phase : 39.3 A
    • Maximum Output Voltage : 240.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • HTML Description : Variable Speed Drive ATV630Wall MountSupply Frequency: 50...60 Hz - 5...5 %Us Rated Supply Voltage: 200...240 V - 15...10 %211mm W x 546mm H x 232mm D
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 148.7929553265
    • Distribution Carbon Footprint : 2.1288402062
    • Installation Carbon Footprint : 0.1544630584
    • Use Carbon Footprint : 17768.512119611
    • End Of Life Carbon Footprint : 4.2121305842
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1404008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1922
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 32.7 A
    • Base Load Current At Low Overload : 46.8 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 4080.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV630
    • EMC Filter : without EMC filter
    • Enclosure Mounting : wall mounted
    • Functionality : full
    • Housing Material : plastic
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 63.0 A
    • Maximum Input Current Per Phase : 39.3 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 4 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 1
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 17.851 kg
    • Power Loss Per Device Current Dependent : 618.0 W
    • Power Loss Static Current Independent : 22.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : utility
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 17 924 kg CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 215 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : false
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : false
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 17923.8005087863
    • Relationship Type : Compatible relationship
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1404008EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 16500
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 22 kW electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phase voltage
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 30095.068
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0346610388
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0338514605
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000852
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000058
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000809434
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000532
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 184790.1665199983
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1705
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 29.9088487973
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.9985223368
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 183033.7615543626
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 19.4975945017
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0083539235
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000541372
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0078125515
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 668.8160878147
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 649.4630584192
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000225226
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 19.3530068729
    • Materials For Energy Recovery Kg Total Life Cycle : 0.7401185885
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0000000318
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.7401185567
    • Materials For Recycling Kg Total Life Cycle : 14.4866408935
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.2930670103
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 2.7775945017
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 10.4159793814
    • Net Use Of Fresh Water M3 Total Life Cycle : 61.4898579788
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 15.1410652921
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0001905249
    • Net Use Of Fresh Water M3 Installation A5 : 0.00001894
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 46.3455334623
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0030497595
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 66546.7190984774
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 82.1560137457
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0756382302
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0632915808
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 66464.352285419
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0718695017
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0043342537
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000176123
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000043
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000004
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0043164398
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000001969
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 54.2392128518
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0600945876
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000538716
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000048995
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 54.1789219363
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0001375567
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 336847.4491909837
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2573.0927835052
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 30.0609965636
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.0123195876
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 334217.4820603994
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 24.8010309278
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 362724.7877808721
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2684.0378006873
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 30.1006872852
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 2.0162886598
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 359983.8074028652
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 24.8256013746
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 25868.6153368694
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 110.9261168385
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0401140893
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0039135997
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 25757.620502823
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0246895189
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 172.616838488
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 172.616838488
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 336674.7945518084
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2400.4381443299
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 30.0609965636
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.0123195876
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 334217.4820603994
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 24.8010309278
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 54.4377147766
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 54.4377147766
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 25814.1814021615
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 56.4921821306
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0401140893
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0039135997
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 25757.620502823
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0246895189
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 2.3151030928
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 2.3151030928
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 783588.160604674
    • Air Pollution M3 Manufacturing A1 A3 : 21278.9518900344
    • Air Pollution M3 Distribution A4 : 90.5600515464
    • Air Pollution M3 Installation A5 : 6.461838488
    • Air Pollution M3 Operational Energy Use B6 : 762041.0064122342
    • Air Pollution M3 End Of Life C1 C4 : 171.1804123711
    • Water Pollution M3 Total Life Cycle : 763498.0976668043
    • Water Pollution M3 Manufacturing A1 A3 : 16748.5395189003
    • Water Pollution M3 Distribution A4 : 350.0910652921
    • Water Pollution M3 Installation A5 : 23.375
    • Water Pollution M3 Operational Energy Use B6 : 745579.1874434366
    • Water Pollution M3 End Of Life C1 C4 : 796.9046391753
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 135.1062319438
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 6.4041512232
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 5.2886504061
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.717145189
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0097204467
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0006446624
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 134.3737079515
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0050136942
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 17923.8005087863
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 148.7929553265
    • Global Warming Kg Equivalent Co2 Distribution A4 : 2.1288402062
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.1544630584
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 17768.512119611
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 4.2121305842
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0519598797
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0006936332
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000481345
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 6.3509542829
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000495293
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.2476228522
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0022388402
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0001698385
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 5.0369103786
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0017084966
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Maximum Output Voltage : 240.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Surge Protection And Filtering Attributes
    • EMC Filter : without EMC filter
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=415884296&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 17923.8005087863
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1404008EN
    • Environmental Disclosure : ENVPEP1404008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1404008EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : India
