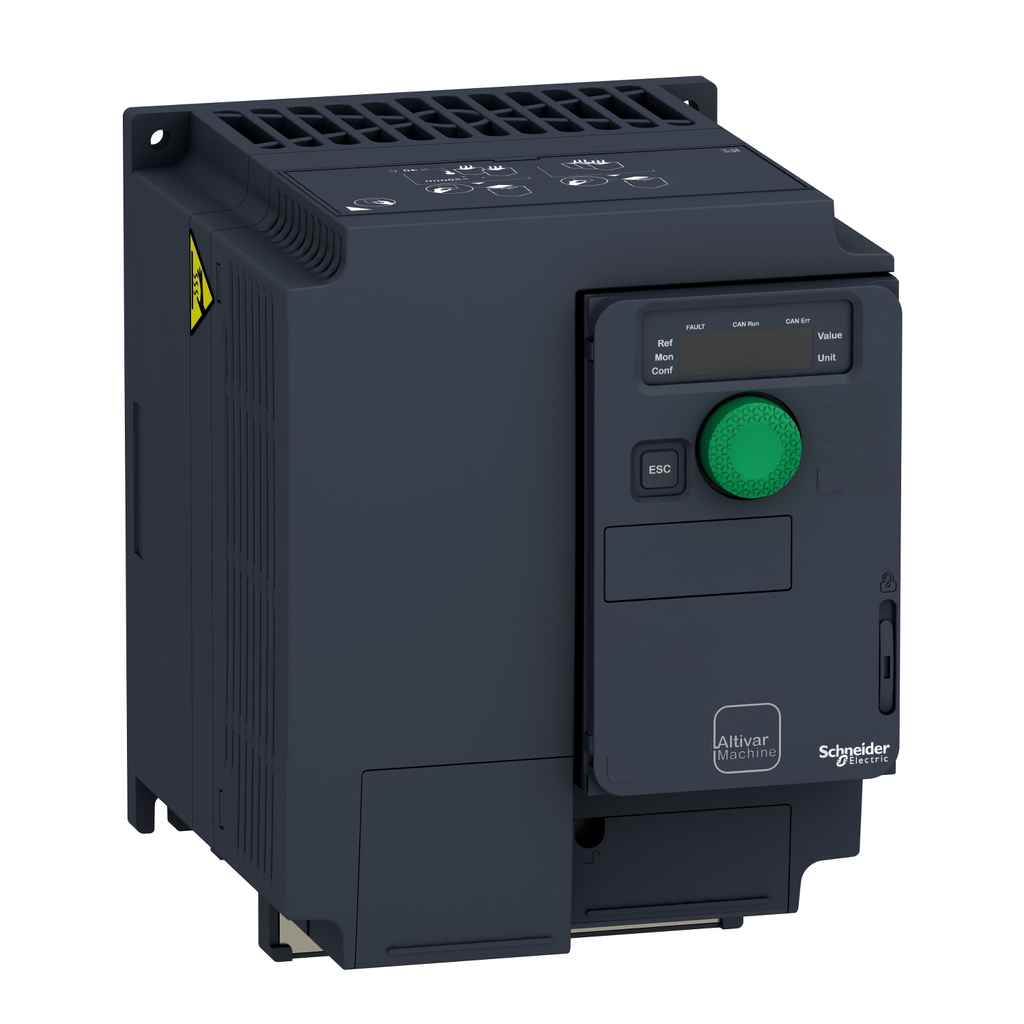

This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

• Offer Sustainability
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Upgradeability : Upgraded components available
• Rohs Exemption Information : Yes
• Environmental Disclosure : ENVPEP1512005EN
• Sustainable Offer Status : Green Premium product
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI1512005EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Prospective Line Isc : 5 kA
• Network Frequency : 50-60 Hz
• Power Dissipation In W : fan 74.0 W 380 V 4 kHz
• Line Current : 8.7 A 380 V heavy duty) || 6.6 A 500 V heavy duty)
• Analogue Output Type : software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
• Discrete Output Type : open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
• Asynchronous Motor Control Profile : voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
• Maximum Switching Current : relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
• 4 Quadrant Operation Possible : true
• Relative Symmetric Network Frequency Tolerance : 5 %
• Apparent Power : 5.7 kVA 500 V heavy duty)
• Net Weight : 2.1 kg
• With Safety Function Safe Direction (Sdi) : false
• Relay Output Type : configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
• Switching Frequency : 2...16 kHz adjustable || 4...16 kHz with derating factor
• Analogue Input Number : 3
• Motor Slip Compensation : automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
• Discrete Output Number : 3
• With Safety Function Safe Position (Sp) : false
• Method Of Access : slave CANopen
• With Safety Function Safely Limited Position (Slp) : false
• With Safety Function Safe Operating Stop (Sos) : false
• Discrete Input Number : 7
• With Sft Fct Safe Stop 2 (Ss2) : false
• With Safety Function Safe Stop 1 (Ss1) : true
• Width : 140 mm
• Depth : 158.0 mm
• Analogue Input Type : AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
• Maximum Output Frequency : 0.599 kHz
• With Safety Function Safe Brake Management (Sbc/Sbt) : false
• Height : 184.0 mm
• Acceleration And Deceleration Ramps : linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
• Maximum Output Voltage : 500 V
• Base Load Current At High Overload : 8.0 A
• With Safety Function Safe Speed Monitor (Ssm) : false
• Transient Overtorque : 170-200 % of nominal motor torque
• With Safety Function Safe Torque Off (Sto) : true
• Analogue Output Number : 1
• Minimum Switching Current : relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
• Discrete Input Logic : positive logic (source) || negative logic (sink)
• With Safety Function Safe Programmable Logic : false
• Brake Chopper Integrated : true
• Nominal Switching Frequency : 4 kHz
• Braking To Standstill : by DC injection
• Discrete Input Type : STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
• Protection Type : input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
• With Safety Function Safely Limited Speed (Sls) : true
• Synchronous Motor Control Profile : vector control without sensor
• Environment
• Product Certifications : CE || ATEX || NOM || GOST || EAC || RCM || KC
• Maximum Deflection Under Vibratory Load (During Operation) : 1.5 mm at 2...13 Hz
• Standards : IEC 61800-5-1
• Regulation Loop : adjustable PID regulator
• Permitted Relative Humidity (During Operation) : class 3K5 according to EN 60721-3
• Overvoltage Category : III
• Environmental Class (During Operation) : class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Maximum Acceleration Under Shock Impact (During Operation) : 150 m/s² at 11 ms
• Pollution Degree : 2
• Electromagnetic Compatibility : electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
• Ambient Air Temperature For Operation : -10-50 °C without derating || 50-60 °C with derating factor
• Volume Of Cooling Air : 37.7 m3/h
• Marking : CE || ATEX || UL || CSA || EAC || RCM
• Maximum Acceleration Under Vibrational Stress (During Operation) : 10 m/s² at 13...200 Hz
• Ambient Air Temperature For Storage : -25-70 °C
• Operating Position : vertical +/- 10 degree
• Ambient Air Transport Temperature : -25-70 °C
• Speed Accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn
• Specifications
• Variant : standard version || with disconnect switch
• Format Of The Drive : compact
• Product Or Component Type : variable speed drive
• Ip Degree Of Protection : IP20
• Communication Port Protocol : Modbus serial || CANopen
• Nominal Output Current : 5.5 A
• Product Specific Application : complex machines
• Option Card : communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
• Range Of Product : Altivar Machine ATV320
• Motor Power Kw : 2.2 kW heavy duty
• [Us] Rated Supply Voltage : 380...500 V - 15...10 %
• Mounting Mode : wall mount
• Emc Filter : Class C2 EMC filter integrated
