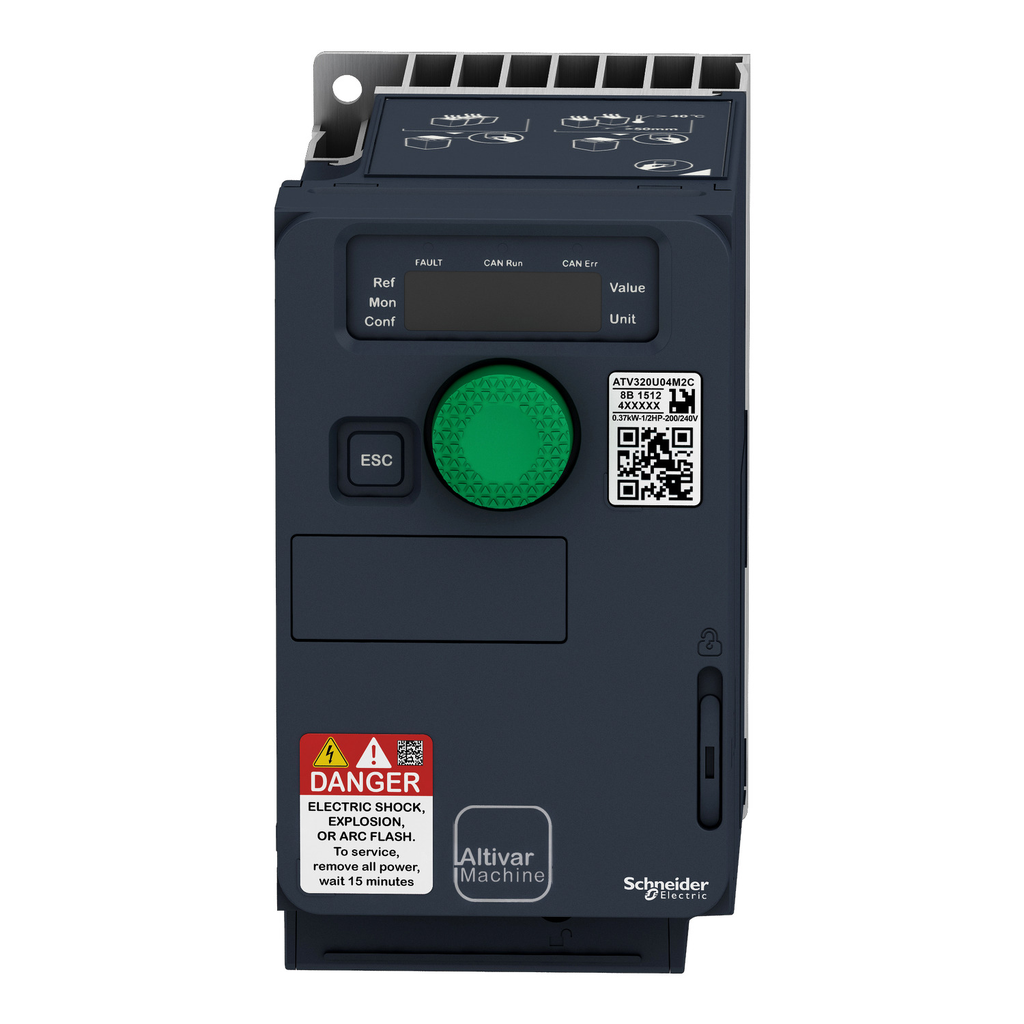

variable speed drive, Altivar Machine ATV320, 0.75kW, 200 to 240V, 3 phases, compact

ATV320 DRIVE 1HP 230V 5.6A

SQDATV320U07M3C ATV320U07M3C 3606480966613
586.20 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Machine ATV320, 0.75kW, 200 to 240V, 3 phases, compact-1
  • Country of Origin: Indonesia
  • Depth: 5.43 in
  • Height: 5.63 in
  • Operating Position: Vertical +/- 10 Degree
  • Width: 2.83 in
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.75kW / 1hp and a r
QTY
  • Product Description
  • Features
  • Specifications
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.75kW / 1hp and a r
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3
    • class 1S2 according to EN 60721-3
  • Analogue Input Type
    • AI1 voltage 0...10 V DC 30 kOhm 10 bits
    • AI2 bipolar di
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
    • software-confi
  • Communication
    • VW3A3608
    • VW3A3616
    • VW3A3627
  • Carbon Footprint Of The Installation Phase A5
    • 0.6 kg CO2 eq.
    • 0.6472608850097334
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1.6321852135371424
    • 2 kg CO2 eq.
  • Discrete Input Type
    • STO safe torque off, 24 V DC1.5 kOhm
    • DI1...DI6 logic inputs, 24 V DC 30 V)
    • DI1...DI6 logic inputs, 24 V DC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 27 kg CO2 eq.
    • 27.189626062205267
  • Method Of Access
    • slave CANopen
  • Line Current
    • 6.3 A 200 V heavy duty)
    • 5.3 A 240 V heavy duty)
  • Motor Slip Compensation
    • automatic whatever the load
    • adjustable 0...300 %
    • not available in voltage/frequency ratio (2 or 5 points)
  • Maximum Switching Current
    • relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
    • re
  • Relay Output Type
    • configurable relay logic R1A 1 NO 100000 cycles
    • configurable relay logic R1B 1 NC 100000 cycles
    • configurable r
  • Marking
    • CE
    • ATEX
    • UL
    • CSA
    • EAC
    • RCM
  • Protection Type
    • input phase breaks drive
    • overcurrent between output phases and earth drive
    • overheating protection drive
    • short-circuit between motor phases drive
    • short
  • Accessories
    • VW3A9804
    • VW3A95811
    • VW3A9523
    • VW3A3600
  • Sampling Duration
    • 2 ms AI1, AI2, AI3) - analog input
    • 2 ms AQ1) - analog output
  • Linearity Error
    • AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input
    • AQ1 +/- 0.3 % analog output
    • AQ1 +/- 0.3 % anal
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S2 according to IEC 60721-3-3
  • Communication Port Protocol
    • Modbus serial
    • CANopen
  • Option Card
    • communication module, CANopen
    • communication module, EtherCAT
    • communication module, Profibus DP V1
    • communication module, PROFINET
    • communication module, PROFI
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Refresh Time
    • logic input DI1...DI4)8 ms
    • relay output R1A, R1B, R1C)2 ms
    • relay output R2A, R2C)2 ms
    • relay output R2A, R2C)2
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 644 kg CO2 eq.
    • 644.3120898961463
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electro
  • Apparent Power
    • 2.2 kVA 240 V heavy duty)
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3
    • class 2S1 according to EN 60721-3
  • Us Rated Supply Voltage
    • 200...240 V - 15...10 %
  • Carbon Footprint Of The Distribution Phase A4
    • 0.2160198795932461
    • 0.2 kg CO2 eq.
  • Minimum Switching Current
    • relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
  • Motor Power Kw
    • 0.75 kW heavy duty
  • Discrete Input Logic
    • positive logic (source)
    • negative logic (sink)
  • Asynchronous Motor Control Profile
    • voltage/frequency ratio, 5 points
    • flux vector control without sensor, standard
    • voltage/frequency ratio - Energy Saving, quadratic U/f
    • flux vector control without sensor - Energy Saving
    • voltage/frequency ratio, 2 points
  • Transient Overtorque
    • 170-200 % of nominal motor torque
  • Discrete Output Type
    • open collector DQ+ 0-1 kHz 30 V DC 100 mA
    • op
  • Power Dissipation In W
    • self-cooled 42.0 W 200 V 4 kHz
  • Ambient Air Temperature For Operation
    • -10-50 °C without derating
    • 50-60 °C with derating factor
  • Speed Accuracy
    • +/- 10 % of nominal slip 0.2 Tn to Tn
  • Product Certifications
    • CE
    • ATEX
    • NOM
    • GOST
    • EAC
    • RCM
    • KC
  • Switching Frequency
    • 2...16 kHz adjustable
    • 4...16 kHz with derating factor
  • Conformance Attributes
    • Standards : IEC 61800-5-1
  • Complementary Attributes
    • Brake Chopper Integrated : True
    • Maximum Associated Fuse Rating : 12.0 A
    • Maximum Horse Power Rating : 1 hp
    • Maximum Input Current Per Phase : 6.3 A
    • Maximum Output Frequency : 0.599 kHz
    • Maximum Output Voltage : 240 V
    • Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 3.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 3.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-04
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 27.1896260622053
    • Distribution Carbon Footprint : 0.216019879593246
    • Installation Carbon Footprint : 0.647260885009733
    • Use Carbon Footprint : 644.312089896146
    • End Of Life Carbon Footprint : 1.63218521353714
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1601008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1714
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : False
    • 4 Quadrant Operation Possible : True
    • Application In Domestic And Commercial Area Permitted : False
    • Base Load Current At High Overload : 2.3 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 470 µF
    • Computer Port : True
    • Design Of Frequency Changer : U converter
    • Emc Filter : without EMC filter
    • Encoder Protocol : RS 422
    • Format Of The Drive : compact
    • Housing Material : plastic
    • Maximum Associated Fuse Rating : 12.0 A
    • Maximum Input Current Per Phase : 6.3 A
    • Mounting Mode : wall mount
    • Network Frequency : 50-60 Hz
    • Nominal Switching Frequency : 4 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 0
    • Number Of Hw Interfaces Other : 1
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : True
    • Operating Position : vertical +/- 10 degree
    • Optical Interface Present : False
    • Overvoltage Category : III
    • Package Weight Lbs : 1.178 kg
    • Phase : 3 phase
    • Power Loss Per Device Current Dependent : 42.0 W
    • Power Loss Static Current Independent : 42.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : complex machines
    • Prospective Line Isc : 5 kA
    • Range Of Product : Altivar Machine ATV320
    • Regulation Loop : adjustable PID regulator
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Supporting Protocol For As Interface Safety At Work : False
    • Supporting Protocol For Asi : False
    • Supporting Protocol For Bacnet : False
    • Supporting Protocol For Can : True
    • Supporting Protocol For Data Highway : False
    • Supporting Protocol For Devicenet : True
    • Supporting Protocol For Devicenet Safety : False
    • Supporting Protocol For Ethernet Ip : True
    • Supporting Protocol For Foundation Fieldbus : False
    • Supporting Protocol For Interbus : False
    • Supporting Protocol For Knx : False
    • Supporting Protocol For Lon : False
    • Supporting Protocol For Modbus : True
    • Supporting Protocol For Other Bus Systems : True
    • Supporting Protocol For Profibus : True
    • Supporting Protocol For Profinet Cba : False
    • Supporting Protocol For Profinet Io : True
    • Supporting Protocol For Profisafe : False
    • Supporting Protocol For Safetybus P : False
    • Supporting Protocol For Sercos : False
    • Supporting Protocol For Suconet : False
    • Supporting Protocol For Tcp Ip : True
    • Sustainable Packaging : Yes
    • Synchronous Motor Control Profile : vector control without sensor
    • Total Lifecycle Carbon Footprint : 674 kg CO2 eq.
    • Variant : standard version
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : False
    • Emc Limit Value Complied : False
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : False
    • With Safety Function Safe Direction Sdi : False
    • With Safety Function Safe Operating Stop Sos : False
    • With Safety Function Safe Position Sp : False
    • With Safety Function Safe Speed Monitor Ssm : False
    • With Safety Function Safe Stop 1 Ss1 : True
    • With Safety Function Safe Torque Off Sto : True
    • With Safety Function Safely Limited Position Slp : False
    • With Safety Function Safely Limited Speed Sls : True
    • With Sft Fct Safe Stop 2 Ss2 : False
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 673.9971819364916
    • Relationshiptype : Compatible relationship
    • Application In Industrial Area Permitted : True
    • Supporting Protocol For Interbus Safety : False
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Machine ATV320
  • Output Attributes
    • Analogue Output Number : 1
    • Discrete Output Number : 3
    • Maximum Output Frequency : 0.599 kHz
    • Maximum Output Voltage : 240 V
    • Nominal Output Current : 4.8 A
    • Nominal Output Power : 0.75 kW
  • Surge Protection And Filtering Attributes
    • Emc Filter : without EMC filter
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=459978875&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 673.997181936492
    • Ambient Air Temperature For Storage : -25-70 °C
    • Ambient Air Transport Temperature : -25-70 °C
    • Circularity Profile : ENVEOLI1601008EN
    • Environmental Disclosure : ENVPEP1601008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP20
    • Nema Degree Of Protection : NEMA 1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
  • Input Attributes
    • Analogue Input Number : 3
    • Discrete Input Number : 7
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : Indonesia
    • Height : 5.63 in
    • Width : 2.83 in
    • Depth : 5.43 in
