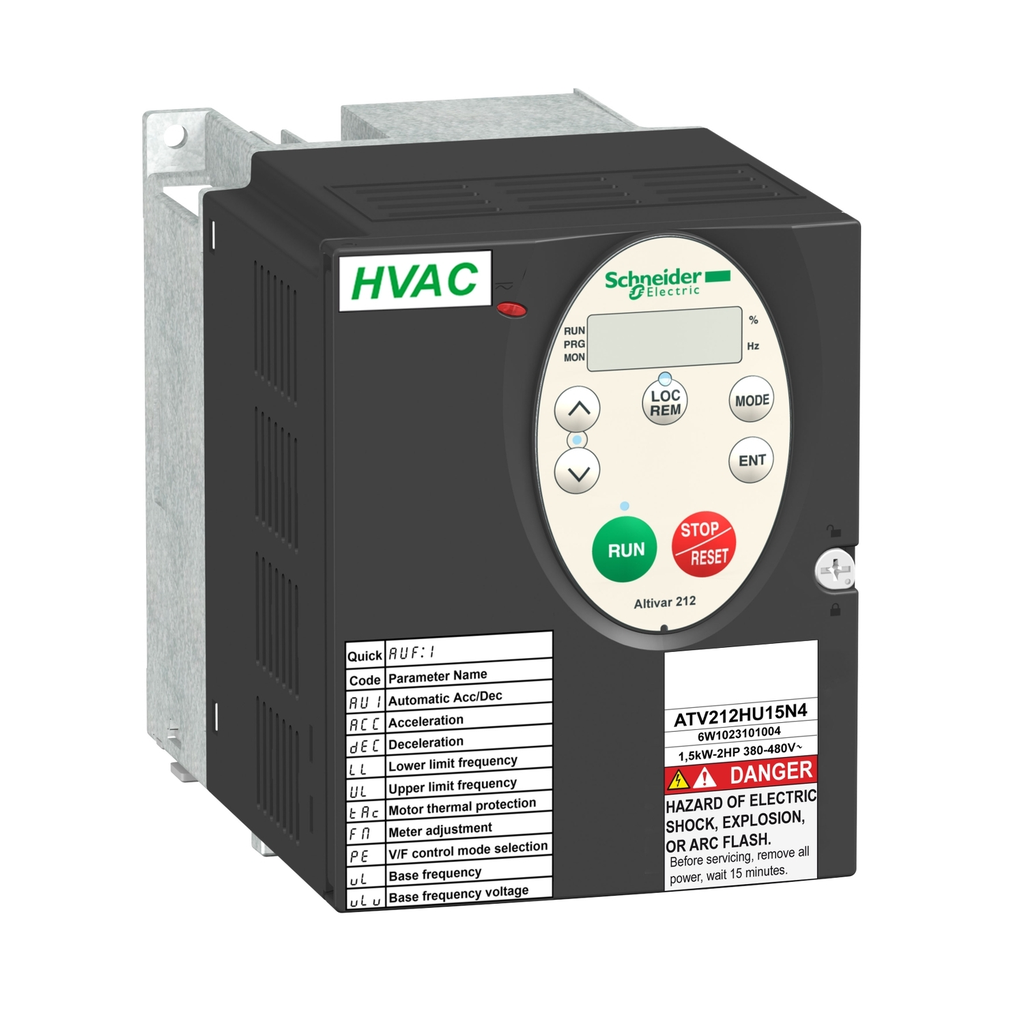

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 2kg and its dimensions are, 107mm wide, 143mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It can also be mounted directly on a 35 mm wide DIN rail, thanks to the kit VW3A31852, to order separately. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

• Environment
• Product Certifications : CSA || NOM 117 || UL || C-tick
• Standards : IEC 61800-3 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 category C3 || IEC 61800-3 environments 2 category C1 || UL Type 1 || EN 61800-3 category C3 || IEC 61800-3 category C2 || IEC 61800-3 environments 2 category C2 || EN 55011 class A group 1
• Electromagnetic Compatibility : electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
• Ambient Air Temperature For Operation : -10-40 °C without derating) || 40-50 °C with derating factor)
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Environmental Characteristic : classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
• Marking : CE
• Vibration Resistance : 1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
• Noise Level : 51 dB 86/188/EEC
• Pollution Degree : 3 IEC 61800-5-1
• Regulation Loop : adjustable PI regulator
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Assembly Style : with heat sink
• Ip Degree Of Protection : IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
• Operating Altitude : 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Operating Position : vertical +/- 10 degree
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Prospective Line Isc : 5 kA
• Electrical Connection : VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
• Network Frequency : 47.5...63 Hz
• Discrete Input Logic : positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
• Type Of Cable : without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
• Height : 143 mm
• Acceleration And Deceleration Ramps : automatic based on the load || linear adjustable separately from 0.01 to 3200 s
• Analogue Output Type : FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
• Speed Drive Output Frequency : 0.5-200 Hz
• Discrete Output Type : configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
• Transmission Frame : RTU
• Torque Accuracy : +/- 15 %
• Asynchronous Motor Control Profile : voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 2 points
• Maximum Switching Current : 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
• Communication Service : write single register (06) || read device identification (43) || time out setting from 0.1 to 100 s || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || monitoring inhibitable
• Transient Overtorque : 120-120 % of nominal motor torque +/- 10 % 60 s
• Insulation Resistance : >= 1 mOhm 500 V DC for 1 minute
• Response Time : FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
• Data Format : 8 bits, 1 stop, odd even or no configurable parity
• Apparent Power : 3.9 kVA 380 V
• Dielectric Strength : 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
• Power Range : 2.2-3 kW 380-440 V 3 phase || 2.2-3 kW 480-500 V 3 phase
• Net Weight : 2 kg
• Type Of Polarization : no impedance
• Frequency Resolution : display unit 0.1 Hz || analog input 0.024/50 Hz
• Accuracy : +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
• Switching Frequency : 6...16 kHz adjustable || 12...16 kHz with derating factor
• Maximum Transient Current : 5.6 A 60 s
• Connector Type : 1 open style || 1 RJ45
• Analogue Input Number : 2
• Functionality : mid
• Motor Slip Compensation : not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
• Motor Starter Type : variable speed drive
• Discrete Output Number : 2
• Minimum Switching Current : 3 mA 24 V DC configurable relay logic
• Analogue Output Number : 1
• Physical Interface : 2-wire RS 485
• Power Dissipation In W : 103 W
• Continuous Output Current : 5.1 A 380 V || 5.1 A 460 V
• Number Of Addresses : 1-247
• Tightening Torque : 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
• Discrete Input Type : F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
• Speed Range : 1-10
• Isolation : electrical between power and control
• Local Signalling : for DC bus energized 1 LED (red)
• Linearity Error : VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
• Specific Application : HVAC
• Output Voltage : <= power supply voltage
• Nominal Switching Frequency : 12 kHz
• Width : 107 mm
• Transmission Rate : 9600 bps or 19200 bps
• Braking To Standstill : by DC injection
• Air Flow : 35 m3/h
• Depth : 150 mm
• Protection Type : overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit drive || against exceeding limit speed drive || line supply overvoltage and undervoltage drive || line supply undervoltage drive || against input phase loss drive || thermal protection motor || motor phase break motor || with PTC probes motor
• Supply : internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
• Analogue Input Type : VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
• Discrete And Process Manufacturing : building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
• Sampling Duration : 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
• Speed Accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn
• Option Card : communication card LonWorks
• Specifications
• Product Destination : asynchronous motors
• Range Of Product : Altivar 212
• Product Or Component Type : variable speed drive
• Ip Degree Of Protection : IP21
• Motor Power Kw : 2.2 kW
• Phase : 3 phase
• Line Current : 3.6 A 480 V || 4.6 A 380 V
• [Us] Rated Supply Voltage : 380...480 V - 15...10 %
• Communication Port Protocol : BACnet || LonWorks || Modbus || METASYS N2 || APOGEE FLN
• Supply Voltage Limits : 323-528 V
• Product Specific Application : pumps and fans in HVAC
• Emc Filter : Class C2 EMC filter integrated
• Maximum Horse Power Rating : 3 hp
• Device Short Name : ATV212
• Supply Frequency : 50...60 Hz - 5...5 %
