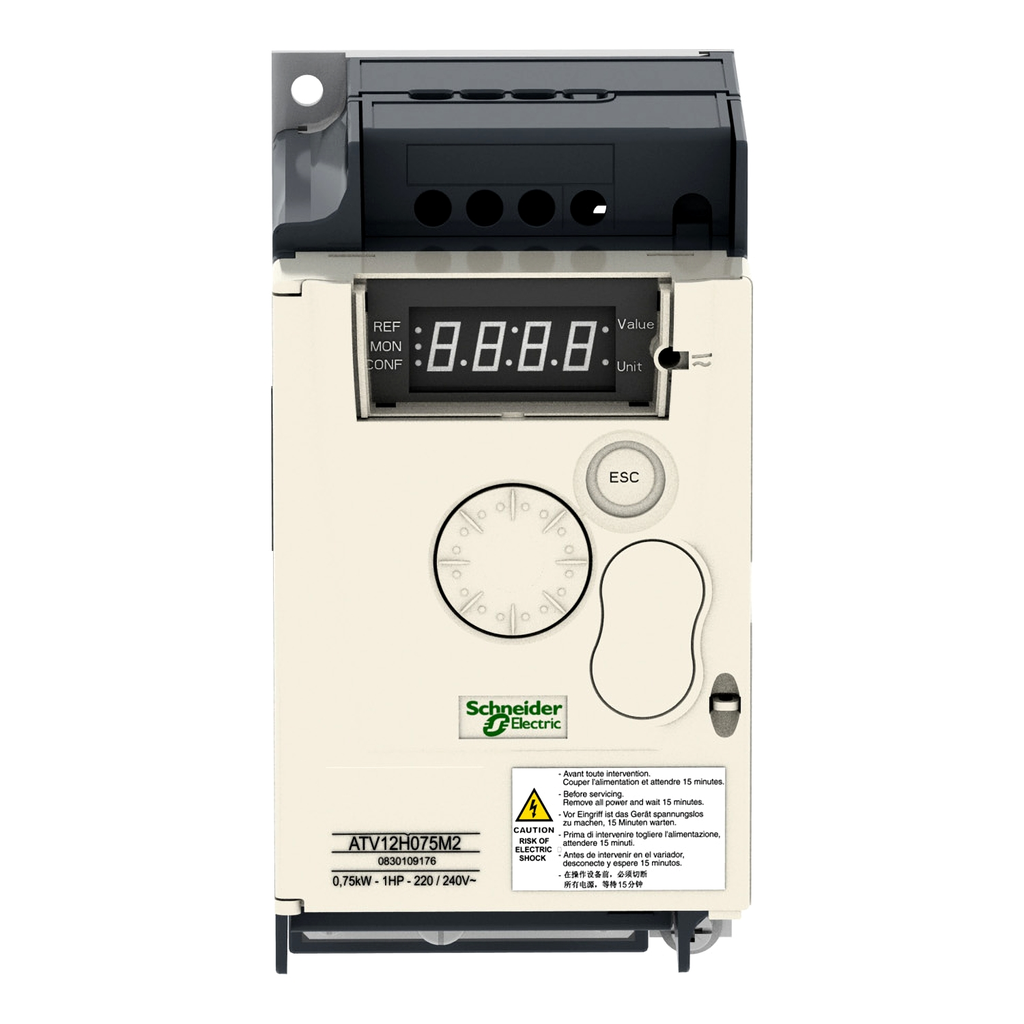

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

• Environment
• Product Certifications : NOM || CSA || C-tick || UL || GOST || RCM || KC
• Maximum Deflection Under Vibratory Load (During Operation) : 1.5 mm at 2...13 Hz
• Standards : UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
• Vibration Resistance : 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Regulation Loop : adjustable PID regulator
• Operating Altitude : > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Overvoltage Category : class III
• Environmental Class (During Operation) : class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Electromagnetic Emission : radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m || conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m
• Maximum Acceleration Under Shock Impact (During Operation) : 150 m/s² at 11 ms
• Pollution Degree : 2
• Electromagnetic Compatibility : electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || surge immunity test level 3 IEC 61000-4-5 || voltage dips and interruptions immunity test IEC 61000-4-11
• Ambient Air Temperature For Operation : -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
• Marking : CE
• Maximum Acceleration Under Vibrational Stress (During Operation) : 10 m/s² at 13...200 Hz
• Noise Level : 0 dB
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Assembly Style : with heat sink
• Operating Position : vertical +/- 10 degree
• Ambient Air Transport Temperature : -25-70 °C
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Rohs Exemption Information : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Prospective Line Isc : 1 kA
• Network Frequency : 50-60 Hz
• Power Dissipation In W : natural 44.0 W
• Line Current : 10.2 A 100 V heavy duty) || 8.5 A 120 V heavy duty)
• Asynchronous Motor Control Profile : quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
• 4 Quadrant Operation Possible : false
• Relative Symmetric Network Frequency Tolerance : 5 %
• Apparent Power : 2.0 kVA 240 V heavy duty)
• Net Weight : 0.8 kg
• With Safety Function Safe Direction (Sdi) : false
• Type Of Polarization : no impedance
• Frequency Resolution : analog input converter A/D, 10 bits || display unit 0.1 Hz
• Switching Frequency : 2...16 kHz adjustable || 4...16 kHz with derating factor
• Maximum Transient Current : 6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
• Communication Service : read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
• Analogue Input Number : 1
• Motor Slip Compensation : preset in factory || adjustable
• Discrete Output Number : 2
• With Safety Function Safe Position (Sp) : false
• Method Of Access : server Modbus serial
• With Safety Function Safely Limited Position (Slp) : false
• With Safety Function Safe Operating Stop (Sos) : false
• Number Of Addresses : 1-247
• Speed Range : 1-20
• Discrete Input Number : 4
• Linearity Error : +/- 0.3 % of maximum value analogue input
• With Sft Fct Safe Stop 2 (Ss2) : false
• With Safety Function Safe Stop 1 (Ss1) : false
• Width : 72 mm
• Transmission Rate : 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
• Depth : 131.2 mm
• Sampling Duration : 20 ms +/- 1 ms logic input || 10 ms analogue input
• Maximum Output Frequency : 4 kHz
• With Safety Function Safe Brake Management (Sbc/Sbt) : false
• Height : 143 mm
• Acceleration And Deceleration Ramps : linear from 0 to 999.9 s || U || S
• Time Constant : 20 ms +/- 1 ms for reference change
• Maximum Output Voltage : 240 V
• Base Load Current At High Overload : 4.2 A
• Speed Drive Output Frequency : 0.5-400 Hz
• Transmission Frame : RTU
• With Safety Function Safe Speed Monitor (Ssm) : false
• Relay Output Number : 1
• Transient Overtorque : 150-170 % of nominal motor torque depending on drive rating and type of motor
• With Safety Function Safe Torque Off (Sto) : false
• Data Format : 8 bits, configurable odd, even or no parity
• Connector Type : 1 RJ45
• Analogue Output Number : 1
• Physical Interface : 2-wire RS 485
• Insulation : electrical between power and control
• Tightening Torque : 0.8 N.m
• Continuous Output Current : 4.2 A 4 kHz
• With Safety Function Safe Programmable Logic : false
• Brake Chopper Integrated : false
• Nominal Switching Frequency : 4 kHz
• Quantity Per Set : set of 1
• Braking To Standstill : by DC injection
• Protection Type : line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by continuous calculation of I²t
• With Safety Function Safely Limited Speed (Sls) : false
• Specifications
• Product Or Component Type : variable speed drive
• Ip Degree Of Protection : IP20
• Communication Port Protocol : Modbus
• Nominal Output Current : 4.2 A
• Product Specific Application : simple machine
• Maximum Horse Power Rating : 1 hp
• Supply Frequency : 50/60 Hz +/- 5 %
• Range Of Product : Altivar 12
• Motor Power Kw : 0.75 kW
• [Us] Rated Supply Voltage : 200...240 V - 15...10 %
• Mounting Mode : cabinet mount
• Emc Filter : integrated
