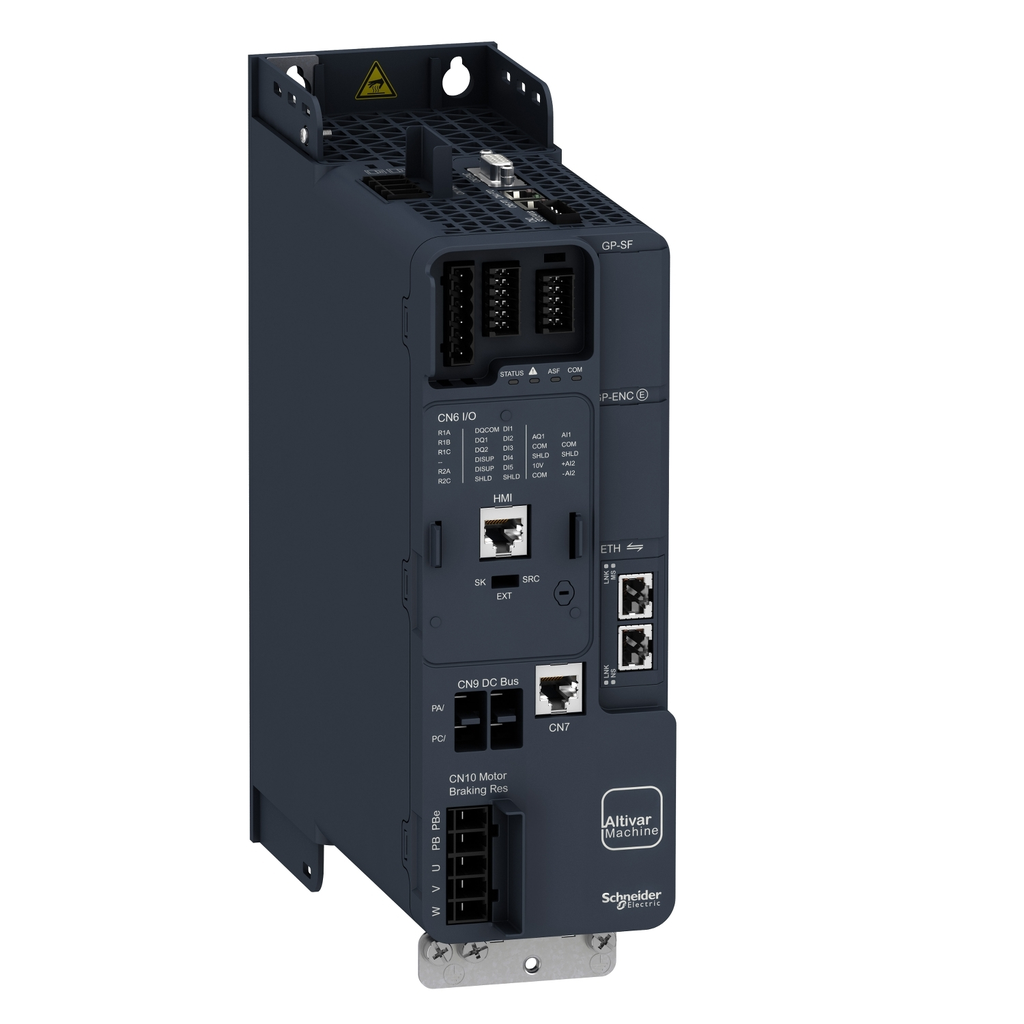

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 4kW / 5hp and a rated voltage from

• Insulation Resistance
• > 1 MOhm 500 V DC for 1 minute to earth
• Environmental Class During Storage
• class 1C3 according to EN 60721-3-1
• class 1S2 according to EN 60721-3-1
• Power Range
• 4-6 kW 380-440 V 3 phase
• 4-6 kW 480-500 V 3 phase
• Connector Type
• 1 x RJ45, Modbus serial on front face
• 1 x RJ45, Modbus serial HMI on front face
• 1 x RJ45, Modbus s
• US Rated Supply Voltage
• 380...480 V - 15...10 %
• Input Output Type
• programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA
• programmable as logic input/output DQ1 0-1 kHz, <= 30
• Exchange Mode
• half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005931_3D-CAD&p_File_name=MCADID0005931_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005931_3D-CAD&p_File_name=mcadid0005931_3d-simplified_2D-back.dwg
• Analogue Input Type
• AI1 software-configurable current 0...20 mA 250 Ohm 12 bits
• AI1 software-c
• Continuous Output Current
• 12.7 A 4 kHz normal duty
• 9.3 A 4 kHz heavy duty
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Analogue Output Type
• software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
• softwa
• Carbon Footprint Of The Installation Phase A5
• 0.8 kg CO2 eq.
• 0.8168029214270414
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 5.321481644663151
• 5 kg CO2 eq.
• Encoder Protocol
• 1 Vpp
• EnDat 2.2
• resolver
• RS 422
• SSI 24V
• SSI 5V
• TTL/HTL
• Discrete Input Type
• PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V)
• PTI programmable as pulse inpu
• Electrical Connection
• screw terminal 1.5...4 mm² line side
• screw terminal 4...6 mm² DC bus
• screw terminal 1.5...4 mm² motor
• screw terminal
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 82 kg CO2 eq.
• 82.44991938973719
• Method Of Access
• slave Modbus RTU
• slave Modbus TCP
• Line Current
• 11.4 A 380 V normal duty)
• 9.0 A 480 V normal duty)
• 13.4 A 380 V heavy duty)
• 10.6 A 480 V heavy duty)
• 1
• Motor Slip Compensation
• not available in permanent magnet motor law
• adjustable
• automatic whatever the load
• can be suppressed
• Maximum Switching Current
• relay output R1C resistive, cos phi = 1 3 A 250 V AC
• relay output R1C resistive, cos phi = 1 3
• Relay Output Type
• relay outputs R1A
• relay outputs R1C 100000 cycles
• relay outputs R2A
• relay outputs R2C 100000 cycles
• relay outputs R2C 1000
• Input Compatibility
• DI1...DI5 discrete input level 1 PLC IEC 61131-2
• PTI pulse input level 1 PLC IEC 65A-68
• PTI pulse input lev
• Protection Type
• thermal protection motor
• safe torque off motor
• motor phase loss motor
• thermal protection drive
• safe torque off drive
• overheating drive
• ov
• Sampling Duration
• 2 ms +/- 0.5 ms DI1...DI5) - discrete input
• 5 ms +/- 1 ms PTI) - pulse input
• 5 ms +/- 1 m
• Linearity Error
• AI1, AI2 +/- 0.15 % of maximum value analog input
• AQ1 +/- 0.2 % analog output
• Environmental Class During Operation
• class 3C3 according to IEC 60721-3-3
• class 3S3 according to IEC 60721-3-3
• Maximum Horse Power Rating
• 7 hp normal duty
• 5 hp heavy duty
• Vibration Resistance
• 1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M3
• 1 gn 9-200 Hz)IEC 60721-3-3 class 3M3
• 1 gn 9-2
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• System Integrator
• Motor Power KW
• 5.5 kW normal duty
• 4 kW heavy duty
• Refresh Time
• relay output R1, R2)5 ms +/- 0.5 ms)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 3 073 kg CO2 eq.
• 3073.411095932424
• Electromagnetic Compatibility
• electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
• radiated radio-frequency electro
• Supply Frequency
• 50...60 Hz +/- 5 %
• Apparent Power
• 9 kVA 480 V normal duty)
• 8.8 kVA 480 V heavy duty)
• Persona Type Ids
• EU
• OM
• OM8
• SI
• Environmental Class During Transport
• class 2C3 according to EN 60721-3-2
• class 2S1 according to EN 60721-3-2
• Carbon Footprint Of The Distribution Phase A4
• 0.596734656804345
• 0.6 kg CO2 eq.
• Synchronous Motor Control Profile
• permanent magnet motor
• reluctance motor
• Minimum Switching Current
• relay output R1B 5 mA 24 V DC
• relay output R2C 5 mA 24 V DC
• relay output R
• Operating Altitude
• <= 9842.52 ft (3000 m) with current derating above 1000m
• Safety Function
• STO (safe torque off) SIL 3
• Discrete Input Logic
• positive logic (source) DI1...DI5), < 5 V, > 11 V
• negative logic (sink) DI1...DI5), > 16 V, < 10 V
• negat
• Asynchronous Motor Control Profile
• constant torque standard
• variable torque standard
• optimized torque mode
• Discrete Output Type
• programmable output DQ1, DQ2 30 V DC 100 mA
• Shock Resistance
• 15 gn 11 ms, class 3M3 IEC 60721-3-3
• Maximum Transient Current
• 14 A 60 s normal duty)
• 14 A 60 s heavy duty)
• 17.1 A 2 s normal duty)
• 16.7 A 2 s heavy duty)
• 1
• Discrete And Process Manufacturing
• hoisting tower crane
• hoisting other application
• material handling grouping conveyor
• material handling palletizer - high performance
• material handling palletizer - high pe
• Power Dissipation In W
• natural convection 99 W 380 V 4 kHz heavy duty)
• forced convect
• Ambient Air Temperature For Operation
• -15-50 °C without derating vertical position)
• 50-60 °C with derating factor vertical position)
• 50-60 °C with dera
• UE Rated Operational Voltage
• 380...480 V 5.5 kW normal duty
• 380...480 V 4 kW heavy duty
• 380...480 V 7 hp normal duty
• 380...480 V 7 hp no
• Switching Frequency
• 2...16 kHz adjustable
• 4...16 kHz with derating factor

• Communications & Management Attributes
• Communication : VW3A3800
• Complementary Attributes
• Brake Chopper Integrated : true
• Maximum Associated Fuse Rating : 25.0 A
• Maximum Input Current Per Phase : 13.4 A
• Maximum Output Voltage : 480 V
• Maximum Acceleration Under Shock Impact During Operation : 70 m/s² at 22 ms
• Maximum Acceleration Under Shock Load During Storage : 70 m/s² at 22 ms
• Maximum Acceleration Under Shock Load During Transport : 70 m/s² at 22 ms
• Maximum Acceleration Under Vibrational Stress During Operation : 5 m/s² at 9...200 Hz
• Maximum Acceleration Under Vibratory Load During Storage : 5 m/s² at 9...200 Hz
• Maximum Acceleration Under Vibratory Load During Transport : 5 m/s² at 9...200 Hz
• Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...9 Hz
• Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...9 Hz
• Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...9 Hz
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• Device Type : Variable speed drive - VSD Compacts
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 10 year(s)
• Manufacturing Carbon Footprint : 82.4499193897372
• Distribution Carbon Footprint : 0.596734656804345
• Installation Carbon Footprint : 0.816802921427041
• Use Carbon Footprint : 3073.41109593242
• End Of Life Carbon Footprint : 5.32148164466315
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311030EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1923
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : YES_SSI2
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• 1 Phase Low Current Possible : false
• 4 Quadrant Operation Possible : true
• Application In Domestic And Commercial Area Permitted : false
• Assembly Style : with heat sink
• Base Load Current At High Overload : 9.3 A
• Base Load Current At Low Overload : 12.7 A
• Braking To Standstill : by DC injection
• Capacity Of Dc Link : 560.0 µF
• Computer Port : true
• Design Of Frequency Changer : U converter
• Housing Material : plastic
• Isolation : between power and control terminals
• Maximum Associated Fuse Rating : 25.0 A
• Maximum Input Current Per Phase : 13.4 A
• Motor Starter Type : variable speed drive
• Nominal Switching Frequency : 4 kHz
• Number Of Hw Interfaces Industrial Ethernet : 2
• Number Of Hw Interfaces Other : 0
• Number Of Hw Interfaces Parallel : 0
• Number Of Hw Interfaces Profinet : 0
• Number Of Hw Interfaces Serial Rs232 : 0
• Number Of Hw Interfaces Serial Rs422 : 0
• Number Of Hw Interfaces Serial Rs485 : 1
• Number Of Hw Interfaces Serial Tty : 0
• Number Of Hw Interfaces Usb : 0
• Number Of Output Phases : 3
• Operating Element Present : true
• Optical Interface Present : false
• Package Weight Lbs : 2.979 kg
• Power Loss Per Device Current Dependent : 136.0 W
• Power Loss Static Current Independent : 16.0 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : variable speed drive
• Product Specific Application : machine
• Range Of Product : Altivar Machine ATV340
• Relative Symmetric Mains Voltage Tolerance : 10 %
• Relative Symmetric Network Frequency Tolerance : 5 %
• Returnability : Yes
• Specific Application : machine
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Bacnet : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethernet Ip : true
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : true
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For TCP IP : true
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 3 163 kg CO2 eq.
• Variant : standard version
• Volume Of Cooling Air : 19.0 m3/h
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• With Safety Function Safe Programmable Logic : false
• EMC Limit Value Complied : true
• Number Of Inputs Bidirectional Not Potential Free : 0
• Number Of Inputs Potential Free : 0
• Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
• With Safety Function Safe Brake Management Sbc Sbt : true
• With Safety Function Safe Direction SDI : false
• With Safety Function Safe Operating Stop Sos : false
• With Safety Function Safe Position Sp : false
• With Safety Function Safe Speed Monitor Ssm : false
• With Safety Function Safe Stop 1 SS1 : true
• With Safety Function Safe Torque Off Sto : true
• With Safety Function Safely Limited Position Slp : false
• With Safety Function Safely Limited Speed Sls : true
• With Sft Fct Safe Stop 2 Ss2 : false
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 3162.5960345450553
• Relationship Type : Compatible relationship
• Accessories : VW3A4430
• Application In Industrial Area Permitted : true
• Supporting Protocol For Interbus Safety : false
• Pep Code : ENVPEP2311030EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 3062.27
• Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 480V ra
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 7498.56
• Energy Model Manufacturing A1 A3 : Indonesia, ID
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Recyclability Potential In : 47
• Acidification Ap Mole Of H Equiv Total Life Cycle : 18.155393757894732
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.6014308552735338
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.003775674559425729
• Acidification Ap Mole Of H Equiv Installation A5 : 0.002368435832252669
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 17.53752136424482
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.01029742798469896
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.03360667329186326
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 4.660702400102916
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.5017132367271947
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.03832437097803847
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 4.09987474180259
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.02079005059509362
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1990408109882221
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 3157.934611653608
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 81.9474861376527
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.596734656804345
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.7784784836865907
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 3069.311221190622
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 5.300691184842586
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -6.277878881642962
• Climate Change Total Kg Co2 Eq Total Life Cycle : 3162.5960345450553
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 82.44991938973719
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.596734656804345
• Climate Change Total Kg Co2 Eq Installation A5 : 0.8168029214270414
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 3073.411095932424
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 5.321481644663151
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -6.477627856046949
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.013237385227347112
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.01301298981928772
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000002346985704268
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000002095199894115
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0002226407430512389
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000171024315217112
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0001462741893173766
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 79739.83767337498
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1376.157392581339
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 8.316797610905594
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 8.002970682885513
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 78301.37573018936
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 45.98478231047195
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -112.1164799944813
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 35462.40018068337
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1796.10844007889
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.4015893582758344
• Ecotoxicity Fresh Water Ctue Installation A5 : 9.266108925943648
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 33098.28680231684
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 558.3372400034194
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -337.6814055128108
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00013965534034623167
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000347098753856495
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000003070478285382
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000001428889060519
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.000136063630537749
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000007572859645871
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000004921151813987
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.034161424630754444
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.000698699364907223
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.03298136447140021
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.0004813607944470053
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.009217719104269599
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0007031315687040897
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000022362648922184
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00001863074969053273
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.008414658838976054
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00008107432040970006
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00002659030868004477
• Hazardous Waste Disposed Of Kg Total Life Cycle : 189.8456993540558
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 188.6170141153933
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.02013422844330029
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.208551010219196
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -11.89954347692718
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000480027885210794
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000255678553304117
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000001047663661
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000009124834861492
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000035840519936817
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000179382929444707
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000170216306555904
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00001691946712964814
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000256028684147178
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000113374904483
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000336708495783
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00001421634325177113
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000013833620240256
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000008488259256721
• Impacts Related To Land Use Soil Quality Total Life Cycle : 64.31603198215961
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 2.371392169544581
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.02860154908501704
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 61.1518525121246
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.7641857514054216
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -1.975973661128485
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 5714.627291198334
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1127.255789297182
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.001452085985784337
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.1243384475097615
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 4569.695929383599
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 17.54978198405713
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -4.355198720956262
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 2.0653079275818618
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.06722686659746378
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.001769761292416558
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00102914499243961
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 1.992296657219836
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00298549747970576
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.003287599908341147
• Materials For Energy Recovery Kg Total Life Cycle : 0.00000001157716892971
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000001157716892971
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 1.1739415119594339
• Materials For Recycling Kg Manufacturing A1 A3 : 0.06699993049935092
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.0025461
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 1.104395481460083
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 3.2646227651880984
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.7176468119486837
• Net Use Of Fresh Water M3 Distribution A4 : 0.00005271183207151443
• Net Use Of Fresh Water M3 Installation A5 : 0.001588377578125658
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 2.532007182350634
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0133276814785836
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.03164439336240624
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 471.87427746561644
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 27.83759830558927
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0209267346489414
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.3502459161102759
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 442.1984051251523
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.46710138411564
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -8.706707491746506
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00002509506594079399
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00001176205856566523
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000091389347867
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000001061930253469
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00001314180967550359
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000017966450361181
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000006656869900653
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 6.6610104193299255
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.2491268504159477
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.004896994901854581
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.001643178824690162
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 6.396886978600685
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.008456416586748217
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.01226314114411546
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.11254612248557311
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.01878624197510138
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00001490465724204583
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00004312962189142162
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.09255609634456828
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.001145749886769983
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.006453611275007698
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 30.70638217261225
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.7112369120760683
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.01941513526026992
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.007166596686603797
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 29.93755710159244
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.03100642699687186
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0363860270608198
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 43.26599731929207
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 43.26599731929207
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -16.36575836259743
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 94812.46331608538
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1410.807567981102
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 8.327895993191714
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 9.05323333912497
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 93337.27148468545
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 47.00313408650758
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -116.7512429847838
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15072.625642710414
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 34.65017539976222
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.01109838228611897
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.050262656239459
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 15035.89575449609
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.018351776035634
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -4.634762990302447
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26.90023895669464
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 43.26599731929207
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -16.36575836259743
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 79696.57167605568
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1332.891395262047
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 8.316797610905594
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 8.002970682885513
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 78301.37573018936
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 45.98478231047195
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -95.75072163188395
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.211306399931285
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.211306399931285
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 1.116554400000001
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15068.414336310483
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 30.43886899983094
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.01109838228611897
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.050262656239459
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 15035.89575449609
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.018351776035634
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5.751317390302449
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.7840164551570115
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.7840164551570115
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 139.85127285455854
• Water Use M3 Eq Manufacturing A1 A3 : 30.45867443282595
• Water Use M3 Eq Distribution A4 : 0.002263973187471544
• Water Use M3 Eq Installation A5 : 0.06820250431145651
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 108.7497084819597
• Water Use M3 Eq End Of Life C1 C4 : 0.5724234622739846
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1.000772592510729
• Packaging Weight In G : 762.3
• General Attributes
• Product Or Component Type : variable speed drive
• Range Of Product : Altivar Machine ATV340
• Output Attributes
• Maximum Output Voltage : 480 V
• Relay Output Number : 2
• Speed Drive Output Frequency : 0.1-599 Hz
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=442523111&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 3162.59603454506
• Ambient Air Transport Temperature : -40-70 °C
• Circularity Profile : ENVEOLI2311030EN
• Environmental Disclosure : ENVPEP2311030EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
• Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
• Pep Code : ENVPEP2311030EN
• Pep Verification Date : 2024-10-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Input Attributes
• Number Of Input Phases : 3
• Specifications
• Country of Origin : Indonesia
