SQUARE D

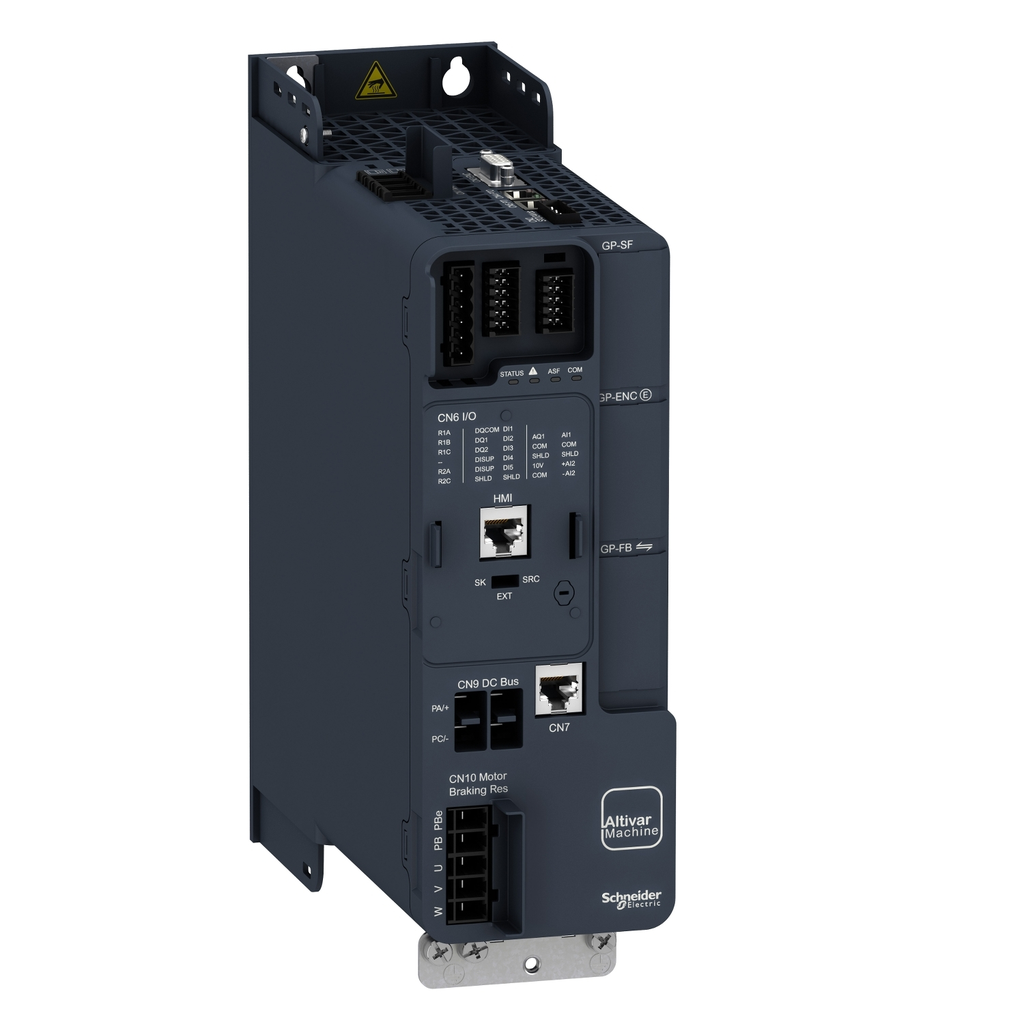

variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases

variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases

SQDATV340U15N4 ATV340U15N4 3606480966880
1100.54 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases-1
  • Country of Origin: Indonesia
  • Depth: 9.13 in
  • Height: 10.63 in
  • Operating Position: Vertical +/- 10 Degree
  • Width: 3.35 in
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 1.5kW / 2hp and a rated voltage fr
QTY
  • Product Description
  • Features
  • Specifications
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 1.5kW / 2hp and a rated voltage fr
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Power Range
    • 1.1-2 kW 380-440 V 3 phase
    • 1.1-2 kW 480-500 V 3 phase
  • Connector Type
    • 1 x RJ45, Modbus serial on front face
    • 1 x RJ45, Modbus serial HMI on front face
    • 1 x RJ45, Modbus s
  • US Rated Supply Voltage
    • 380...480 V - 15...10 %
  • Input Output Type
    • programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA
    • programmable as logic input/output DQ1 0-1 kHz, <= 30
  • Analogue Input Type
    • AI1 software-configurable current 0...20 mA 250 Ohm 12 bits
    • AI1 software-c
  • Continuous Output Current
    • 5.6 A 4 kHz normal duty
    • 4 A 4 kHz heavy duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    • softwa
  • Communication
    • VW3A3607
    • VW3A3609
    • VW3A3601
  • Carbon Footprint Of The Installation Phase A5
    • 0.7 kg CO2 eq.
    • 0.6604264266225234
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 4.302686749432925
    • 4 kg CO2 eq.
  • Encoder Protocol
    • 1 Vpp
    • EnDat 2.2
    • resolver
    • RS 422
    • SSI 24V
    • SSI 5V
    • TTL/HTL
  • Discrete Input Type
    • PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    • PTI programmable as pulse inpu
  • Electrical Connection
    • screw terminal 1.5...4 mm² line side
    • screw terminal 4...6 mm² DC bus
    • screw terminal 1.5...4 mm² motor
    • screw terminal
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 67 kg CO2 eq.
    • 66.66492517282582
  • Method Of Access
    • slave Modbus RTU
  • Line Current
    • 5.1 A 380 V normal duty)
    • 4.1 A 480 V normal duty)
    • 6.0 A 380 V heavy duty)
    • 4.9 A 480 V heavy duty)
    • 4.9 A 48
  • Motor Slip Compensation
    • can be suppressed
    • adjustable
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1C resistive, cos phi = 1 3 A 250 V AC
    • relay output R1C resistive, cos phi = 1 3
  • Relay Output Type
    • relay outputs R1A
    • relay outputs R1C 100000 cycles
    • relay outputs R2A
    • relay outputs R2C 100000 cycles
    • relay outputs R2C 1000
  • Input Compatibility
    • DI1...DI5 discrete input level 1 PLC IEC 61131-2
    • PTI pulse input level 1 PLC IEC 65A-68
    • PTI pulse input lev
  • Protection Type
    • thermal protection motor
    • safe torque off motor
    • motor phase loss motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
    • ov
  • Sampling Duration
    • 2 ms +/- 0.5 ms DI1...DI5) - discrete input
    • 5 ms +/- 1 ms PTI) - pulse input
    • 5 ms +/- 1 m
  • Linearity Error
    • AI1, AI2 +/- 0.15 % of maximum value analog input
    • AQ1 +/- 0.2 % analog output
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 3 hp normal duty
    • 2 hp heavy duty
  • Vibration Resistance
    • 1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M3
    • 1 gn 9-200 Hz)IEC 60721-3-3 class 3M3
    • 1 gn 9-2
  • Option Card
    • communication module, Profibus DP V1
    • communication module, PROFINET
    • communication module, DeviceNet
    • communication module, CANopen
    • communication module, CA
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 2.2 kW normal duty
    • 1.5 kW heavy duty
  • Refresh Time
    • relay output R1, R2)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 1 666 kg CO2 eq.
    • 1665.9611548044916
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electro
  • Supply Frequency
    • 50...60 Hz +/- 5 %
  • Apparent Power
    • 3.8 kVA 480 V normal duty)
    • 4.1 kVA 480 V heavy duty)
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Carbon Footprint Of The Distribution Phase A4
    • 0.482490116889614
    • 0.5 kg CO2 eq.
  • Synchronous Motor Control Profile
    • reluctance motor
    • permanent magnet motor
  • Minimum Switching Current
    • relay output R1B 5 mA 24 V DC
    • relay output R2C 5 mA 24 V DC
    • relay output R
  • Operating Altitude
    • <= 9842.52 ft (3000 m) with current derating above 1000m
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI5), < 5 V, > 11 V
    • negative logic (sink) DI1...DI5), > 16 V, < 10 V
    • negat
  • Asynchronous Motor Control Profile
    • optimized torque mode
    • constant torque standard
    • variable torque standard
  • Discrete Output Type
    • programmable output DQ1, DQ2 30 V DC 100 mA
  • Shock Resistance
    • 15 gn 11 ms, class 3M3 IEC 60721-3-3
  • Maximum Transient Current
    • 6.2 A 60 s normal duty)
    • 6 A 60 s heavy duty)
    • 7.6 A 2 s normal duty)
    • 7.2 A 2 s heavy duty)
    • 7.2 A
  • Discrete And Process Manufacturing
    • hoisting tower crane
    • hoisting other application
    • material handling grouping conveyor
    • material handling palletizer - high performance
    • material handling palletizer - high pe
  • Power Dissipation In W
    • natural convection 46 W 380 V 4 kHz heavy duty)
    • forced convect
  • Ambient Air Temperature For Operation
    • -15-50 °C without derating vertical position)
    • 50-60 °C with derating factor vertical position)
    • 50-60 °C with dera
  • UE Rated Operational Voltage
    • 380...480 V 2.2 kW normal duty
    • 380...480 V 1.5 kW heavy duty
    • 380...480 V 3 hp normal duty
    • 380...480 V 3
  • Switching Frequency
    • 2...16 kHz adjustable
    • 8...16 kHz with derating factor
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000956_3D-CAD
  • Complementary Attributes
    • Brake Chopper Integrated : true
    • Maximum Associated Fuse Rating : 12.5 A
    • Maximum Input Current Per Phase : 6.0 A
    • Maximum Output Voltage : 480 V
    • Maximum Acceleration Under Shock Impact During Operation : 70 m/s² at 22 ms
    • Maximum Acceleration Under Shock Load During Storage : 70 m/s² at 22 ms
    • Maximum Acceleration Under Shock Load During Transport : 70 m/s² at 22 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 5 m/s² at 9...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 5 m/s² at 9...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 5 m/s² at 9...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...9 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...9 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...9 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 66.6649251728258
    • Distribution Carbon Footprint : 0.482490116889614
    • Installation Carbon Footprint : 0.660426426622523
    • Use Carbon Footprint : 1665.96115480449
    • End Of Life Carbon Footprint : 4.30268674943293
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311030EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1923
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : true
    • Application In Domestic And Commercial Area Permitted : false
    • Assembly Style : with heat sink
    • Base Load Current At High Overload : 4.0 A
    • Base Load Current At Low Overload : 5.6 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 195.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Housing Material : plastic
    • Isolation : between power and control terminals
    • Maximum Associated Fuse Rating : 12.5 A
    • Maximum Input Current Per Phase : 6.0 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 4 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 0
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 2.476 kg
    • Power Loss Per Device Current Dependent : 69.0 W
    • Power Loss Static Current Independent : 16.0 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : machine
    • Range Of Product : Altivar Machine ATV340
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : machine
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : true
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 1 738 kg CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 18.0 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : true
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : true
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : true
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : true
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 1738.0716832702624
    • Relationship Type : Compatible relationship
    • Accessories : VW3A4430
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP2311030EN
    • Pep Verification Date : 2024-10-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 2476
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 480V ra
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 4064.6400000000003
    • Energy Model Manufacturing A1 A3 : Indonesia, ID
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Recyclability Potential In : 47
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 10.005901036835285
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.4862872306025497
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.003052823627288941
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0019150000230736051
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 9.506319991833642
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.008325990748730394
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.027172693155944262
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 2.67581950416311
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.4056604983024143
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.030987190071947696
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 2.2223620095752357
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.016809806213512135
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.16093455116852465
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 1735.395281212448
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 66.25868250573205
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.482490116889614
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.6294391825697926
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 1663.7387927949167
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 4.285876612339945
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -5.0759822324445505
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 1738.0716832702624
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 66.66492517282582
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.482490116889614
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.6604264266225234
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 1665.9611548044916
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 4.302686749432925
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -5.237489369510934
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.010643762183964253
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.010521659681398569
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000001897656510944
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000001694074963288
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00012068376726141922
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000013828179895227
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00011827007179308961
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 43606.80552886137
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1112.692774977842
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 6.724551030641404
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 6.47080610489099
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 42443.736377112
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 37.18101963599831
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -90.65183816787406
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 19852.63252629246
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1452.2444126857959
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.3247052843449357
    • Ecotoxicity Fresh Water Ctue Installation A5 : 7.49211718778438
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 17941.127425554925
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 451.44386557960814
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -273.03247592463094
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00007665819632005697
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000280646877822231
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000002482636813412
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000001155328992494
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00007375411748775181
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000006123039602379
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000039789998567833
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.02762123763931593
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0005649337346185295
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.026667099384178054
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.00038920452051934847
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.005210531735616929
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0005685173953019578
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000001808133140818
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00001506390234491375
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.004561216940753375
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00006555268390260081
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00002149960790256602
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 153.499838877905
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 152.50638478962136
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.016279540871840668
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.977174547411799
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -9.621382062610971
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000378575496596537
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000206729027153384
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000847088998
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000737788996955
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000019427571554536
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000145040160830069
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000137628483129318
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000989166743689094
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000207012125628509
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000091669337942
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000272245829257
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000770605522058622
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000011185180834764
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000006863186433477
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 35.706132092373785
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.9173903711274263
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.023125797377273133
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 33.14773313741334
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.6178827864557416
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -1.5976745306436497
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 3402.76628598791
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 911.443254285162
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.001174084878473165
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.10053391635426318
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 2477.031438357465
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 14.189885344050477
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -3.521398189280405
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 1.1389698063788007
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.05435631792602231
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0014309414127504753
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0008321157184965645
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 1.0799365057827148
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.002413925538816454
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.002658190614496005
    • Materials For Energy Recovery Kg Total Life Cycle : 0.00000000936072595492
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000000936072595492
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.9491910196068793
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.05417282862595163
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0020586504782399984
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.8929595405026877
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 1.9648465847979122
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.5802537027711276
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00004262017921642106
    • Net Use Of Fresh Water M3 Installation A5 : 0.0012842835162931842
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 1.3724898745452034
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.010776103786071443
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.025586090699160378
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 263.6907737538867
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 22.50810457753204
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.01692032217628717
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.2831915174981446
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 239.69633175008258
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.18622558659763
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -7.039812867436363
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00001678840933358724
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000951021856615749
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000073892904714
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000858624258341
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000712359776802998
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000014526782776922
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000053824156178315
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 3.681028591614179
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.201431644378153
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.003959467772923988
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.001328593092683807
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 3.4674714463442973
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.006837440026120684
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.009915369145382309
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.06633354030560921
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.015189625712413021
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00001205116835919285
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00003487247819531261
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.05017059428023328
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0009263966664084087
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00521807075042993
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 16.849468601323892
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.5750709748978193
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.015698117704979746
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.005794555475523387
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 16.22783469058282
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.02507026266274846
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.029419941090298975
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 34.982744618393276
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 34.982744618393276
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -13.23254242956736
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 51786.8021323443
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1140.7091923054495
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 6.733524633406814
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 7.319996521428035
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 50594.03501039025
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 38.00440849376207
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -94.39927819242742
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8179.996603482929
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 28.016417327607055
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.008973602765409507
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8491904165370463
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 8150.298633278256
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.8233888577637601
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.747440024553309
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 34.982744618393276
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 34.982744618393276
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -13.23254242956736
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 43571.82278424298
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1077.7100303594484
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 6.724551030641404
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 6.47080610489099
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 42443.736377112
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 37.18101963599831
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -77.41929573830677
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.405053978333022
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.405053978333022
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.9027906404072804
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8176.591549504596
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 24.61136334927404
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.008973602765409507
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8491904165370463
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 8150.298633278256
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.8233888577637601
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -4.65023066496059
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.6339169122803543
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.6339169122803543
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 84.0956261490531
    • Water Use M3 Eq Manufacturing A1 A3 : 24.627377042415286
    • Water Use M3 Eq Distribution A4 : 0.001830536697345284
    • Water Use M3 Eq Installation A5 : 0.055145170306722245
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 58.94844011171648
    • Water Use M3 Eq End Of Life C1 C4 : 0.46283328791725936
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.8091751997885768
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Packaging Weight In G : 762.3
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Machine ATV340
  • Output Attributes
    • Maximum Output Voltage : 480 V
    • Relay Output Number : 2
    • Speed Drive Output Frequency : 0.1-599 Hz
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=442523107&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1738.07168327026
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI2311030EN
    • Environmental Disclosure : ENVPEP2311030EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP2311030EN
    • Pep Verification Date : 2024-10-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : Indonesia
