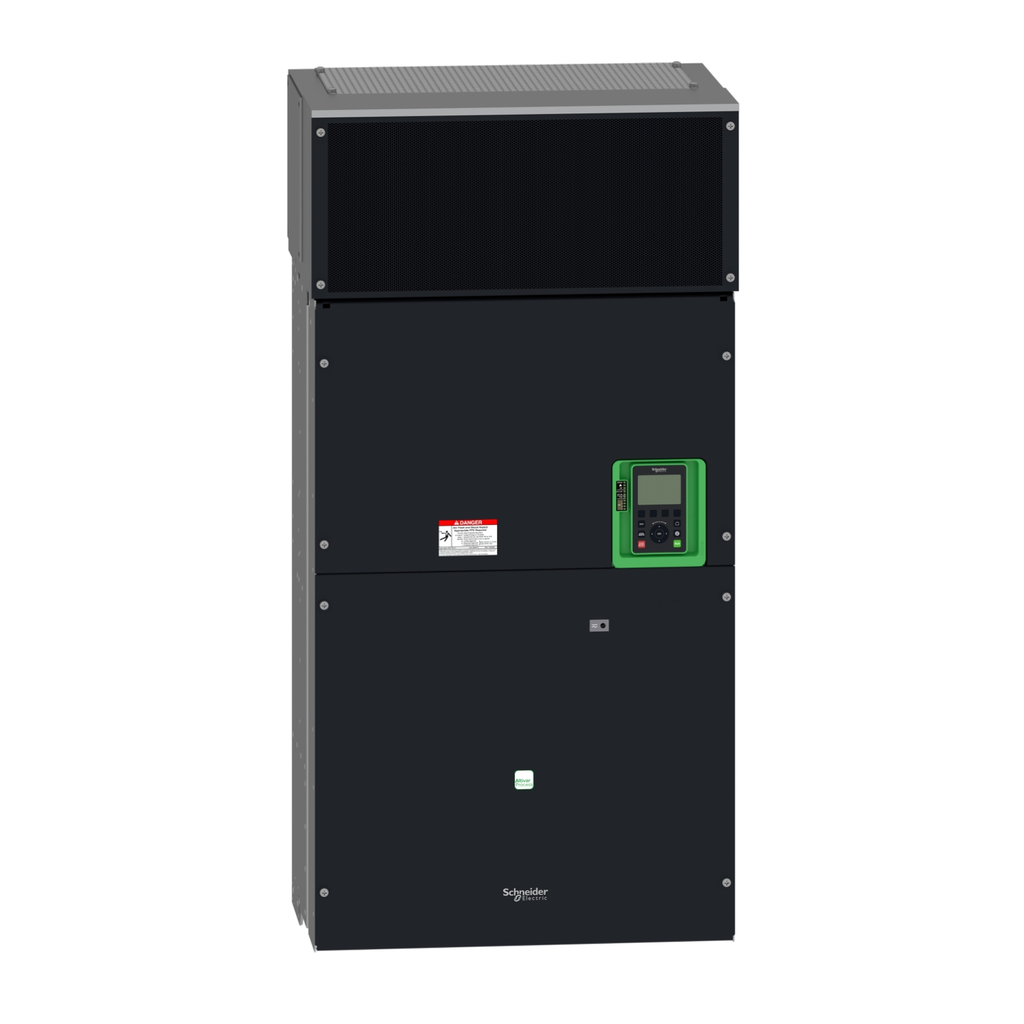

Variable Speed Drive, Altivar Process ATV600, ATV630, 250kW, 400hp, 380 to 480V, IP00

Variable Speed Drive, Altivar Process ATV600, ATV630, 250kW, 400hp, 380 to 480V, IP00

SQDATV630C25N4 ATV630C25N4 3606481154729
27340.58 / EA
http://schema.org/OutOfStock

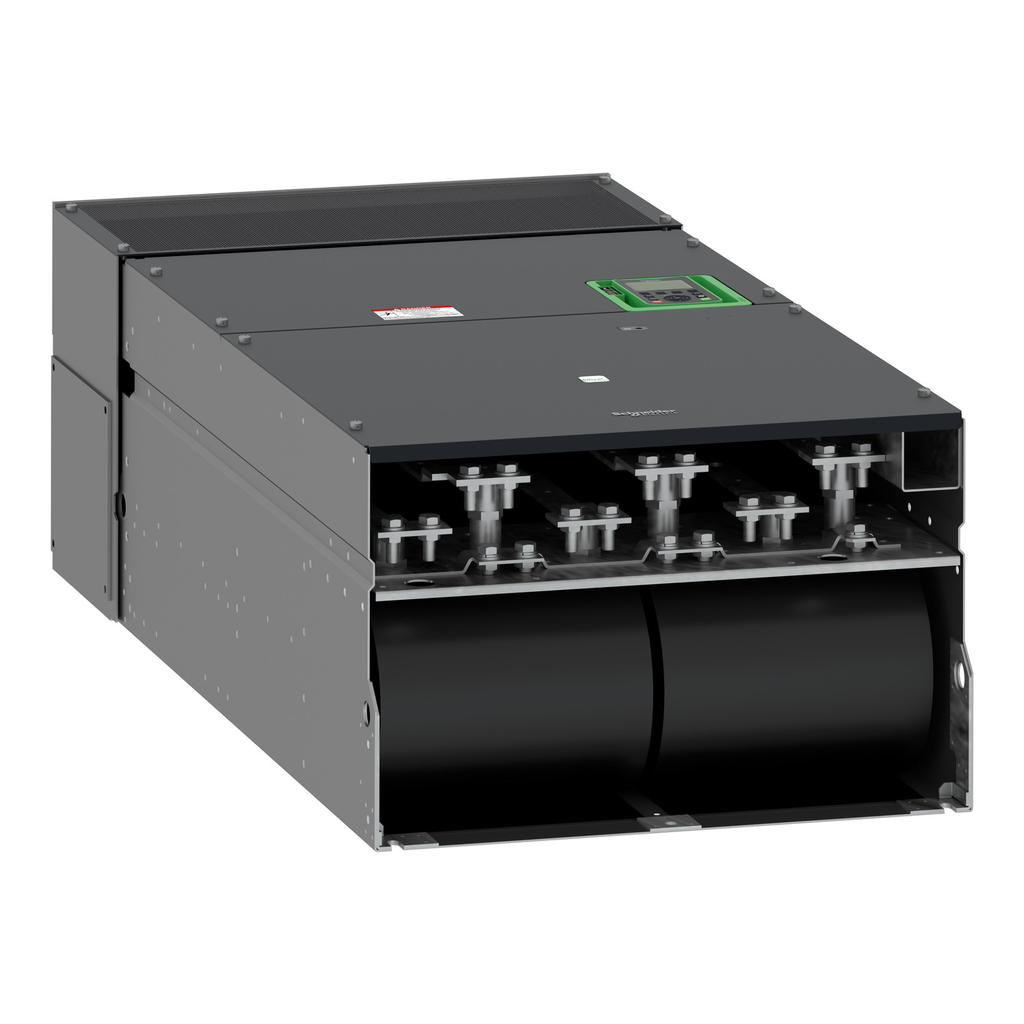

Mayer-DDS-Variable Speed Drive, Altivar Process ATV600, ATV630, 250kW, 400hp, 380 to 480V, IP00-2
  • Country of Origin: India
  • IsSustainable: Yes
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480
  • Insulation Resistance
    • > 1 MOhm 500 V DC for 1 minute to earth
  • Environmental Class During Storage
    • class 1C3 according to EN 60721-3-1
    • class 1S2 according to EN 60721-3-1
  • Power Range
    • 250-500 kW 380-440 V 3 phase
    • 250-500 kW 480-500 V 3 phase
  • Connector Type
    • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • RJ45 on the remote graphic terminal)Modbus serial
    • RJ45 on the remote graphic terminal)
  • US Rated Supply Voltage
    • 380...480 V - 15...10 %
  • Exchange Mode
    • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000971_3D-CAD&p_File_name=MCADID0000971_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000971_3D-CAD&p_File_name=MCADID0000971_2D-back.dwg
    • https://downlo
  • Analogue Input Type
    • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
    • AI1, AI2, AI3 software-configura
  • IP Degree Of Protection
    • IP00IEC 61800-5-1
    • IP00IEC 60529
    • IP21 with kit VW3A9113)IEC 61800-5-1
    • IP21 with kit VW3A9113)IEC 60529
    • IP21 with kit
  • Continuous Output Current
    • 481 A 2.5 kHz normal duty
    • 387 A 2.5 kHz heavy duty
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
    • software-configurable voltage AQ1, AQ2 0...10 V DC 47
  • Carbon Footprint Of The Installation Phase A5
    • 2 kg CO2 eq.
    • 1.7464613501
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 38.1895339321
    • 38 kg CO2 eq.
  • Standards
    • UL 508C
    • IEC 61800-3
    • environment 1 category C2 IEC 61800-3
    • environment 2 category C3 IEC 61800-3
    • IEC 61800-5-1
    • IEC 61000-3-12
    • IEC 60721-3
    • IEC 61508
    • IEC 13849-1
  • Discrete Input Type
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V
  • Electrical Connection
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
    • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 1
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 719 kg CO2 eq.
    • 2719.3152092196
  • Method Of Access
    • slave Modbus TCP
  • Line Current
    • 451 A 380 V normal duty)
    • 366 A 480 V normal duty)
    • 365 A 380 V heavy duty)
    • 301 A 480 V heavy duty)
    • 301 A 48
  • Motor Slip Compensation
    • adjustable
    • can be suppressed
    • not available in permanent magnet motor law
    • automatic whatever the load
  • Maximum Switching Current
    • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
    • relay output R
  • Relay Output Type
    • configurable relay logic R1 fault relay NO/NC 100000 cycles
    • configurable r
  • Input Compatibility
    • DI1...DI6 discrete input level 1 PLC IEC 61131-2
    • DI5, DI6 discrete input level 1 PLC IEC 65A-68
    • DI5, DI6 di
  • Frequency Resolution
    • display unit 0.1 Hz
    • analog input 0.012/50 Hz
  • Protection Type
    • thermal protection motor
    • safe torque off motor
    • motor phase break motor
    • thermal protection drive
    • safe torque off drive
    • overheating drive
  • Supply
    • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    • external supply for digital inputs 24 V DC 19-30 V), <
  • Accessories
    • VW3A9514
    • VW3A9213
    • VW3A1112
    • ZB5AZ905
    • VW3A1115
  • Permissible Temporary Current Boost
    • 1.1 x In 60 s normal duty)
    • 1.5 x In 60 s heavy duty)
  • Sampling Duration
    • 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete input
    • 5 ms +/- 1 ms DI5, DI6) - discrete in
  • Linearity Error
    • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • AO1, AO2 +/- 0.2 % analog output
    • AO1, AO2 +/- 0.2 % anal
  • Environmental Class During Operation
    • class 3C3 according to IEC 60721-3-3
    • class 3S3 according to IEC 60721-3-3
  • Maximum Horse Power Rating
    • 400 hp normal duty
    • 300 hp heavy duty
  • Vibration Resistance
    • 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    • 1 gn (f= 13-200 Hz) con
  • Option Card
    • slot A communication module, Profibus DP V1
    • slot A communication module, PROFINET
    • slot A c
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • System Integrator
  • Motor Power KW
    • 250 kW normal duty)
    • 220 kW heavy duty)
  • Refresh Time
    • relay output R1, R2, R3)5 ms +/- 0.5 ms)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 182 ton CO2 eq.
    • 182075.3031731799
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • radiated radio-frequency electro
  • Supply Frequency
    • 50...60 Hz - 5...5 %
  • Apparent Power
    • 279 kVA 480 V normal duty)
    • 229 kVA 480 V heavy duty)
  • Relative Humidity
    • 5-95 % without condensation IEC 60068-2-3
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • SI
  • Environmental Class During Transport
    • class 2C3 according to EN 60721-3-2
    • class 2S1 according to EN 60721-3-2
  • Number Of Addresses
    • 1-247 Modbus serial
  • Maximum THDI
    • <48 % full load IEC 61000-3-12
  • EMC Filter
    • integrated 50 m IEC 61800-3 category C3
  • Carbon Footprint Of The Distribution Phase A4
    • 27.8013676368
    • 28 kg CO2 eq.
  • Synchronous Motor Control Profile
    • permanent magnet motor
    • synchronous reluctance motor
  • Minimum Switching Current
    • relay output R1, R2, R3 5 mA 24 V DC
  • Operating Altitude
    • <= 3280.84 ft (1000 m) without derating
    • 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
  • Noise Level
    • 68 dB 86/188/EEC
  • Safety Function
    • STO (safe torque off) SIL 3
  • Discrete Input Logic
    • positive logic (source) DI1...DI8), < 5 V, > 11 V
    • negative logic (sink) DI1...DI8), > 16 V, < 10 V
    • negat
  • Asynchronous Motor Control Profile
    • constant torque standard
    • optimized torque mode
    • variable torque standard
  • Discrete Output Type
    • relay outputs R1A, R1B, R1C 250 V AC 3000 mA
    • relay outputs R1A, R1B, R1C 3
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Transient Current
    • 529 A 60 s normal duty)
    • 581 A 60 s heavy duty)
  • Discrete And Process Manufacturing
    • building - HVAC compressor centrifugal
    • food and beverage processing other application
    • mining mineral and metal fan
    • mining mineral and metal
  • Power Dissipation In W
    • forced convection 5773 W
    • natural convection 606 W 380 V 2.5 kHz
  • Local Signalling
    • 3 LEDs for local diagnostic
    • 3 LEDs (dual colour) for embedded communication status
    • 4 LEDs (dual colour) for communic
  • Ambient Air Temperature For Operation
    • -10-40 °C (without derating)
    • 40-60 °C (with derating factor)
  • UE Rated Operational Voltage
    • 380...480 V 250 kW 400 hp normal duty
    • 380...480 V 220 kW 300 hp heavy duty
    • 380...480 V 220 kW 300 hp he
  • Switching Frequency
    • 2.5...8 kHz with derating factor
    • 2...8 kHz adjustable
  • Complementary Attributes
    • Brake Chopper Integrated : false
    • Maximum Input Current Per Phase : 451.0 A
    • Maximum Output Voltage : 480.0 V
    • Maximum Acceleration Under Shock Impact During Operation : 60 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage : 60 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport : 60 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-11
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Manufacturing Carbon Footprint : 2719.3152092196
    • Distribution Carbon Footprint : 27.8013676368
    • Installation Carbon Footprint : 1.7464613501
    • Use Carbon Footprint : 182075.30317318
    • End Of Life Carbon Footprint : 38.1895339321
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1607002EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1629
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 387.0 A
    • Base Load Current At Low Overload : 481.0 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 14100.0 µF
    • Computer Port : true
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV630
    • Enclosure Mounting : wall mounted
    • Housing Material : sheet steel
    • Isolation : between power and control terminals
    • Maximum Input Current Per Phase : 451.0 A
    • Motor Starter Type : variable speed drive
    • Nominal Switching Frequency : 2.5 kHz
    • Number Of Hw Interfaces Industrial Ethernet : 1
    • Number Of Hw Interfaces Other : 0
    • Number Of Hw Interfaces Parallel : 0
    • Number Of Hw Interfaces Profinet : 0
    • Number Of Hw Interfaces Serial Rs232 : 0
    • Number Of Hw Interfaces Serial Rs422 : 0
    • Number Of Hw Interfaces Serial Rs485 : 1
    • Number Of Hw Interfaces Serial Tty : 0
    • Number Of Hw Interfaces Usb : 0
    • Number Of Output Phases : 3
    • Operating Element Present : true
    • Optical Interface Present : false
    • Package Weight Lbs : 227.000 kg
    • Power Loss Per Device Current Dependent : 5983.0 W
    • Power Loss Static Current Independent : 202.0 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Range Of Product : Altivar Process ATV600
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Specific Application : utility
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 185 ton CO2 eq.
    • Variant : standard version
    • Volume Of Cooling Air : 1260 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • EMC Limit Value Complied : true
    • Number Of Inputs Bidirectional Not Potential Free : 0
    • Number Of Inputs Potential Free : 0
    • Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt : false
    • With Safety Function Safe Direction SDI : false
    • With Safety Function Safe Operating Stop Sos : false
    • With Safety Function Safe Position Sp : false
    • With Safety Function Safe Speed Monitor Ssm : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto : true
    • With Safety Function Safely Limited Position Slp : false
    • With Safety Function Safely Limited Speed Sls : false
    • With Sft Fct Safe Stop 2 Ss2 : false
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 184862.3557453185
    • Relationship Type : Compatible relationship
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1607002EN
    • Pep Verification Date : 2017-04-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 215480
    • Functional Unit Description : To control the speed and variate of asynchronous or reluctance electric motor for fluid management and industrial applications during 10 years and a 80% use rate, in accordance with the relevant standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 308386.44
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.1485737603
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.1402775916
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000011125
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000551
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0082943995
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000006017
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1907909.720183567
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 31636.9087266752
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 390.58690436
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 24.7001473878
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1875581.926130221
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 275.5982749229
    • Exported Energy Mj By Energy Vector Total Life Cycle : 9.8614341729
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 9.8614341729
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 4376.97999991
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 4118.5989780989
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 25.8428553807
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 232.5381664303
    • Materials For Energy Recovery Kg Total Life Cycle : 10.979551633
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 4.8708655727
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0.0007275306
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 6.1079585297
    • Materials For Recycling Kg Total Life Cycle : 202.3863900781
    • Materials For Recycling Kg Manufacturing A1 A3 : 25.4528990029
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 11.3572369955
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 165.5762540797
    • Net Use Of Fresh Water M3 Total Life Cycle : 496.6288362613
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 21.6842907241
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0024881545
    • Net Use Of Fresh Water M3 Installation A5 : 0.0021337986
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 474.909421623
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0305019611
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 686871.94099891
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 5790.5611992707
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.9877924866
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0830830194
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 681079.4103365933
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.89858754
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0444227924
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0001895072
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000563
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000001229
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0442312365
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000018695
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 555.5631200556
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.3820214446
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0007035317
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0001306839
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 555.1787005927
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0015638027
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2931499.528190874
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 53292.0982285547
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 372.1173286515
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 26.3375761586
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2877516.02275373
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 292.9523037792
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3196910.865567712
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 54789.8411326446
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 372.6411506516
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 26.3676474216
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3141428.733519363
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 293.2821176312
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 265439.328274285
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1497.9369122381
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.5238705022
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0301876679
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 263940.5144646179
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.322839259
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 255.1013140658
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 255.1013140658
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2931244.407475994
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 53036.9775136741
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 372.1173286515
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 26.3375761586
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2877516.02275373
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 292.9523037792
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 351.067444572
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 351.067444572
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 265088.2705301204
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1146.8791680735
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.5238705022
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0301876679
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 263940.5144646179
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.322839259
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 62.795587368
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 62.795587368
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 8211693.106769244
    • Air Pollution M3 Manufacturing A1 A3 : 399249.3681770095
    • Air Pollution M3 Distribution A4 : 1182.673671416
    • Air Pollution M3 Installation A5 : 192.0098642717
    • Air Pollution M3 Operational Energy Use B6 : 7808946.896927482
    • Air Pollution M3 End Of Life C1 C4 : 2122.1581290657
    • Water Pollution M3 Total Life Cycle : 7871821.220200615
    • Water Pollution M3 Manufacturing A1 A3 : 223924.2046503253
    • Water Pollution M3 Distribution A4 : 4571.8990163639
    • Water Pollution M3 Installation A5 : 205.3382240529
    • Water Pollution M3 Operational Energy Use B6 : 7639900.407098673
    • Water Pollution M3 End Of Life C1 C4 : 3219.3712112004
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 1387.1374865233
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 65.8480867028
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 53.0712529684
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 10.0486520359
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.1269395314
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0054153494
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 1376.8947811352
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0616984713
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 184862.3557453185
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2719.3152092196
    • Global Warming Kg Equivalent Co2 Distribution A4 : 27.8013676368
    • Global Warming Kg Equivalent Co2 Installation A5 : 1.7464613501
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 182075.3031731799
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 38.1895339321
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.7548178018
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0090584344
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.000579871
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 65.0773378443
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0062927513
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 1.4092751885
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.029237998
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0012757976
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 51.6131185738
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0183454105
  • General Attributes
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Maximum Output Voltage : 480.0 V
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=432002719&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 184862.355745318
    • Ambient Air Transport Temperature : -40-70 °C
    • Circularity Profile : ENVEOLI1607002EN
    • Environmental Disclosure : ENVPEP1607002EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
    • Pep Code : ENVPEP1607002EN
    • Pep Verification Date : 2017-04-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • Input Attributes
    • Number Of Input Phases : 3
  • Specifications
    • Country of Origin : India
