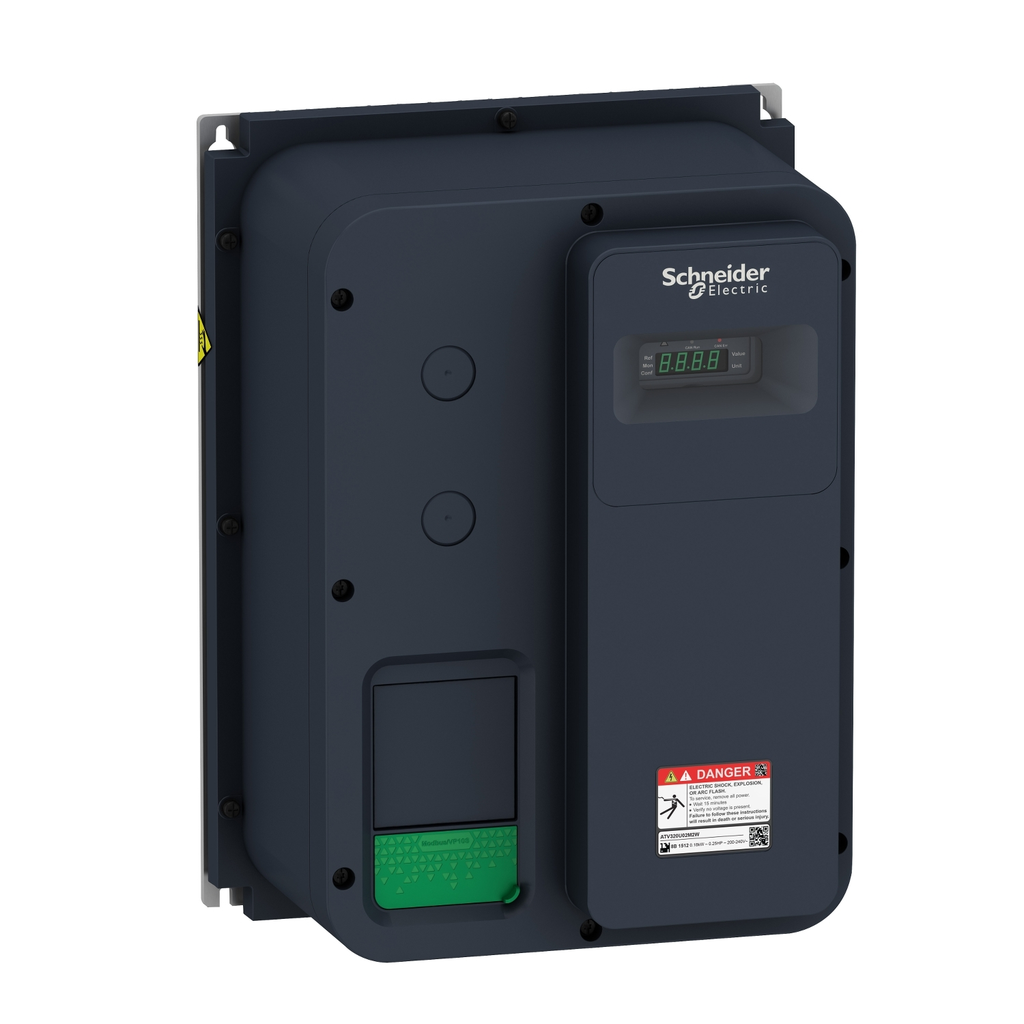

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This drive can feed single phase synchronous and asynchronous motors, and is enclosed for higher IP protection. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 5.1kg and its dimensions are 250mm wide, 340mm high, 182mm deep. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : Indonesia
• Width : 250 mm
• Height : 340 mm
• Weight : 5.1 kg
• Variant : standard version
• Format Of The Drive : enclosed
• Product Or Component Type : variable speed drive
• Ip Degree Of Protection : IP66
• Communication Port Protocol : Modbus serial || CANopen
• Nominal Output Current : 3.3 A
• Product Specific Application : complex machines
• Option Card : communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
• Range Of Product : Altivar Machine ATV320
• Motor Power Kw : 0.37 kW heavy duty
• [Us] Rated Supply Voltage : 200...240 V - 15...10 %
• Mounting Mode : wall mount
• Emc Filter : Class C2 EMC filter integrated
• Environmental data
• Product Contributes To Saved And Avoided Emissions : Yes
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 50.907
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 148 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1147.6305517076
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1908002EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 43a33f8d-56a3-49c6-9248-aafd9c2679ee
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.13531
• Circularity Profile : ENVEOLI1908002EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1094.4326717076
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 1 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Prospective Line Isc : 1 kA
• Network Frequency : 50-60 Hz
• Power Dissipation In W : self-cooled 30 W 200 V 4 kHz
• Line Current : 5.9 A 200 V heavy duty) || 4.9 A 240 V heavy duty)
• Analogue Output Type : software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
• Discrete Output Type : open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
• Asynchronous Motor Control Profile : voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
• Maximum Switching Current : relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
• 4 Quadrant Operation Possible : true
• Relative Symmetric Network Frequency Tolerance : 5 %
• Apparent Power : 1.2 kVA 240 V heavy duty)
• Net Weight : 5.1 kg
• With Safety Function Safe Direction (Sdi) : false
• Relay Output Type : configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
• Switching Frequency : 2...16 kHz adjustable || 4...16 kHz with derating factor
• Analogue Input Number : 3
• Motor Slip Compensation : automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
• Discrete Output Number : 3
• With Safety Function Safe Position (Sp) : false
• Method Of Access : slave CANopen
• With Safety Function Safely Limited Position (Slp) : false
• With Safety Function Safe Operating Stop (Sos) : false
• Discrete Input Number : 7
• With Sft Fct Safe Stop 2 (Ss2) : false
• With Safety Function Safe Stop 1 (Ss1) : true
• Width : 250 mm
• Depth : 182.0 mm
• Analogue Input Type : AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
• Maximum Output Frequency : 0.599 kHz
• With Safety Function Safe Brake Management (Sbc/Sbt) : false
• Height : 340 mm
• Acceleration And Deceleration Ramps : linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
• Maximum Output Voltage : 240 V
• Base Load Current At High Overload : 4.8 A
• With Safety Function Safe Speed Monitor (Ssm) : false
• Transient Overtorque : 170-200 % of nominal motor torque
• With Safety Function Safe Torque Off (Sto) : true
• Analogue Output Number : 1
• Minimum Switching Current : relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
• Discrete Input Logic : positive logic (source) || negative logic (sink)
• With Safety Function Safe Programmable Logic : false
• Brake Chopper Integrated : true
• Nominal Switching Frequency : 4 kHz
• Braking To Standstill : by DC injection
• Discrete Input Type : STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
• Protection Type : input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
• With Safety Function Safely Limited Speed (Sls) : true
• Synchronous Motor Control Profile : vector control without sensor
• Environment
• Product Certifications : CE || ATEX || NOM || GOST || EAC || RCM || KC
• Maximum Deflection Under Vibratory Load (During Operation) : 1.5 mm at 2...13 Hz
• Standards : IEC 61800-5-1
• Regulation Loop : adjustable PID regulator
• Permitted Relative Humidity (During Operation) : class 3K5 according to EN 60721-3
• Overvoltage Category : III
• Environmental Class (During Operation) : class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Maximum Acceleration Under Shock Impact (During Operation) : 150 m/s² at 11 ms
• Pollution Degree : 3
• Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 || conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11
• Ambient Air Temperature For Operation : -10-40 °C without derating || 40-60 °C with derating factor
• Marking : CE || ATEX || UL || CSA || EAC || RCM
• Maximum Acceleration Under Vibrational Stress (During Operation) : 10 m/s² at 13...200 Hz
• Ambient Air Temperature For Storage : -25-70 °C
• Operating Position : vertical +/- 10 degree
• Ambient Air Transport Temperature : -25-70 °C
• Speed Accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn
