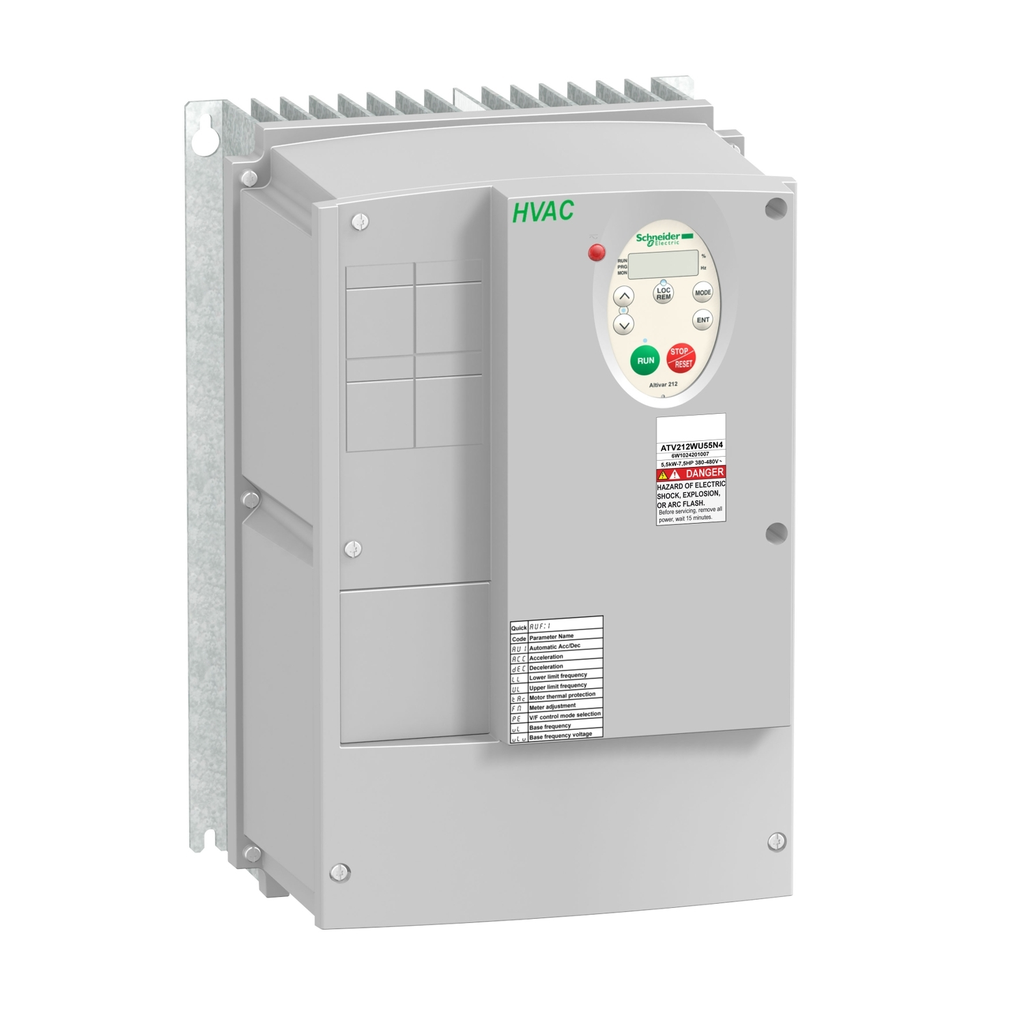

variable speed drive, Altivar 212, 4kW, 5hp, 480V, 3 phases, with EMC class C2, IP55

SPEEDDRIVE 380-480VAC 5HP,ATV

SQDATV212WU40N4 ATV212WU40N4 3606480322693
1387.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar 212, 4kW, 5hp, 480V, 3 phases, with EMC class C2, IP55-1
  • Connection Type: 1 RJ45, 1 Open Style
  • Depth: 208 mm
  • Dielectric Strength: 3535 V, 5092 V
  • IsSustainable: Yes
  • Operating Position: Vertical +/- 10 Degree
  • Warranty Length: 18 mth
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 9.65kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000902_3D-CAD
  • Communications & Management Attributes
    • Communication Port Protocol : Modbus, APOGEE FLN, METASYS N2, BACnet, LonWorks
    • Communication Service : monitoring inhibitable, read holding registers (03) 2 words maximum, time out setting from 0.1 to 100 s, read device identification (43), write multiple registers (16) 2 words maximum, write single register (06)
  • Conformance Attributes
    • Product Certifications : NOM 117, UL, C-tick, CSA
    • Standards : IEC 61800-5-1, IEC 61800-3 environments 1 category C1, IEC 61800-3 environments 1 category C2, IEC 61800-3 environments 1 category C3, IEC 61800-3 environments 2 category C1, IEC 61800-3 environments 2 category C2, IEC 61800-3 environments 2 category C3, CE, UL, CSA, C-Tick N1831, GOST
  • Complementary Attributes
    • Maximum Switching Current : 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R), 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R), 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R), 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
    • Maximum Horse Power Rating : 5 hp
    • Maximum Transient Current : 10 A 60 s
    • Minimum Switching Current : 3 mA 24 V DC configurable relay logic
    • Us Rated Supply Voltage : 380...480 V - 15...10 %
  • Important Information Attributes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2, Yes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Asynchronous Motor Control Profile : flux vector control without sensor, standard, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), voltage/frequency ratio, 5 points, voltage/frequency ratio, 2 points, voltage/frequency ratio - Energy Saving, quadratic U/f
    • Connector Type : 1 RJ45, 1 open style
    • Dielectric Strength : 3535 V DC between earth and power terminals, 5092 V DC between control and power terminals
    • Electrical Connection : VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14, L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
    • Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    • Environmental Characteristic : classes 3C1 conforming to IEC 60721-3-3, classes 3S2 conforming to IEC 60721-3-3
    • Frequency Resolution : display unit 0.1 Hz, analog input 0.024/50 Hz
    • Insulation Resistance : >= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute
    • Line Current : 6.4 A 480 V, 8.1 A 380 V
    • Linearity Error : VIA +/- 0.15 % of maximum value input, VIB +/- 0.15 % of maximum value input, FM +/- 0.2 % output
    • Motor Slip Compensation : not available in voltage/frequency ratio motor control, adjustable, automatic whatever the load
    • Protection Type : overheating protection drive, thermal power stage drive, short-circuit between motor phases drive, input phase breaks drive, overcurrent between output phases and earth drive, overvoltages on the DC bus drive, break on the control circuit drive, against exceeding limit speed drive, line supply overvoltage and undervoltage drive, line supply undervoltage drive, against input phase loss drive, thermal protection motor, motor phase break motor, with PTC probes motor
    • Response Time : FM 2 ms +/- 0.5 ms analog, FLA, FLC 7 ms +/- 0.5 ms discrete, FLB, FLC 7 ms +/- 0.5 ms discrete, RY, RC 7 ms +/- 0.5 ms discrete
    • Sampling Duration : 2 ms +/- 0.5 ms F discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms RES discrete, 3.5 ms +/- 0.5 ms VIA analog, 22 ms +/- 0.5 ms VIB analog
    • Speed Accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
    • Supply : internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection, internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
    • Switching Frequency : 6...16 kHz adjustable, 12...16 kHz with derating factor
    • Tightening Torque : 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T), 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
    • Type Of Cable : without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR, without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC, with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
    • Vibration Resistance : 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8
    • Medium Desc : variable speed drive, Altivar 212, 4kW, 5hp, 480V, 3 phases, with EMC class C2, IP55
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : Altivar 212 VFD5 HPContinuous Output Current: 9.1 ampsAC Line Input Line Voltage: 380/480 VAC Three Phase Input/OutputEnclosure Rating: Type 12 Enclosure RatingThe Alitvar 212 drive includes: 3 logic inputs2 analog inputs1 analog output2 relay outputs (with 1 NO and 1 NO/NC contacts)Integrated 4 digit, 7-segment LED display with a 7 button keypadRJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocolsLonWorks is available in an option card
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI111234EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Apparent Power : 6.9 kVA 380 V
    • Assembly Style : with heat sink
    • Braking To Standstill : by DC injection
    • Data Format : 8 bits, 1 stop, odd even or no configurable parity
    • Device Short Name : ATV212
    • Emc Filter : Class C2 EMC filter integrated
    • Functionality : mid
    • Isolation : electrical between power and control
    • Local Signalling : 1 LED (red) for DC bus energized
    • Marking : CE
    • Motor Power Kw : 4 kW
    • Network Frequency : 47.5...63 Hz
    • Noise Level : 55 dB 86/188/EEC
    • Nominal Switching Frequency : 12 kHz
    • Number Of Addresses : 1-247
    • Operating Position : vertical +/- 10 degree
    • Option Card : communication card LonWorks
    • Phase : 3 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Destination : asynchronous motors
    • Product Or Component Type : variable speed drive
    • Product Specific Application : pumps and fans in HVAC
    • Prospective Line Isc : 5 kA
    • Range Of Product : Altivar 212
    • Regulation Loop : adjustable PI regulator
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Specific Application : HVAC
    • Speed Range : 1-10
    • Supply Frequency : 50...60 Hz - 5...5 %
    • Supply Voltage Limits : 323-528 V
    • Sustainable Packaging : No
    • Torque Accuracy : +/- 15 %
    • Transient Overtorque : 120-120 % of nominal motor torque +/- 10 % 60 s
    • Transmission Frame : RTU
    • Transmission Rate : 9600 bps or 19200 bps
    • Type Of Polarization : no impedance
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Motor Power Kw 11 N Motor Power Kw : 4 kW
    • Motor Power Hp 13 : 5 hp
    • Pep Code : ENVPEP1112028EN
    • Height Nominal : 340 mm
    • Width Nominal : 230 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-40 °C (without derating), -10-40 °C (without derating), -10-40 °C (without derating), -10-40 °C (without derating), 40-50 °C (with derating factor)
    • Ip Degree Of Protection : IP55, IP55 IEC 61800-5-1, IP55 IEC 60529
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    • Relative Humidity : 5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI111234EN
    • Environmental Disclosure : ENVPEP1112028EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP1112028EN
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar 212
  • ETIM
    • ETIM 8 : EC001857
    • ETIM 9 : EC001857
  • Output Attributes
    • Analogue Output Type : FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits, FM switch-configurable current 0...20 mA 970 Ohm 10 bits
    • Continuous Output Current : 9.1 A 380 V, 9.1 A 460 V
    • Discrete Output Type : configurable relay logic FLA, FLC) NO - 100000 cycles, configurable relay logic FLB, FLC) NC - 100000 cycles, configurable relay logic RY, RC) NO - 100000 cycles
    • Analogue Output Number : 1
    • Discrete Output Number : 2
    • Output Voltage : <= power supply voltage
    • Speed Drive Output Frequency : 0.5-200 Hz
  • Surge Protection And Filtering Attributes
    • Emc Filter : Class C2 EMC filter integrated
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Analogue Input Type : VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits, VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits, VIB configurable PTC probe 0...6 probes 1500 Ohm, VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
    • Discrete Input Logic : positive logic (source) F, R, RES), <= 5 V, >= 11 V, negative logic (sink) F, R, RES), >= 16 V, <= 10 V
    • Discrete Input Type : F programmable 24 V DC level 1 PLC 4700 Ohm, R programmable 24 V DC level 1 PLC 4700 Ohm, RES programmable 24 V DC level 1 PLC 4700 Ohm
    • Analogue Input Number : 2
  • Specifications
    • Depth : 208 mm
