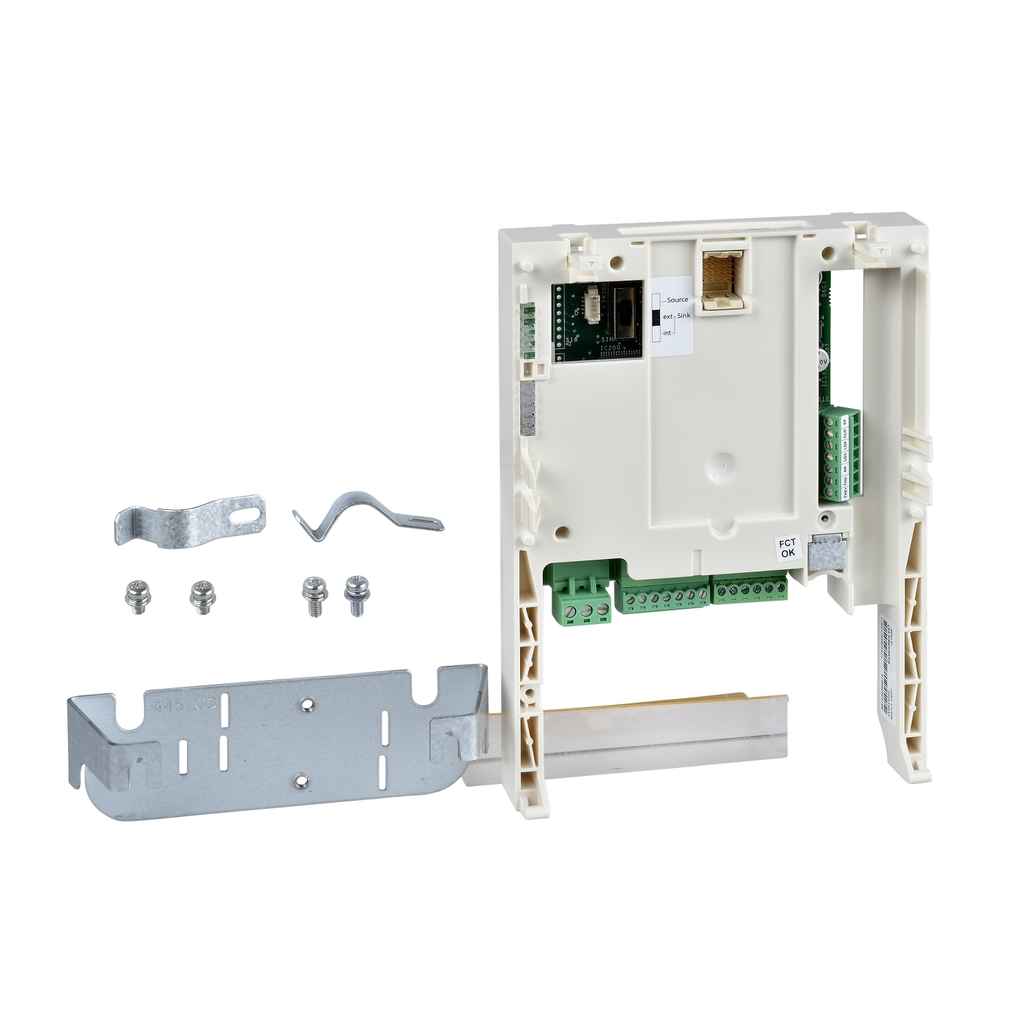

This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Switching Current : configurable relay logic 1.5 A 30 V DC inductive, cos phi = 0.4 7 msconfigurable relay logic 5 A 250 V AC resistive, cos phi = 1, configurable relay logic 5 A 30 V DC resistive, cos phi = 1, configurable relay logic 1.5 A 250 V AC inductive, cos phi = 0.4 7 ms
• Maximum Output Current : 0.2 A, assignable logic
• Minimum Switching Current : 3 mA 24 V DC configurable relay logic
• Important Information Attributes
• Supply : internal supply for reference potentiometer, 10.5 V DC 10-11 V) , <0.01 A 1-10 kOhm overload and short-circuit protection, internal supply, 24 V DC 21-27 V) , <0.2 A overload and short-circuit protection
• Carbon Footprint Of The Distribution Phase A4 : 0.0500602553, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.207604766
• Carbon Footprint Of The Installation Phase A5 : 0.0076331983, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 27 kg CO2 eq., 27.3795914894
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 483 kg CO2 eq., 2482.6
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Use Carbon Footprint : 2482.6
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1929
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Electrical Connection : terminal, 1.5 mm² / AWG 16, 0.25 N.m
• Electrical Durability : 100000 cycles configurable relay logic
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : extended I/O card
• Returnability : Yes
• Software Version : EIME v5.9.3
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 510 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP2010015EN
• Database Version : 2020-12
• Pep Verification Date : 2022-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Program and control the variable speed drive for 10 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 4204.8
• Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
• Energy Model - Installation [A5] : Electricity Mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity Mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; AC; < 1kV; EU-27
• Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6] : 18.774
• Air Pollution (M3) Operational Energy Use [B6] : 106470
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 25574
• Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 2482.6
• Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 6.4753
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 9286.2
• Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6] : 7.5698
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 46697
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 50295
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 3598.8
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 46697
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 3598.8
• Water Pollution (M3) Operational Energy Use [B6] : 104170
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2510.2448897089
• Environmental Disclosure : ENVPEP2010015EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2010015EN
• Pep Verification Date : 2022-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : extended I/O card
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Output Attributes
• Analogue Output Type : AO3 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bitsAO2 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits, AO2 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits, AO3 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits
• Discrete Output Logic : LO3, LO4) negative, LO3, LO4) positive
• Discrete Output Type : LO3, LO4) assignable logic 4-6 ms level 1 PLC, R4A, R4B, R4C) configurable relay logic
• Analogue Output Number : 2
• Discrete Output Number : 5
• Discrete Output Voltage : 24 V DC <= 30 V) assignable logic
• Maximum Output Current : 0.2 A, assignable logic
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : AI3-/Al3+ differential current programmable 0...20 mA 250 Ohm 4-6 ms 11 bits + sign, AI4 software-configurable current 0...20 mA 250 Ohm 4-6 ms 11 bits, AI4 software-configurable voltage 0...10 V DC, 24 V max 30000 Ohm 4-6 ms 11 bits
• Discrete Input Logic : negative LI11...LI14), >= 16 V, <= 10 V, positive LI11...LI14), <= 5 V, >= 11 V, positive RP), < 1.2 V, >= 3.5 V
• Discrete Input Type : RP) frequency control 4-6 ms, LI11...LI14) programmable level 1 PLC 3.5 kOhm 4-6 ms
• Ptc Probe Input : TH2+, TH2- trip resistance 3 kOhm, TH2+, TH2- reset resistance 1.8 Ohm, TH2+, TH2- short circuit protection < 0.05 Ohm, TH2+, TH2- for 6 PTC probe <= 1.5 Ohm
• Analogue Input Number : 2
• Discrete Input Frequency : 0...30 kHz frequency control
• Discrete Input Number : 6
• Discrete Input Voltage : 24 V DC <= 30 V)programmable
• Specifications
• Country of Origin : Brazil
