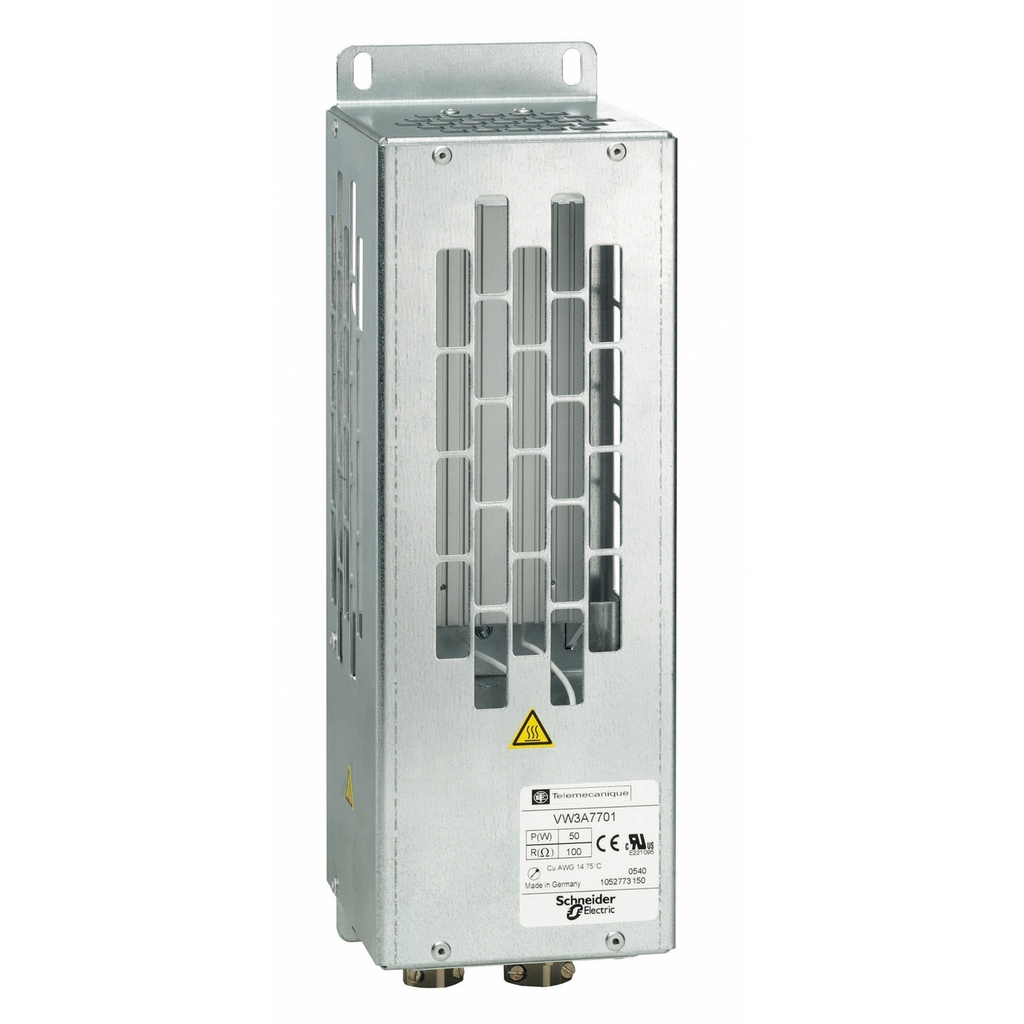

This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 1.9kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

• Features
• Enable maximum transient braking torque
• Designed for machines with high inertia, driving loads, and machines with fast cycles
• Thermal protection via temperature-controlled switch or thermal overload relay
• Terminal electrical connection
• IP20 degree of protection
• Wide range of operating temperature from 0°C to 50°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Average Power Available : 50 W 50 °C, 58 W 40 °C
• Electrical Connection : terminal <= 1.5 mm² / AWG 16 temperature control switch, terminal <= 4 mm² / AWG 28 drive
• Ue Rated Operational Voltage2 : 24 V DC 0.1 A, 250 V AC 1 A
• Ue Rated Operational Voltage5 : 24 V DC 0.1 A, 250 V AC 1 A
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Contact Resistance : 60 µOhm
• Ohmic Value : 100 Ohm
• Package Weight Lbs : 1.957 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Protection Type : thermal protection via drive or temperature control switch 120 °C
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Medium Desc : braking resistor, Altivar, IP20, 100Ohm, 50W
• Stocking Flag : N
• Product Kit Identifier : N
• Global Commercial Status : End of commerc. announced
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : ATV31C018M2, ATV31C037M2, ATV31C037N4, ATV31C055M2, ATV31C055N4, ATV31C075M2, ATV31C075N4, ATV31CU11M2, ATV31CU11N4, ATV31CU15M2, ATV31CU15N4, ATV31CU22N4, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 2.2 kW, ATV31CU30N4, ATV31CU40N4, variable speed drive ATV310 3 kW, variable speed drive ATV310 4 kW, ATV12H018F1, ATV12H018M2, ATV12H018M3, ATV12H037F1, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075F1, ATV12H075M2, ATV12H075M3, ATV12HU15M2, ATV12HU15M3, ATV12P037F1, ATV12P037M2, ATV12P037M3, ATV12P055M2, ATV12P075M2, ATV12P075M3, ATV12PU15M3, ATV312H018M2, ATV312H018M3, ATV312H037M2, ATV312H037M3, ATV312H037N4, ATV312H055M2, ATV312H055M3, ATV312H055N4, ATV312H075M2, ATV312H075M3, ATV312H075N4, ATV312HU11M2, ATV312HU11M3, ATV312HU11N4, ATV312HU15M2, ATV312HU15M3, ATV312HU15N4, ATV312HU22N4, ATV312HU30N4, ATV312HU40N4, ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11M2, ATV32HU11N4, ATV32HU15M2, ATV32HU15N4, ATV32HU22N4, ATV32HU30N4, ATV32HU40N4, ATV61H075M3, ATV61H075N4, ATV61HU15N4, ATV61HU22N4, ATV61HU30N4, ATV61HU30Y, ATV61HU40N4, ATV61HU40Y, ATV61HU55Y, ATV61HU75Y, ATV61W075N4, ATV61W075N4C, ATV61WU15N4, ATV61WU15N4C, ATV61WU22N4, ATV61WU22N4C, ATV61WU30N4, ATV61WU30N4C, ATV61WU40N4, ATV61WU40N4C, ATV61WU55N4, ATV61WU55N4C, ATV71H037M3, ATV71H075M3, ATV71H075N4, ATV71HU15N4, ATV71HU22N4, ATV71HU22Y, ATV71HU30N4, ATV71HU30Y, ATV71HU40N4, ATV71HU40Y, ATV71HU55Y, ATV71P075N4Z, ATV71PU40N4Z, ATV71W075N4, ATV71WU40N4, ATV71PU15N4Z, ATV71PU22N4Z, ATV71WU15N4, ATV71WU22N4, ATV71PU30N4Z, ATV71WU30N4
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-70 °C
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Range Of Product : Altivar
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, United States
• Depth : 95 mm
