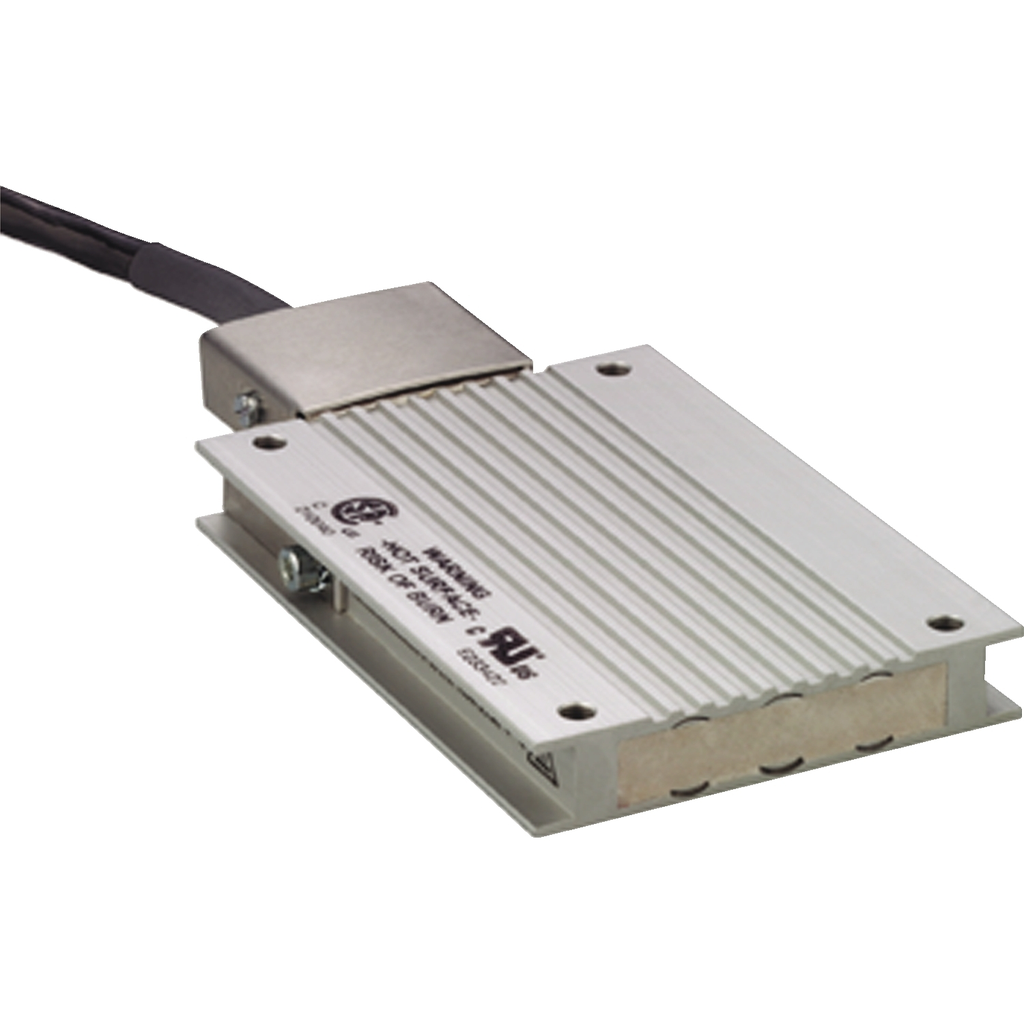

This braking resistor is an option for variable speed drives of Altivar range and Lexium motion servio drives. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms and a cable length of 0.75m. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP65. It weighs 0.41kg. This resistor is designed to be mounted on the outside of the enclosure.

• Environment
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-85 °C
• Ip Degree Of Protection : IP65
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Pvc Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Continuous Power : 100 W
• Cable Length : 0.75 m
• Net Weight : 0.41 kg
• Protection Type : thermal protection via the servo drive
• Energy Peak : 2700 J 480 V || 3000 J 400 V || 4500 J 230 V || 4400 J 115 V
• Average Power Available : 25 W 50 °C
• Specifications
• Ohmic Value : 100 Ohm
• Range Of Product : Altivar || Lexium
• Product Compatibility : ATV32H018M2 || ATV32H037M2 || ATV32H037N4 || ATV32H055M2 || ATV32H055N4 || ATV32H075M2 || ATV32H075N4 || ATV32HU11N4 || ATV32HU15N4 || ATV32HU22N4 || variable speed drive ATV320 0.18 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 200...240 V, single phase || variable speed drive ATV320 0.55 kW, 200...240 V, single phase || variable speed drive ATV320 0.75 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 380...500 V, three phase || variable speed drive ATV320 0.55 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 380...500 V, three phase || variable speed drive ATV320 1.1 kW, 380...500 V, three phase || variable speed drive ATV320 1.5 kW, 380...500 V, three phase || variable speed drive ATV320 2.2 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 525...600 V, three phase || variable speed drive ATV320 1.5 kW, 525...600 V, three phase || variable speed drive ATV320 2.2 kW, 525...600 V, three phase || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW || motion servo drive LXM16D 0.1 kW, 200...230 V, single phase || motion servo drive LXM16D 0.2 kW, 200...230 V, single phase || motion servo drive LXM16D 0.4 kW, 200...230 V, single phase || motion servo drive LXM16D 0.75 kW, 200...230 V, single phase || motion servo drive LXM16D 1 kW, 200...230 V, single phase || motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
• Product Or Component Type : braking resistor
• Range Compatibility : Altivar 32 || Lexium 15 || Lexium 32 || Lexium 32i || Altivar Machine ATV320 || Lexium 52 || Easy Altivar 310L || Easy Lexium 16
