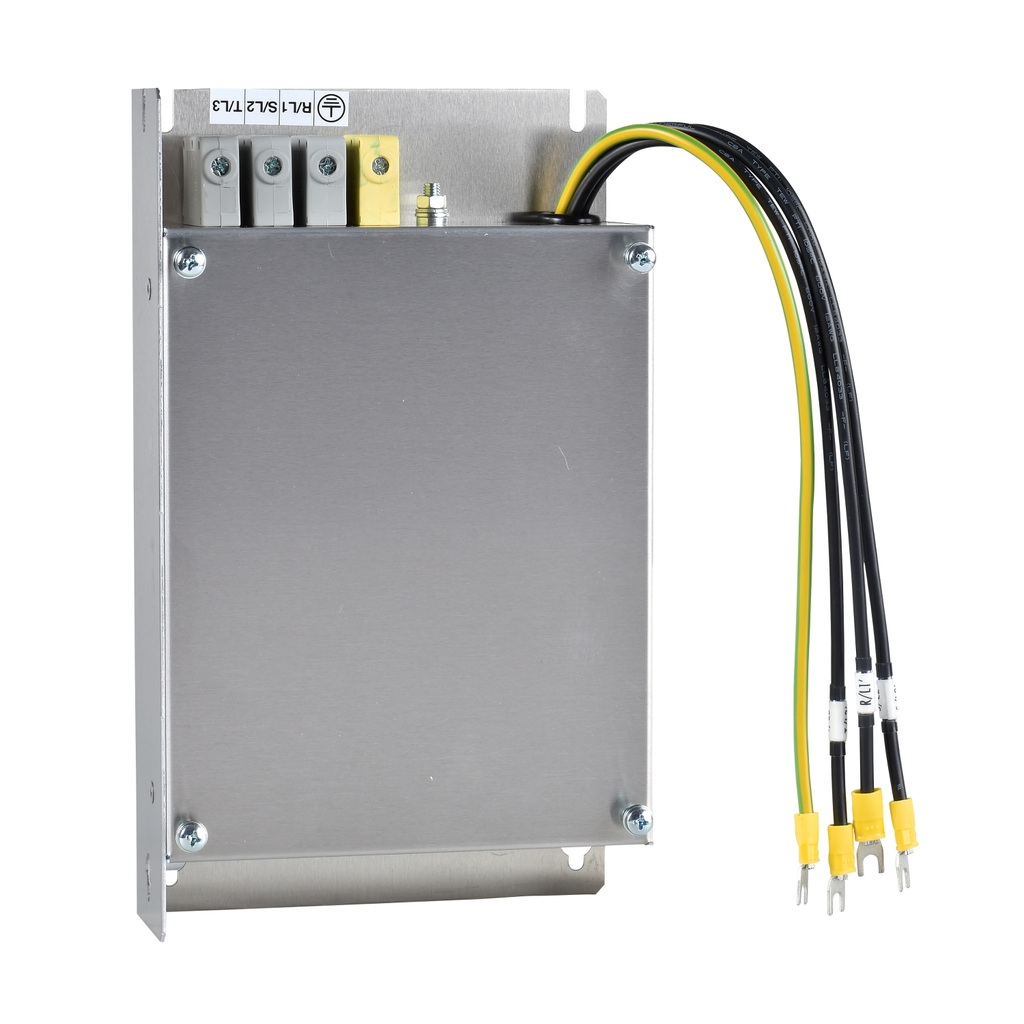

This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 47A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 3.15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Features
• Enable the drives to meet more stringent requirements
• Reduce conducted emissions on the supply mains
• Conforms to standard IEC 61800-3 category C1 or C6
• Save space with drive mounting onto the filter.

• Conformance Attributes
• Standards : IEC 61800-3
• Complementary Attributes
• Network Rated Voltage : 200-240 V, 380-500 V
• Line Rated Current : 47 A
• Important Information Attributes
• Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
• Earth Leakage Current : 45 mA 50 Hz, 20.6 mA 480 V 60 Hz, 42.8 mA 480 V 60 Hz
• Thermal Losses : 1.9 W ATV21HU75N4, 19.3 W ATV31CU55N4, 3.7 W ATV21HU55M3X, 3.9 W ATV21HD11N4, 6.8 W ATV21HU75M3X
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Compatibility Code : LXM23
• Electrical Connection : terminal 25 mm² AWG 2
• Package Weight Lbs : 3.001 kg
• Phase : three phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : EMC input filter
• Product Specific Application : radio interference input filter
• Range Of Product : Altivar
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Sustainable Packaging : No
• Tightening Torque : 4.5 N.m
• Medium Desc : additionnal EMC input filter - 3-phase supply - 47 A
• Stocking Flag : N
• Product Kit Identifier : N
• Tolerance : 10 %
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• Ambient Air Temperature For Operation : -10-50 °C, -10-50 °C
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20, IP41 upper part)
• Operating Altitude : <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
• Product Compatibility : variable speed drive ATV320...C7.5 kW, 200...240 V three phase, servo drive LXM237.5 kW, ATV212HD11N4, ATV212HU55M3X, ATV212HU75M3X, ATV212HU75N4, ATV31CU55N4, ATV31CU75N4, LXM05AD57N4, LXM05BD57N4, LXM05CD57N4, ATV312HU55M3, ATV312HU75M3, ATV312HU55N4, ATV312HU75N4, variable speed drive ATV320...C5.5 kW, 200...240 V three phase
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -25-70 °C
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-93 % IEC 68-2-3
• General Attributes
• Phase : three phase
• Product Or Component Type : EMC input filter
• Range Of Product : Altivar
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Thailand
