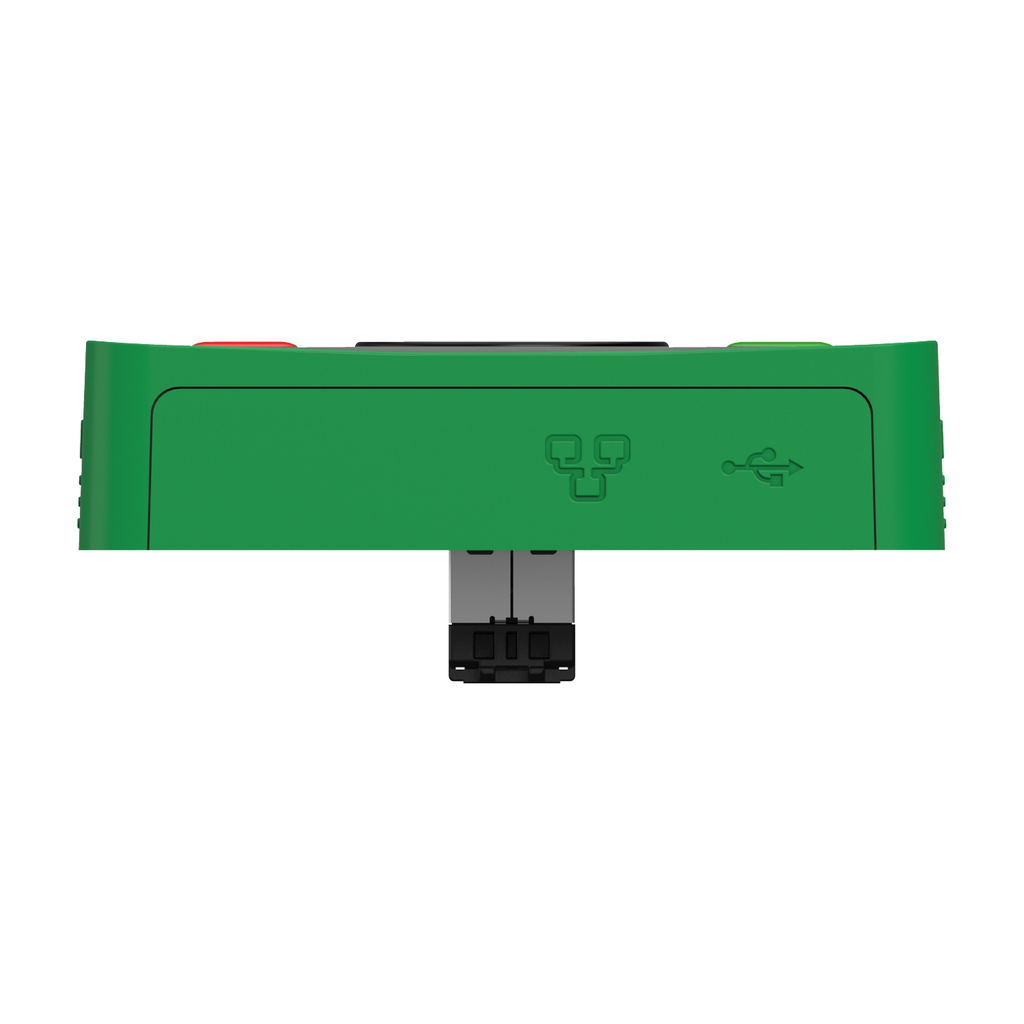

This graphic terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory, it also can be connected to a PC to exchange files or to several drives in multidrop mode. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels and 8 lines of display. It weighs 200g. It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added). It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc.), save and download configurations (several configurations can be saved in the 16MB memory). A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory, to be ordered separately.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
• Product Specific Application : to control, adjust and configure the drive, to save and download configurations, to display the current values
• User Language : Spanish, Romanian, Turkish, Polish, Swedish, Estonian, Bulgarian, English, Russian, Greek, Danish, Hungarian, Chinese, Norwegian, Lituanien, French, Brazilian, German, Korean, Portuguese, Finnish, Czech, Slovak, Taiwanese, Dutch, Italian, Ukrainian
• Carbon Footprint Of The Distribution Phase A4 : 0.033159, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1298
• Carbon Footprint Of The Installation Phase A5 : 0.0042487, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 34 kg CO2 eq., 34.087
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 70 kg CO2 eq., 69.552
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 34.087
• Use Carbon Footprint : 69.552
• End Of Life Carbon Footprint : 0.1298
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2010012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2005
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Display Type : backlit LCD screen white and red
• Messages Display Capacity : 8 lines
• Pixel Resolution : 240 x 160
• Product Availability : Stock - Normally stocked in distribution facility
• Range Of Product : Altivar
• Realtime Clock : built-in
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 104 kg CO2 eq.
• Accessory Separate Part Category : display and signalling accessories
• Accessory Separate Part Destination : variable speed drive
• Accessory Separate Part Type : display terminal
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 103.81
• Warranty In Months : 18
• Pep Code : ENVPEP2010012EN
• Database Version : 2016-11
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : This terminal allow to control, set and configure the variator, display current values and to save and download the configurations. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
• Energy Model - Installation [A5] : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
• Energy Model - Use [B6] : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
• Recyclability Potential, In % : 7
• Air Pollution (M3) Total Life Cycle : 6177
• Air Pollution (M3) Manufacturing [A1-a3] : 3198.2
• Air Pollution (M3) Distribution [A4] : 1.4105
• Air Pollution (M3) Operational Energy Use [B6] : 2974.5
• Air Pollution (M3) End Of Life [C1-c4] : 2.8011
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle : 1211.5
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 421.93
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 788.77
• Global Warming (Kg.Equivalent.Co2) Total Life Cycle : 103.81
• Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] : 34.087
• Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 69.552
• Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4] : 0.1298
• Hazardous Waste Disposed Of (Kg) Total Life Cycle : 31.187
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 30.734
• Materials For Recycling (Kg) Total Life Cycle : 0.1091
• Net Use Of Fresh Water (M3) Total Life Cycle : 251.95
• Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 0.531
• Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 251.42
• Non-hazardous Waste Disposed Of (Kg) Total Life Cycle : 265.55
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 6.2975
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 259.25
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 1676.6
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 467.73
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 0.0554
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 1208
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 1863.1
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 477.26
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 1385
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 186.5
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 9.5295
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 176.97
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 4.0657
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 4.0657
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 1672.6
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 463.67
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 0.0554
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1208
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 1.561
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 1.561
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 184.94
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 7.9685
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 176.97
• Water Pollution (M3) Total Life Cycle : 5024.4
• Water Pollution (M3) Manufacturing [A1-a3] : 2137.7
• Water Pollution (M3) Distribution [A4] : 5.4529
• Water Pollution (M3) Operational Energy Use [B6] : 2874.1
• Water Pollution (M3) End Of Life [C1-c4] : 6.547
• Environment Attributes Main
• Ambient Air Temperature For Operation : -15-60 °C, -15-60 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 103.81
• Circularity Profile : ENVEOLI2010012EN
• Environmental Disclosure : ENVPEP2010012EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2010012EN
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Range Of Product : Altivar
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Specifications
• Country of Origin : France, Indonesia, Singapore, United States
• Batteries & Runtime Attributes
• Removable Battery : Yes
• Battery Life : 10 year(s)
• Battery Size : CR2032
